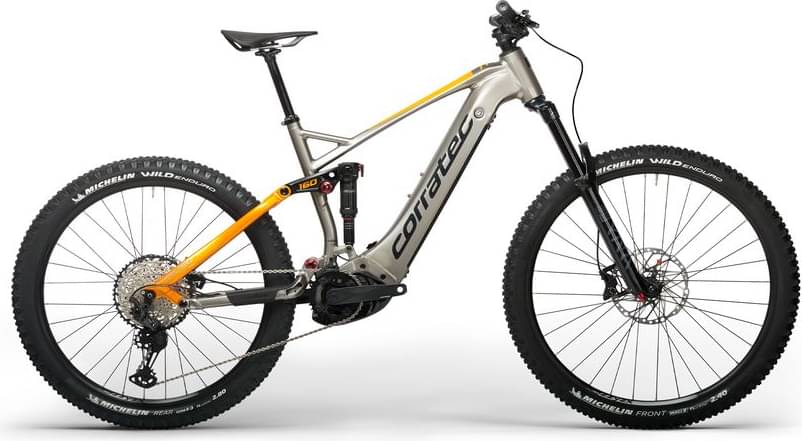

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Fork RockShox Yari RC
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power RS 160 Boost
Suspension Fork
SRAM Yari Motion Control RC 29" , Suspension travel: 160 mm
Rear Shock
Rockshox Deluxe Select
Drivetrain
Rear Derailleur
Shimano DEORE XT 12S
Shift Levers
Shimano DEORE SLX
Cassette
Shimano DEORE SLX 12S , Number of pinions; Ratio: 12s; 10 12 14 16 18 21 24 28 33 39 45 51
Crank
ZZYZX E-Power Crank , Number of chainrings; Ratio: 1s; 34
Wheels
Rims
ZZYZX Cross Attack 29 Boost front , Rim outer diameter: 29.00 zoll, Type of tires: clincher, ZZYZX Cross Attack 650B Boost rear , Rim outer diameter: 27.50 zoll, Type of tires: clincher
Tires
Michelin Wild Enduro TLR 29 front , Inside diameter: 29.00 zoll, Type of tires: clincher, Width: 2.4 inch, Michelin Wild Enduro TLR 650B rear , Inside diameter: 27.50 zoll, Type of tires: clincher, Width: 2.8 inch
Brakes
Brakes
Shimano MT420 front , Size brake disc: 203 mm, Shimano MT420 rear , Size brake disc: 203 mm
Cockpit
Stem
ZZYZX SL Alloy
Handlebar
ZZYZX SL Alloy Handlebar , Width: 800mm
Seat
Saddle
Selle Italia Model X
Seatpost
Kindshock 900i , Outer diameter: 31.6 mm
Motor & Battery
Motor
BOSCH Performance Line CX , No path too steep, no challenge too great: the Performance Line CX is made for anyone for whom the trail is a second home. eMTB mode will always give you the power you need at precisely the right moment. Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J), Max. support of 340% For powerful propulsion, an extremely sporty riding style and fast sprints. Weight of just approximately 2,9 Kg.
Battery
BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 42cm | 47cm | 52cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.432 mm | 1.393 mm | 1.35 mm |
| Stack | 627 mm | 617 mm | 627 mm | 636 mm |
| Reach | 415 mm | 431 mm | 450 mm | 471 mm |
| Top Tube Length | 595 mm | 608 mm | 630 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 130 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1214 mm | 1225 mm | 1249 mm | 1274 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
E-Power RS 160 Pro completes the Corratec E E Power model. Corratec launched 97 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
Corratec E-Power RS 160 Pro 2022 e-bike is equipped with the RockShox Yari RC fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on E-Power RS 160 Pro are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Dropper post
The Corratec model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
