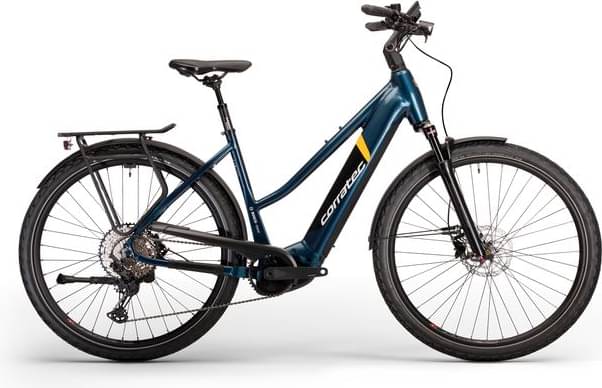

corratec E-Power Sport 28 SE 3.0 CX7 12S Trapez 2023
2023 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset GX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power Sport 28 Trapez
Suspension Fork
SR Suntour Mobie AIR LOR , Suspension travel: 100 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle 12S
Shift Levers
SRAM GX Eagle 12-Speed
Cassette
SRAM CS PG1230 11-50T , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
ZZYZX E-Power Crank , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
Corratec Sport HD front , Rim outer diameter: 29.00 zoll, Corratec Sport HD rear , Rim outer diameter: 29.00 zoll
Tires
Schwalbe Land Cruiser front , Schwalbe Land Cruiser rear
Brakes
Brakes
Shimano Disc Brake MT200 front , Size brake disc: 180 mm, Shimano Disc Brake MT200 rear , Size brake disc: 180 mm
Cockpit
Stem
Corratec ICR System
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Selle Royal Ariel Ladies
Seatpost
ZZYZX Suspension Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
Model Overview
E-Power Sport 28 SE 3.0 CX7 12S Trapez is a Corratec E E Power model. There are 97 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the E-Power Sport 28 SE 3.0 CX7 12S Trapez e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Corratec E-Power Sport 28 SE 3.0 CX7 12S Trapez is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
