Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power Trekking 28
Suspension Fork
Suntour NEX-E25P 700C , Suspension travel: 63 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 12S , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM PG1210 Eagle , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX Trekking 29er Disc front , Rim outer diameter: 29.00 zoll, Type of tires: clincher, ZZYZX Trekking 29er Disc rear , Rim outer diameter: 29.00 zoll, Type of tires: clincher
Tires
Schwalbe Energizer Active Plus front , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher, Schwalbe Energizer Active Plus rear , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher
Brakes
Brakes
Shimano MT 200 front , Size brake disc: 180 mm, Shimano MT200 rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Trekking Handlebar
Seat
Seatpost
ZZYZX Alloy Seatpost
Motor & Battery
Motor
BOSCH Performance Line CX , No path too steep, no challenge too great: the Performance Line CX is made for anyone for whom the trail is a second home. eMTB mode will always give you the power you need at precisely the right moment. Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J), Max. support of 340% For powerful propulsion, an extremely sporty riding style and fast sprints. Weight of just approximately 2,9 Kg.
Battery
BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Stack Reach Ratio | 1.612 mm | 1.623 mm | 1.633 mm |
| Stack | 653 mm | 667 mm | 681 mm |
| Reach | 405 mm | 411 mm | 417 mm |
| Top Tube Length | 605 mm | 615 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1137 mm | 1148 mm | 1159 mm |
| Wheels | 29" | 29" | 29" |

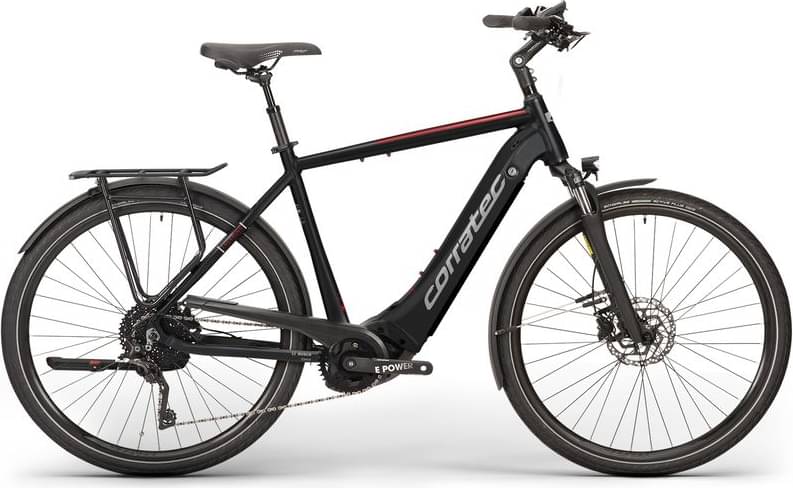

About this model
E-Power Trekking 28 CX6 12S Gent belongs to the Corratec E E Power model. Corratec launched 97 e-bikes of this model so far. Take a sneak peek at all Corratec E E Power e-bikes models from 2022, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on E-Power Trekking 28 CX6 12S Gent are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Power Trekking 28 CX6 12S Gent has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
