Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Fork Suntour NEX -
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , Energy: 625 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

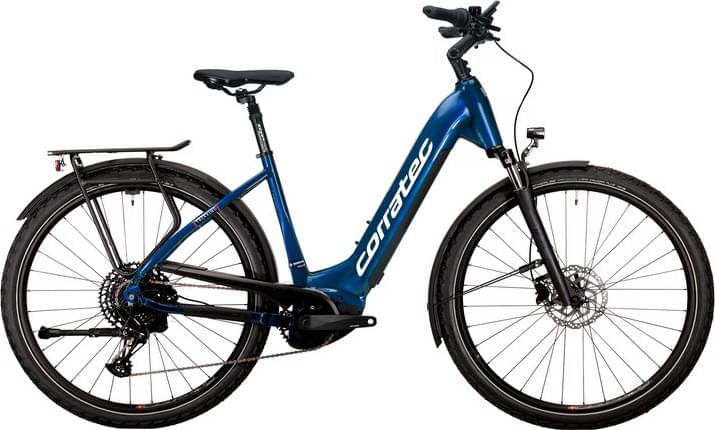

Corratec E-Power Trekking 28 CX6 12S Wave , Material: Alloy
Suspension Fork
SR Suntour NEX E25 DS 700C
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM CS PG1210 11-50T
Crank
SRAM PG1210 Eagle , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX 29er Disc
Tires
Schwalbe Land Cruiser
Brakes
Brakes
Shimano Disc Brake MT200 , Size brake disc: 180 mm front, Size brake disc: 160 mm rear
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Selle Royal Ariel Ladies
Seatpost
ZZYZX Suspension Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 625Wh , Energy: 625 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.479 mm | 1.439 mm | 1.55 mm | 1.512 mm |
| Stack | 590 mm | 590 mm | 623 mm | 623 mm |
| Reach | 399 mm | 410 mm | 402 mm | 412 mm |
| Top Tube Length | 578 mm | 591 mm | 599 mm | 608 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 155 mm | 155 mm | 190 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1103 mm | 1115 mm | 1120 mm | 1129 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
E-Power Trekking 28 CX6 12S Wave belongs to the Corratec E E Power model. Corratec launched 97 e-bikes of this model so far. Take a sneak peek at all Corratec E E Power e-bikes models from 2023, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The E-Power Trekking 28 CX6 12S Wave comes factory-installed with the Suntour NEX fork. This has a travel range of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the E-Power Trekking 28 CX6 12S Wave e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Corratec E-Power Trekking 28 CX6 12S Wave is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
