Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power Trekking Trinity Tube 28 Wave
Suspension Fork
Suntour NEX-E25P 700C , Suspension travel: 63 mm
Drivetrain
Shift Levers
Shimano NEXUS Revo Shifter
Cassette
Shimano Nexus , Number of pinions; Ratio: 8s; 19
Wheels
Rims
ZZYZX Trekking 29er Disc front , Rim outer diameter: 29.00 zoll, Type of tires: clincher, ZZYZX Trekking 29er Disc rear , Rim outer diameter: 29.00 zoll, Type of tires: clincher
Tires
Schwalbe Energizer Active Plus front , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher, Schwalbe Energizer Active Plus rear , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher
Brakes
Brakes
Shimano MT 200 front , Size brake disc: 180 mm, Shimano MT200 rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Trekking Handlebar
Seat
Seatpost
ZZYZX Alloy Seatpost
Motor & Battery
Motor
BOSCH Performance Line , Max speed: 25 km/h, Power: 250 watt, Torque: 65 Nm (J)
Battery
BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.551 mm | 1.549 mm | 1.544 mm |
| Stack | 659 mm | 669 mm | 678 mm |
| Reach | 425 mm | 432 mm | 439 mm |
| Top Tube Length | 620 mm | 630 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 185 mm | 195 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1189 mm | 1200 mm | 1211 mm |
| Wheels | 29" | 29" | 29" |
About this model

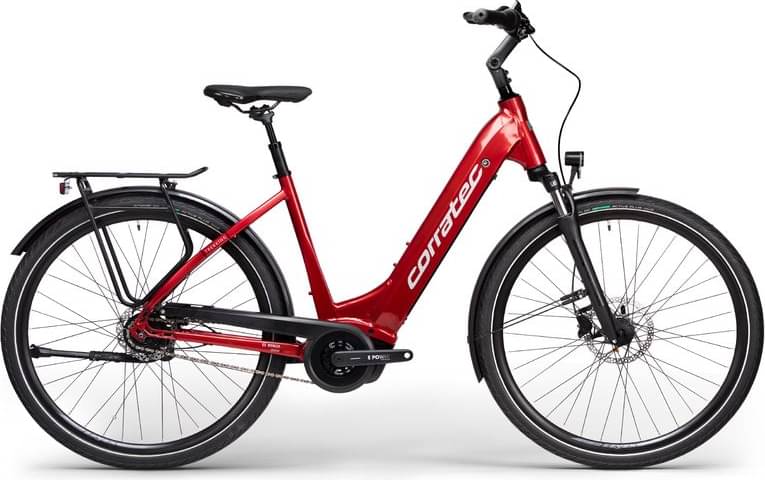

E-Power Trekking 28 P6 8S Wave is a Corratec E E Power model. Corratec released 97 e-bikes variations of this model so far. You can easily view all of the Corratec E E Power e-bikes models from 2022, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on E-Power Trekking 28 P6 8S Wave are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Power Trekking 28 P6 8S Wave has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
