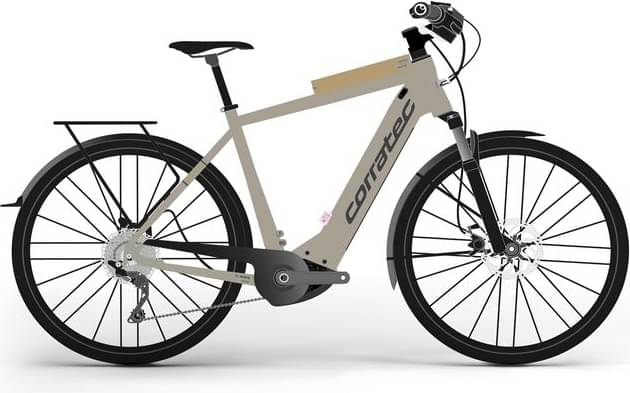

corratec E-Power Trekking 28 SE 3.0 CX7 11S Gent 2023
2023 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Fork Suntour NEX -
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power Trekking 28 SE 3.0 CX7 12S Wave , Material: Alloy
Suspension Fork
SR Suntour NEX E25 DS 700C
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM CS PG1210 11-50T
Crank
SRAM PG1210 Eagle , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX 29er Disc
Tires
Schwalbe Land Cruiser
Brakes
Brakes
Shimano Disc Brake MT200 , Size brake disc: 180 mm front, Size brake disc: 160 mm rear
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Selle Royal Ariel Men
Seatpost
ZZYZX Suspension Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.624 mm | 1.629 mm | 1.631 mm |
| Stack | 666 mm | 676 mm | 685 mm |
| Reach | 410 mm | 415 mm | 420 mm |
| Top Tube Length | 601 mm | 608 mm | 616 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1159 mm | 1168 mm | 1176 mm |
| Wheels | 29" | 29" | 29" |
About this model
E-Power Trekking 28 SE 3.0 CX7 11S Gent is part of the Corratec E E Power model. Corratec released 97 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
E-Power Trekking 28 SE 3.0 CX7 11S Gent components
Fork
The Suntour NEX is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The E-Power Trekking 28 SE 3.0 CX7 11S Gent 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
