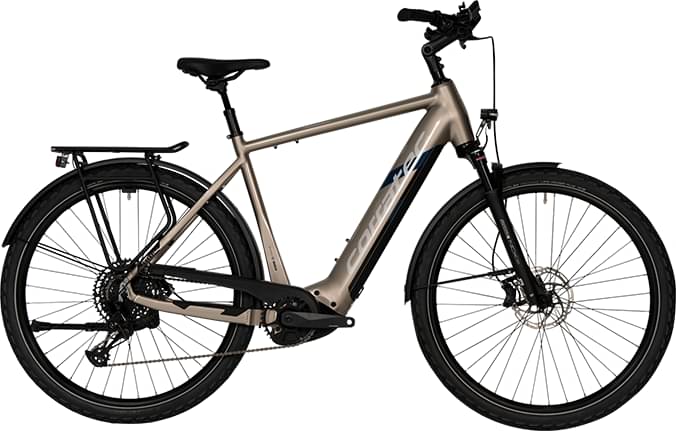

corratec E-Power Trekking 28 SE 3.0 CX7 12S Gent 2024
2024 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Groupset SX Eagle, SRAM -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power Trekking 28 SE 3.0 CX7 12S Gent , Material: Alloy
Suspension Fork
NX1-32-Boost-Air LO DS 29" , Suspension travel: 80 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 11-50T , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM Cring X-Sync , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX Trekking HD 28" front , Rim outer diameter: 28.00 zoll, Type of tires: clincher with tubes, ZZYZX Trekking HD 28" rear , Rim outer diameter: 28.00 zoll, Type of tires: clincher with tubes
Tires
Schwalbe Land Cruiser front , Schwalbe Land Cruiser rear
Brakes
Brakes
Tektro HD M535 front , Size brake disc: 180 mm, Tektro HD M535 rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Selle Royal Ariel Men
Seatpost
ZZYZX Suspension Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Stack Reach Ratio | 1.546 mm | 1.556 mm | 1.558 mm |
| Stack | 654 mm | 663 mm | 673 mm |
| Reach | 423 mm | 426 mm | 432 mm |
| Top Tube Length | 616 mm | 628 mm | 637 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1156 mm | 1166 mm | 1175 mm |
| Wheels | 29" | 29" | 29" |
About this model
E-Power Trekking 28 SE 3.0 CX7 12S Gent completes the Corratec E E Power model. 148 e-bikes variations carry this model name so far. You can easily view all of the Corratec E E Power e-bikes models from 2024, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
E-Power Trekking 28 SE 3.0 CX7 12S Gent components
Wheels
When leaving the production line, the E-Power Trekking 28 SE 3.0 CX7 12S Gent model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Power Trekking 28 SE 3.0 CX7 12S Gent has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
