Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset SX Eagle, SRAM -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH PowerPack 500 Performance , PowerPack 500, 400 and 300 are, with optimum range, the perfect choice for eMountain bikers, sporty riders and commuters. The lithium-ion battery has the highest energy density, smallest dimensions and lowest weight on the market. By coupling two PowerPacks, the DualBattery system gives you double range. Energy: 500 wh, Outstanding battery efficiency, Easy to store and quick to recharge, Ergonomic handling, Long service life -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power Urban 28 Gent
Suspension Fork
SR Suntour NEX-DS 700C , Suspension travel: 63 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 12S , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM Cring X-Sync , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX Trekking 29er Disc front , Rim outer diameter: 29.00 zoll, Type of tires: clincher, ZZYZX Trekking 29er Disc rear , Rim outer diameter: 29.00 zoll, Type of tires: clincher
Tires
Schwalbe Energizer Active Plus front , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher, Schwalbe Energizer Active Plus rear , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher
Brakes
Brakes
Shimano MT 200 front , Size brake disc: 180 mm, Shimano MT200 rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Selle Royal Milo Plus Trekking
Seatpost
ZZYZX Alloy Seatpost
Motor & Battery
Motor
BOSCH Active Line Plus , Harmoniously balanced or assertively powerful? Natural is what's important. The Bosch riding sensation creates a unique eBike experience. Three sensors measure pedaling power, cadence, and speed more than 1000 times per second. This enables the rider and the eBike to interact with each other organically. Just the right level of support with every push of the pedal – for relaxed bike tours and more power for everyday use. Ideal for leisure eBike enthusiasts, Drive Unit Active Cruise provides support at speeds up to 25 km/h and optimally balanced power. Max speed: 25 km/h, Power: 250 watt, Torque: 50 Nm (J), Compact and lightweight, Exceptional design
Battery
BOSCH PowerPack 500 Performance , PowerPack 500, 400 and 300 are, with optimum range, the perfect choice for eMountain bikers, sporty riders and commuters. The lithium-ion battery has the highest energy density, smallest dimensions and lowest weight on the market. By coupling two PowerPacks, the DualBattery system gives you double range. Energy: 500 wh, Outstanding battery efficiency, Easy to store and quick to recharge, Ergonomic handling, Long service life
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Stack Reach Ratio | 1.572 mm | 1.57 mm | 1.55 mm |
| Stack | 643 mm | 653 mm | 657 mm |
| Reach | 409 mm | 416 mm | 424 mm |
| Top Tube Length | 605 mm | 615 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1167 mm | 1178 mm | 1188 mm |
| Wheels | 29" | 29" | 29" |
About this model

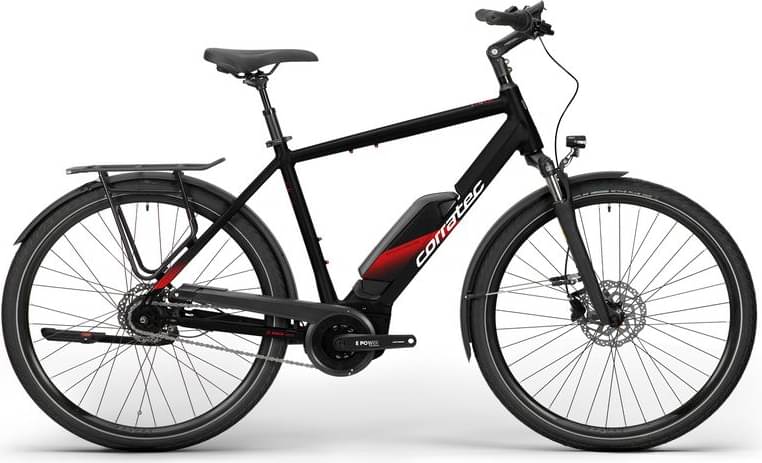

E-Power Urban 28 AP5 12S is a Corratec E E Power model. There are 97 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The E-Power Urban 28 AP5 12S comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the E-Power Urban 28 AP5 12S e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
