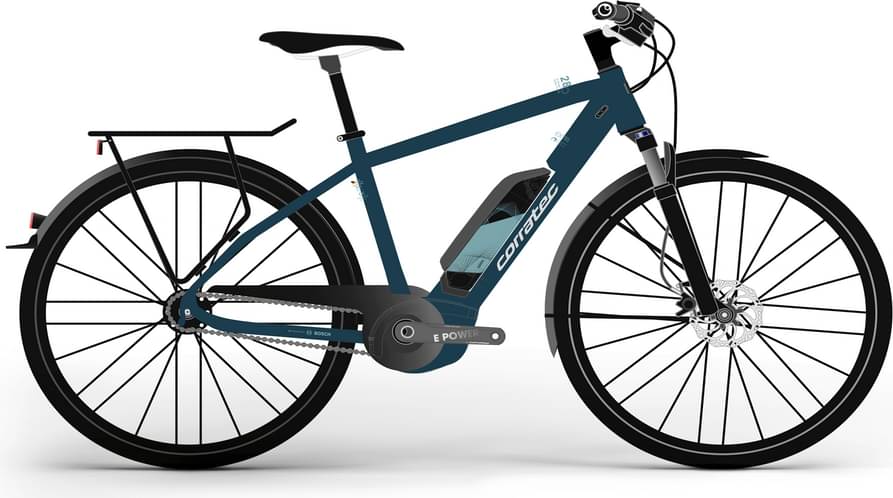

corratec E-Power Urban 28 Fusion Tube AP5 12S Gent 2024
2024 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset SX Eagle, SRAM -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH Power Pack 545 Wh , Energy: 545 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power Urban 28 Fusion Tube Gent , Material: Alloy
Suspension Fork
SR Suntour NEX E25 DS 700C , Suspension travel: 63 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 11-50T , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM Cring X-Sync , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX Urban 28" front , Rim height: 28 mm, ZZYZX Urban 28" rear , Rim height: 28 mm
Tires
Schwalbe Energizer Active Plus front , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher, Schwalbe Energizer Active Plus rear , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher
Brakes
Brakes
Shimano Disc Brake MT200 front , Size brake disc: 180 mm, Shimano Disc Brake MT200 rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Urban Handlebar
Seat
Saddle
Selle Royal Ariel Men
Seatpost
ZZYZX Suspension Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Active Line Plus BES3
Battery
BOSCH Power Pack 545 Wh , Energy: 545 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.747 mm | 1.756 mm | 1.765 mm |
| Stack | 671 mm | 685 mm | 699 mm |
| Reach | 384 mm | 390 mm | 396 mm |
| Top Tube Length | 590 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 195 mm | 210 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1160 mm | 1160 mm | 1171 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
E-Power Urban 28 Fusion Tube AP5 12S Gent belongs to the Corratec E E Power model. 148 e-bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
E-Power Urban 28 Fusion Tube AP5 12S Gent components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Corratec E-Power Urban 28 Fusion Tube AP5 12S Gent 2024, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Power Urban 28 Fusion Tube AP5 12S Gent comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
