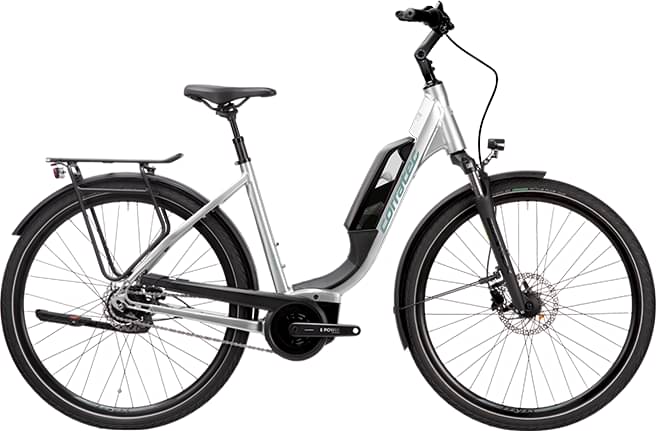

corratec E-Power Urban 28 Fusion Tube AP5 12S Wave 2024
2024 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset SX Eagle, SRAM -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH Power Pack 545 Wh , Energy: 545 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power Urban 28 Fusion Tube Wave , Material: Alloy
Suspension Fork
SR Suntour NEX E25 DS 700C , Suspension travel: 63 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 11-50T , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM Cring X-Sync , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX Urban 28" front , Rim height: 28 mm, ZZYZX Urban 28" rear , Rim height: 28 mm
Tires
Schwalbe Energizer Active Plus front , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher, Schwalbe Energizer Active Plus rear , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher
Brakes
Brakes
Shimano Disc Brake MT200 front , Size brake disc: 180 mm, Shimano Disc Brake MT200 rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Urban Handlebar
Seat
Saddle
Selle Royal Orbis
Seatpost
ZZYZX Suspension Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Active Line Plus BES3
Battery
BOSCH Power Pack 545 Wh , Energy: 545 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.745 mm | 1.754 mm | 1.763 mm |
| Stack | 672 mm | 686 mm | 700 |
| Reach | 385 mm | 391 mm | 397 mm |
| Top Tube Length | 590 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 195 mm | 210 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1149 mm | 1160 mm | 1172 mm |
| Wheels | 29" | 29" | 29" |
About this model
E-Power Urban 28 Fusion Tube AP5 12S Wave is a Corratec E E Power model. 148 e-bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on E-Power Urban 28 Fusion Tube AP5 12S Wave are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Power Urban 28 Fusion Tube AP5 12S Wave has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
