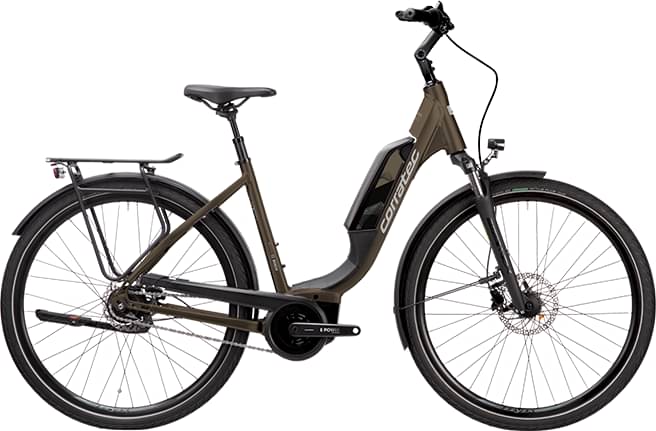

corratec E-Power Urban 28 Fusion Tube AP5 8S Wave 2024
2024 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH Power Pack 545 Wh , Energy: 545 wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power Urban 28 Fusion Tube Wave , Material: Alloy
Suspension Fork
SR Suntour NEX-DS 700C , Suspension travel: 63 mm
Drivetrain
Shift Levers
Shimano Nexus Revo Shifter 8S
Cassette
Shimano Nexus 19T 8S , Number of pinions; Ratio: 8s; 19
Crank
ZZYZX E-Power Crank , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX Urban 28" front , Rim height: 28 mm, ZZYZX Urban 28" rear , Rim height: 28 mm
Tires
Schwalbe Energizer Active Plus front , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher, Schwalbe Energizer Active Plus rear , Inside diameter: 28.00 zoll, Width: 50 mm, Type of tires: clincher
Brakes
Brakes
Shimano Disc Brake MT200 front , Size brake disc: 180 mm, Shimano Disc Brake MT200 rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Urban Handlebar
Seat
Saddle
Selle Royal Orbis
Seatpost
ZZYZX Suspension Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Active Line Plus BES3
Battery
BOSCH Power Pack 545 Wh , Energy: 545 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.745 mm | 1.754 mm | 1.763 mm |
| Stack | 672 mm | 686 mm | 700 |
| Reach | 385 mm | 391 mm | 397 mm |
| Top Tube Length | 590 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 195 mm | 210 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1149 mm | 1160 mm | 1172 mm |
| Wheels | 29" | 29" | 29" |
About this model
E-Power Urban 28 Fusion Tube AP5 8S Wave is a Corratec E E Power model. There are 148 e-bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
E-Power Urban 28 Fusion Tube AP5 8S Wave components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on E-Power Urban 28 Fusion Tube AP5 8S Wave are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Power Urban 28 Fusion Tube AP5 8S Wave has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
