Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , Energy: 625 wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power X Vert Elite Trapez , Material: Alloy
Suspension Fork
SR Suntour XCR32-BOOST-AIR LOR , Suspension travel: 120 mm
Drivetrain
Rear Derailleur
Shimano Deore SGS
Shift Levers
Shimano Deore 11-Speed
Cassette
Shimano Deore , Number of pinions; Ratio: 11s; 11 13 15 17 19 21 24 28 32 37 42
Crank
ZZYZX E-Power Crank , Number of chainrings; Ratio: 1s; 34
Wheels
Rims
ZZYZX X Vert front , Rim outer diameter: 29.00 zoll, ZZYZX X Vert rear , Rim outer diameter: 27.50 zoll
Tires
Schwalbe Smart Sam 29" front , Inside diameter: 29.00 zoll, Schwalbe Smart Sam 650B rear , Inside diameter: 27.50 zoll, Type of tires: clincher
Brakes
Brakes
Shimano MT401 front , Size brake disc: 180 mm, Shimano MT401 rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SL Alloy Handlebar , Width: 760mm
Seat
Saddle
Selle Italia Italia Superflow Carbon
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 625Wh , Energy: 625 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.649 mm | 1.591 mm | 1.557 mm | 1.525 mm |
| Stack | 676 mm | 676 mm | 685 mm | 694 mm |
| Reach | 410 mm | 425 mm | 440 mm | 455 mm |
| Top Tube Length | 616 mm | 631 mm | 649 mm | 667 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 150 mm | 160 mm | 160 mm | 170 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1194 mm | 1209 mm | 1228 mm | 1247 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

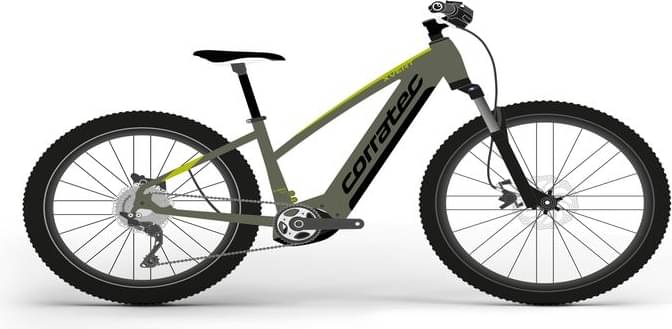

E-Power X Vert Elite Trapez is a Corratec E E Power model. Corratec launched 97 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
E-Power X Vert Elite Trapez components
Fork
Corratec E-Power X Vert Elite Trapez 2022 e-bike is equipped with the Suntour XCR Air fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Corratec E-Power X Vert Elite Trapez 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
