Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour RAIDON
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec X Vert Pro Team , Material: Alloy
Suspension Fork
SR Suntour RAIDON 34-BOOST , Suspension travel: 120 mm
Drivetrain
Rear Derailleur
Shimano DEORE XT 12S
Shift Levers
Shimano DEORE SLX
Cassette
SRAM CS PG1230 11-50T , Number of pinions; Ratio: 12s; 10 12 14 16 18 21 24 28 33 39 45 51
Crank
ZZYZX E-Power Crank , Number of chainrings; Ratio: 1s; 34
Wheels
Rims
ZZYZX X Vert front , Rim outer diameter: 29.00 zoll, ZZYZX X Vert rear , Rim outer diameter: 27.50 zoll
Tires
Schwalbe Nobby Nic 29" front , Inside diameter: 29.00 zoll, Width: 60 mm, Schwalbe Nobby Nic 650B rear , Inside diameter: 27.50 zoll, Width: 70 mm
Brakes
Brakes
Shimano MT401 front , Size brake disc: 180 mm, Shimano MT410 rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SL Alloy Handlebar , Width: 760mm
Seat
Saddle
Selle Italia X3 XP BOOST Superflow
Seatpost
Kindshock WESTY REM , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.509 mm | 1.456 mm | 1.398 mm | 1.354 mm |
| Stack | 611 mm | 619 mm | 629 mm | 639 mm |
| Reach | 405 mm | 425 mm | 450 mm | 472 mm |
| Top Tube Length | 574 mm | 596 mm | 624 mm | 649 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 91 mm | 99 mm | 110 mm | 121 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1119 mm | 1142 mm | 1171 mm | 1197 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

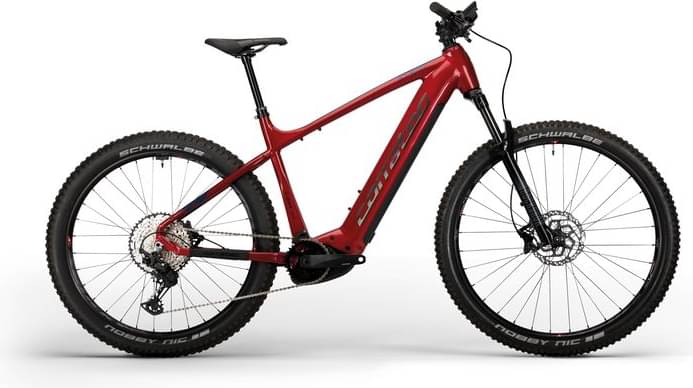

E-Power X Vert Pro Team is a Corratec E E Power model. Corratec released 97 e-bikes variations of this model so far. You can easily view all of the Corratec E E Power e-bikes models from 2023, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Suntour RAIDON is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Corratec E-Power X Vert Pro Team 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Corratec E-Power X Vert Pro Team comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
