Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset SX Eagle, SRAM -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , Energy: 625 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power X Vert Race Gent
Suspension Fork
SR Suntour XCR32-BOOST-AIR LOR , Suspension travel: 120 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM CS PG1210 11-50T , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM X-Sync E-Power Crank , Number of chainrings; Ratio: 1s; 34
Wheels
Rims
ZZYZX X Vert front , Rim outer diameter: 29.00 zoll, ZZYZX X Vert rear , Rim outer diameter: 27.50 zoll
Tires
Schwalbe Smart Sam 29" front , Inside diameter: 29.00 zoll, Schwalbe Smart Sam 650B rear , Inside diameter: 27.50 zoll, Type of tires: clincher
Brakes
Brakes
Tektro HD-M275 front , Size brake disc: 180 mm, Tektro HD-M275 rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SL Alloy Handlebar , Width: 760mm
Seat
Saddle
Selle Italia Italia Superflow Carbon
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 625Wh , Energy: 625 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 54cm | 57cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.508 mm | 1.47 mm | 1.442 mm |
| Stack | 671 mm | 671 mm | 676 mm | 685 mm |
| Reach | 430 mm | 445 mm | 460 mm | 475 mm |
| Top Tube Length | 635 mm | 650 | 666 mm | 684 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 145 mm | 145 mm | 150 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1212 mm | 1227 mm | 1244 mm | 1263 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

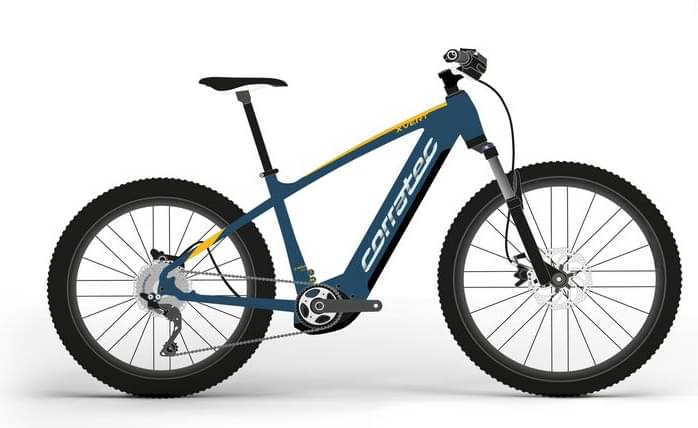

E-Power X Vert Race Gent is a Corratec E E Power model. Corratec released 97 e-bikes variations of this model so far. You can easily view all of the Corratec E E Power e-bikes models from 2023, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Corratec E-Power X Vert Race Gent 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Corratec E-Power X Vert Race Gent has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
