Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset SX Eagle, SRAM -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , Energy: 625 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

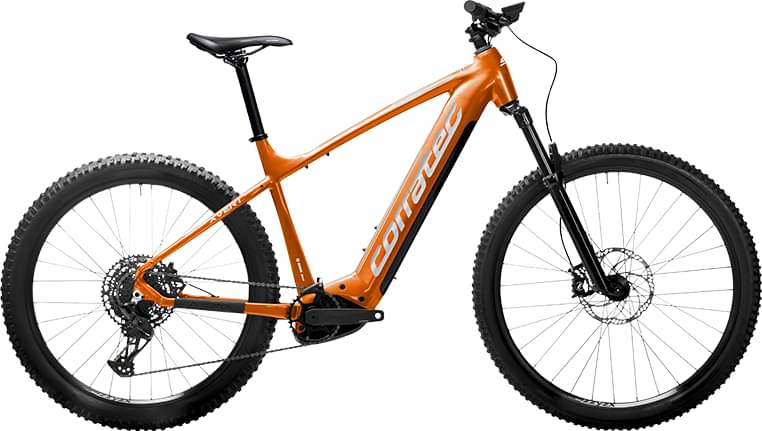

Corratec E-Power X Vert Race Gent
Suspension Fork
SR Suntour XCM32 Boost LOR 29" 120 , Suspension travel: 120 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM CS PG1210 11-50T , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM X-SYNC 2 34T , Number of chainrings; Ratio: 1s; 34
Wheels
Rims
ZZYZX 29" front , Number of spokes: 32, ZZYZX 650B rear , Number of spokes: 32
Tires
Schwalbe Smart Sam 29" front , Inside diameter: 29.00 zoll, Schwalbe Smart Sam 650B rear , Inside diameter: 27.50 zoll, Type of tires: clincher
Brakes
Brakes
Tektro HD-M275 front , Size brake disc: 180 mm, Tektro HD-M275 rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Mountain Handlebar
Seat
Saddle
Selle Italia X3 XP BOOST Superflow
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 625Wh , Energy: 625 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 54cm | 57cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.508 mm | 1.47 mm | 1.442 mm |
| Stack | 671 mm | 671 mm | 676 mm | 685 mm |
| Reach | 430 mm | 445 mm | 460 mm | 475 mm |
| Top Tube Length | 635 mm | 650 | 666 mm | 684 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 145 mm | 145 mm | 150 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1212 mm | 1227 mm | 1244 mm | 1263 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
E-Power X Vert Race Gent belongs to the Corratec E E Power model. Corratec launched 148 e-bikes of this model so far. Take a sneak peek at all Corratec E E Power e-bikes models from 2024, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
E-Power X Vert Race Gent components
Fork
Corratec E-Power X Vert Race Gent 2024 e-bike is equipped with the Suntour XCM fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The E-Power X Vert Race Gent 2024 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
