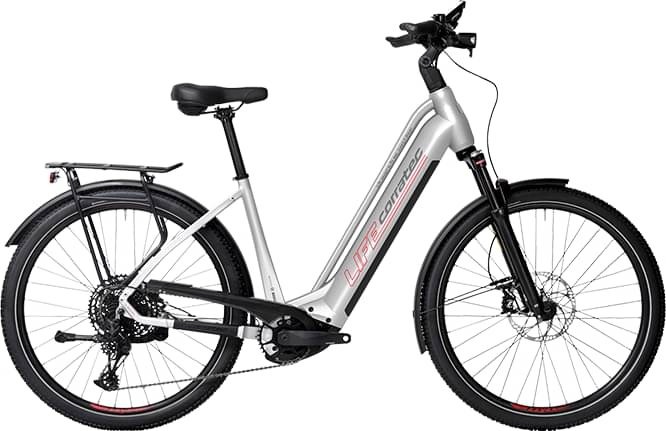

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Gates -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec Life , Frame with Shadow Edge Tube 2.0 - worldwide most stable and safest corratec E-Bike frame. Integrated Engine Bracket - Efficient protection of the first class Bosch Performance CX system. Particularly reinforced frame in order to ensure the overal system weight of 180 Kg.
Suspension Fork
SR Suntour MOBIE25-AIR LOR DS , Suspension travel: 100 mm
Drivetrain
Shift Levers
Enviolo TR
Cassette
Gates Carbon Drive
Crank
Gates E-Power Crank , Number of chainrings; Ratio: 1s; 46
Bottom Bracket
Bosch, press-fit
Wheels
Rims
ZZYZX Life front , Rim outer diameter: 27.50 zoll, ZZYZX Life rear , Rim outer diameter: 27.50 zoll
Tires
Schwalbe Johnny Watts 650B front , Schwalbe Johnny Watts 650B rear
Brakes
Brakes
Magura MT Thirty front , Size brake disc: 203 mm, Magura MT Thirty rear , Size brake disc: 180 mm
Cockpit
Stem
Corratec ICR System
Handlebar
ZZYZX corratec Life Handlebar
Seat
Saddle
SQ Lab 621 Active
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 42cm | 47cm | 53cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.635 mm | 1.596 mm | 1.622 mm | 1.629 mm | 1.584 mm |
| Stack | 659 mm | 659 mm | 678 mm | 697 mm | 697 mm |
| Reach | 403 mm | 413 mm | 418 mm | 428 mm | 440 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 615 mm | 627 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 150 mm | 170 mm | 190 mm | 190 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1127 mm | 1137 mm | 1149 mm | 1166 mm | 1166 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
Life CX7 Belt belongs to the Corratec E Life model. 18 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
Corratec Life CX7 Belt 2024 e-bike is equipped with the Suntour MOBIE fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Life CX7 Belt model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Corratec Life CX7 Belt is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
