Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Alfine, SunRace -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec MTC Trapez
Suspension Fork
SR Suntour XCM , Suspension travel: 80 mm
Drivetrain
Shift Levers
Shimano Alfine 8s
Cassette
Shimano Alfine CS-500 18T
Crank
Sunrace S38 , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX 29er Disc
Tires
Schwalbe Smart Sam 29" , Inside diameter: 29.00 zoll, Width: 57 mm
Brakes
Brakes
Tektro HDT275 , Size brake disc: 180 mm front, Size brake disc: 160 mm rear
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SL Alloy Handlebar
Seat
Saddle
ZZYZX Sport Saddle
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.727 mm | 1.699 mm | 1.635 mm | 1.556 mm |
| Stack | 644 mm | 649 mm | 649 mm | 649 mm |
| Reach | 373 mm | 382 mm | 397 mm | 417 mm |
| Top Tube Length | 570 mm | 580 mm | 595 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 155 mm | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1105 mm | 1116 mm | 1131 mm | 1151 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

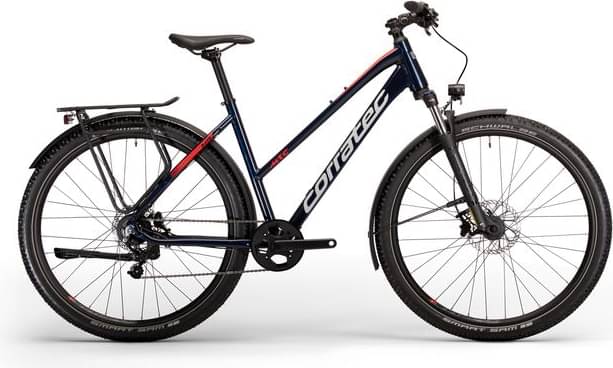

MTC Base Trapez is a Corratec Mtc model. 12 bikes variations carry this model name so far. Take a sneak peek at all Corratec Mtc bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
According to our math, the average price for a trustworthy Commuter bike is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
MTC Base Trapez components
Fork
Corratec MTC Base Trapez 2023 bike is equipped with the Suntour XCM fork, and has 80mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the MTC Base Trapez bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Corratec MTC Base Trapez is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
