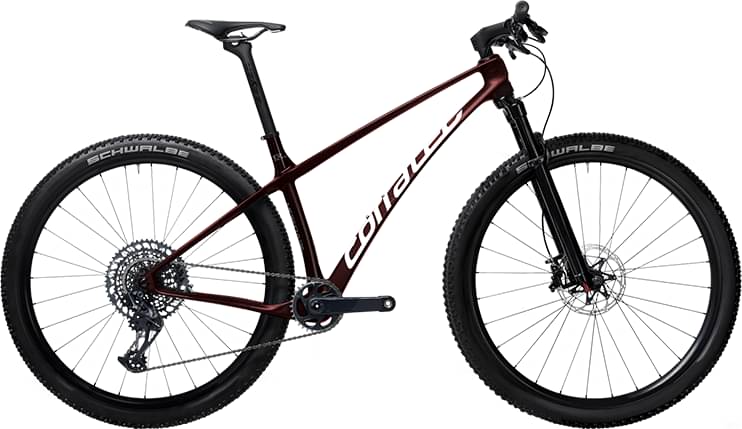

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec Revo Bow , Superlight Frame. Maximum propulsion: Extremely stiff head tube and bottom bracket for maximum propulsion and control. Bow frame: New frame shape with excellent Flexibility and cushioning. Race geometry. Material: Carbon
Suspension Fork
Rockshox SID SL BASE 2 POS , Suspension travel: 100 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle Lunar 12S
Shift Levers
SRAM GX Eagle
Cassette
SRAM PG1230 Eagle , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM GX Eagle DUB , Number of chainrings; Ratio: 1s; 32
Wheels
Rims
Mavic Crossmax 29" front , Mavic Crossmax 29" rear
Tires
Schwalbe Nobby Nic front , Inside diameter: 29.00 zoll, Schwalbe Nobby Nic rear , Inside diameter: 29.00 zoll
Brakes
Brakes
SRAM Level T front , Size brake disc: 180 mm, SRAM Level T rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Mountain Handlebar
Seat
Saddle
Selle Italia Model X
Seatpost
ZZYZX SL Alloy Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.432 mm | 1.384 mm | 1.343 mm |
| Stack | 605 mm | 610 mm | 620 mm | 630 mm |
| Reach | 407 mm | 426 mm | 448 mm | 469 mm |
| Top Tube Length | 580 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 121 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1085 mm | 1106 mm | 1132 mm | 1158 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
Revo BOW Elite is part of the Corratec Revo model. There are 15 bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Revo BOW Elite 2024 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revo BOW Elite comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
