Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Select
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec Revo BOW SL , High End Carbon Frame. Superlight Frame. Maximum propulsion: Extremely stiff head tube and bottom bracket for maximum propulsion and control. Bow frame: New frame shape with excellent Flexibility and cushioning. Race geometry.
Suspension Fork
FS SID SL SELECT 3 POS 29" , Suspension travel: 100 mm
Drivetrain
Rear Derailleur
SRAM XO EAGLE AXS T-Type 12-SPEED
Shift Levers
SRAM AXS POD
Cassette
SRAM CS XS 1275 T-Type 10-52 , Number of pinions; Ratio: 12S; 10 12 14 16 18 21 24 28 32 36 42 52
Crank
SRAM XX SL Eagle DUB 170 34T T-Typet
Wheels
Rims
DT Swiss XMC1501 Spline Boost front , Rim outer diameter: 29.00 zoll, DT Swiss XMC1501 Spline Boost rear , Rim outer diameter: 29.00 zoll
Tires
Schwalbe Racing Ray front , Inside diameter: 29.00 zoll, Schwalbe Racing Ray rear , Inside diameter: 29.00 zoll
Brakes
Brakes
SRAM LEVEL BRONZE STEALTH 2P front , Size brake disc: 180 mm, SRAM LEVEL BRONZE STEALTH 2P rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SLR Carbon , Material: Carbon
Seat
Saddle
Selle Italia Superflow Manganese
Seatpost
ZZYZX Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.432 mm | 1.384 mm | 1.343 mm |
| Stack | 605 mm | 610 mm | 620 mm | 630 mm |
| Reach | 407 mm | 426 mm | 448 mm | 469 mm |
| Top Tube Length | 580 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 121 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1085 mm | 1106 mm | 1132 mm | 1158 mm |
| Wheels | 29" | 29" | 29" | 29" |

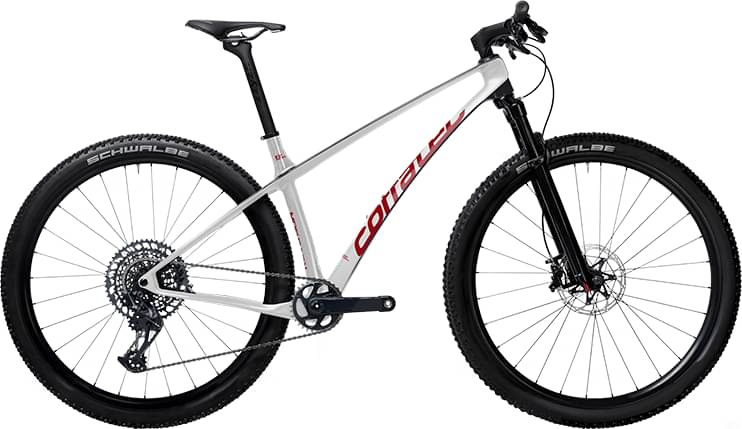

Model Overview
Revo BOW SL Pro Team is a Corratec Revo model. Corratec launched 15 bikes of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Revo BOW SL Pro Team components
Fork
The RockShox SID SL Select is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Corratec Revo BOW SL Pro Team 2024, has a 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
