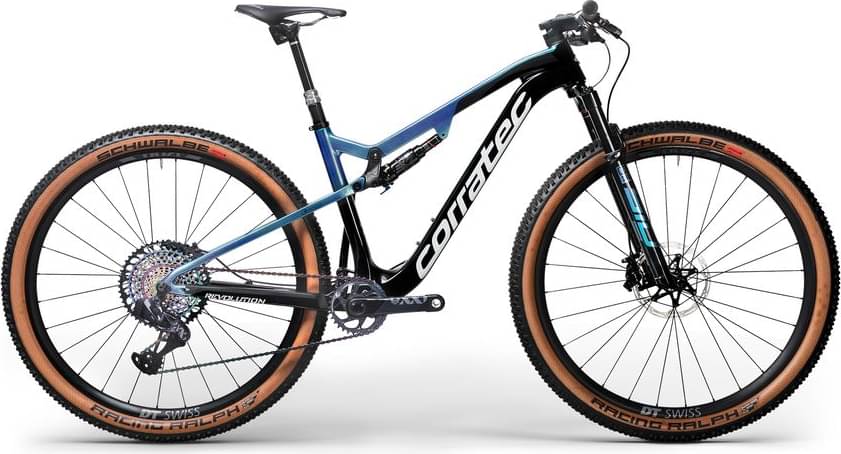

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec Revolution iLink 29 SL , Newly developed corratec Revolution iLink fullsuspension frame, ultra lightweight Virtual pivot point (VPP) frame, with sensible VPP rear suspension system for best traction in any terrain. Material: Carbon, Weight among 2 kg, including the shock. Unique Inside Link Technology. Frame manufactured with EPS technology that ensures a stiffer, lighter and more consistent frame.
Suspension Fork
Rockshox SID SL Ultimate 29" Boost , Suspension travel: 100 mm
Rear Shock
Rockshox SID Luxe Ultimate
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12S
Shift Levers
SRAM AXS Eagle
Cassette
SRAM XG1299 Eagle , Number of pinions; Ratio: 12S; 10 12 14 16 18 21 24 28 32 36 42 52
Crank
SRAM XX1 Eagle DUB , Number of chainrings; Ratio: 1s; 32
Wheels
Rims
DT Swiss XCR 1200 Spline front , Rim outer diameter: 29.00 zoll, DT Swiss XCR 1200 Spline rear , Rim outer diameter: 29.00 zoll
Tires
Schwalbe Racing Ray front , Inside diameter: 29.00 zoll, Schwalbe Racing Ralph rear , Inside diameter: 29.00 zoll
Brakes
Brakes
SRAM Level Ultimate front , Size brake disc: 180 mm, SRAM Level Ultimate rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SLR Carbon , Material: Carbon
Seat
Saddle
Selle Italia Superflow Carbon
Seatpost
Rockshox Reverb AXS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm |
|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.337 mm | 1.326 mm |
| Stack | 610 mm | 615 mm | 630 mm |
| Reach | 445 mm | 460 mm | 475 mm |
| Top Tube Length | 589 mm | 616 mm | 632 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 101 mm | 108 mm | 124 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1144 mm | 1171 mm | 1192 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
Revolution iLink SL Factory completes the Corratec Revolution model. There are 9 bikes that carry this model name. Take a sneak peek at all Corratec Revolution bikes models from 2022, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The fork installed on this bike is the RockShox SID SL Ultimate model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Revolution iLink SL Factory are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolution iLink SL Factory has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
Corratec Revolution iLink SL Factory includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
