Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Groupset microSHIFT, microSHIFT Mezzo -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec X Vert Halcon , Material: Alloy
Suspension Fork
Corratec HL 565D AMS 100mm , Suspension travel: 100 mm
Drivetrain
Rear Derailleur
Microshift M26S
Front Derailleur
Microshift M20 Mezzo
Shift Levers
Microshift TS39
Cassette
Microshift H081 , Number of pinions; Ratio: 8s; 11 13 15 17 20 23 26 34
Crank
ZZYZX Crank , Number of chainrings; Ratio: 3s; 42/34/24
Wheels
Rims
ZZYZX Cross Attack 650B front , Material: Carbon0, ZZYZX Cross Attack 650B rear , Material: Carbon0
Tires
Innova IA-1130 , Inside diameter: 27.50 zoll, Width: 50 mm
Brakes
Brakes
JAK 2a Hydraulic front , JAK 2a Hydraulic rear
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SL Alloy Handlebar
Seat
Saddle
Corratec Sport
Seatpost
ZZYZX SL Alloy Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 34cm | 39cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.586 mm | 1.519 mm | 1.528 mm | 1.401 mm | 1.368 mm |
| Stack | 587 mm | 591 mm | 611 mm | 601 mm | 610 mm |
| Reach | 370 mm | 389 mm | 400 mm | 429 mm | 446 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 105 mm | 105 mm | 125 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1064 mm | 1085 mm | 1092 mm | 1125 mm | 1147 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

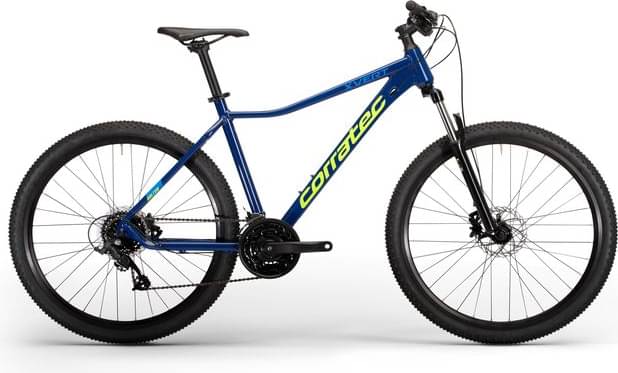

X Vert 650B Halcon belongs to the Corratec X model. Corratec launched 15 bikes of this model so far. Take a sneak peek at all Corratec X bikes models from 2023, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Wheels
The wheels on X Vert 650B Halcon are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Corratec X Vert 650B Halcon is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
