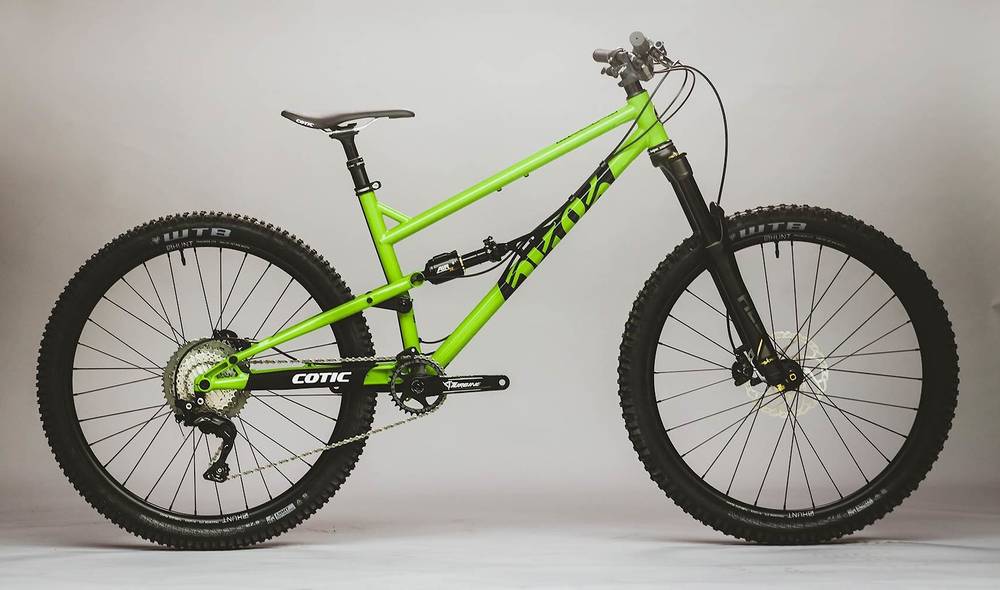

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 125mm -
Fork X Fusion
-
Groupset XT, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
X-Fusion Sweep RL2
Rear Shock
Cane Creek DB Air IL, Climb Switch, 190mm x 45mm
Drivetrain
Rear Derailleur
Shimano XT M8000, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano XT M8000, 11-speed
Cassette
Shimano SLX, 11-speed, 11-46 tooth
Crank
Race Face Turbine Cinch, 175mm length
Bottom Bracket
Race Face, 30mm spindle, 73mm BSA threaded
Chain
Shimano XT M8000, 11-speed
Chain Guide
OneUp Top Guide
Pedals
N/A
Wheels
Front Hub
Shimano Deore, CENTER LOCK rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
Shimano Deore, CENTER LOCK rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rims
WTB ST i25
Tires
Continental Trail King, 27.5" x 2.2"
Brakes
Brakes
Shimano Deore, Shimano 180mm CENTER LOCK rotors
Brake Levers
Shimano Deore
Cockpit
Stem
Cotic SHORTERSTEM, 35mm
Handlebar
Cotic Calver, 780mm width, 25mm rise, 5° upsweep, 9° backsweep
Grips
Cotic, lock-on
Headset
Cane Creek 40 Series, ZS44/EC44
Seat
Saddle
Cotic
Seatpost
X-Fusion Manic Stealth dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.26 mm | 1.22 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 746 mm | 772 mm | 800 mm |
| Rake | 47 mm | 46 mm | 47 mm |
| Trail | 107 mm | 108 mm | 107 mm |
| Stack | 586.8 mm | 595.8 mm | 604.8 mm |
| Reach | 451 mm | 474 mm | 497 mm |
| Top Tube Length | 611 mm | 636 mm | 663 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1189 mm | 1215 mm | 1243 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Flare Silver 1×11 is a Cotic Flare model. There are 5 bikes that carry this model name. You can easily view all of the Cotic Flare bikes models from 2020, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The fork installed on this bike is the X Fusion model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Cane Creek DB Air IL, with a travel distance of 125mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Flare Silver 1×11 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Flare Silver 1×11 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Flare Silver 1×11. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
