Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Cane Creek HELM
-
Groupset XT, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
Cane Creek Helm 29, Boost 110x15mm thru-axle, tapered steerer
Rear Shock
Cane Creek DB Air IL, 190mm x 45mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8000, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano Deore XT M8000, 11-speed
Cassette
Shimano Deore XT M8000, 11-46 tooth, 11-speed
Crank
Race Face Turbine Cinch, 175mm length, direct mount
Bottom Bracket
Threaded BSA, 73mm
Chain
Shimano Deore XT M8000, 11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Hope Tech
Rear Hub
Hope Tech
Rims
Hope Tech XC
Tires
Front: WTB Vigilante, TCS Light Fast Rolling, tubeless, 29" x 2.3", Rear: WTB Trail Boss, Tough Fast Rolling, tubeless, 29" x 2.25"
Brakes
Brakes
Deore XT M8000, 180mm rotors
Brake Levers
Deore XT M8000
Cockpit
Stem
Cotic Shortstem (35mm or 45mm)
Handlebar
Cotic Calver, 780mm width, 25mm rise
Headset
Hope
Seat
Saddle
Cotic Cromo Rail
Seatpost
Race Face Turbine dropper, 125mm (SM, MD), 150mm (LG, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 745 mm | 773 mm | 800 mm | 833 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 616.2 mm | 625.3 mm | 634.4 mm | 643.6 mm |
| Reach | 439 mm | 462.5 mm | 486 mm | 514 mm |
| Top Tube Length | 612 mm | 639 mm | 665 mm | 697 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1198 mm | 1225 mm | 1253 mm | 1285 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

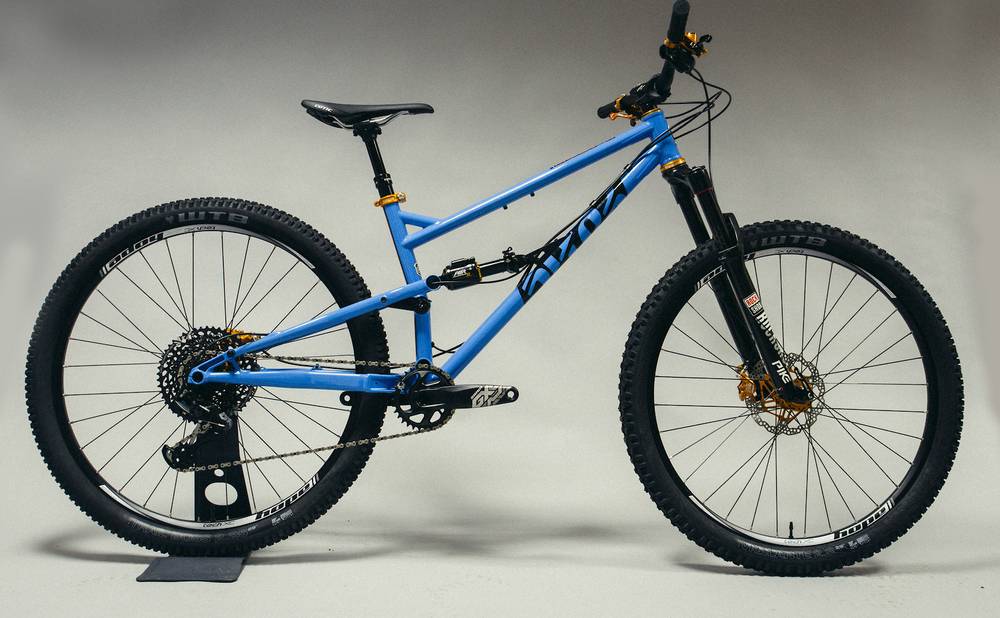

FlareMAX Gold 29 belongs to the Cotic Flaremax model. There are 47 bikes that carry this model name. You can easily view all of the Cotic Flaremax bikes models from 2018, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
Cotic FlareMAX Gold 29 2018 bike is equipped with the Cane Creek HELM fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Cotic FlareMAX Gold 29 bike has the Cane Creek DB Air IL model installed, and has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the FlareMAX Gold 29 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FlareMAX Gold 29 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Cotic model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
