Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Cane Creek HELM
-
Groupset GX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
Cane Creek Helm 29, Boost 110x15mm thru-axle, tapered steerer
Rear Shock
Cane Creek DB Air IL, 190mm x 45mm
Drivetrain
Rear Derailleur
SRAM Eagle GX, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM Eagle GX, 12-speed
Cassette
SRAM Eagle GX, 10-50 tooth, 12-speed
Crank
SRAM Eagle GX, 175mm length
Bottom Bracket
SRAM Eagle GXP, 73mm
Chain
SRAM Eagle GX
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Hope Tech
Rear Hub
Hope Tech
Rims
Hope Tech XC
Tires
Front: WTB Vigilante, TCS Light Fast Rolling, tubeless, 29" x 2.3", Rear: WTB Trail Boss, Tough Fast Rolling, tubeless, 29" x 2.25"
Brakes
Brakes
Deore XT M8000, 180mm rotors
Brake Levers
Deore XT M8000
Cockpit
Stem
Cotic Shortstem (35mm or 45mm)
Handlebar
Cotic Calver, 780mm width, 25mm rise
Headset
Hope
Seat
Saddle
Cotic Cromo Rail
Seatpost
Race Face Turbine dropper, 125mm (SM, MD), 150mm (LG, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.35 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 745 mm | 773 mm | 800 mm | 833 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 616.2 mm | 625.3 mm | 634.4 mm | 643.6 mm |
| Reach | 439 mm | 462.5 mm | 486 mm | 514 mm |
| Top Tube Length | 612 mm | 639 mm | 665 mm | 697 mm |
| Seat Tube Angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1198 mm | 1225 mm | 1253 mm | 1285 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

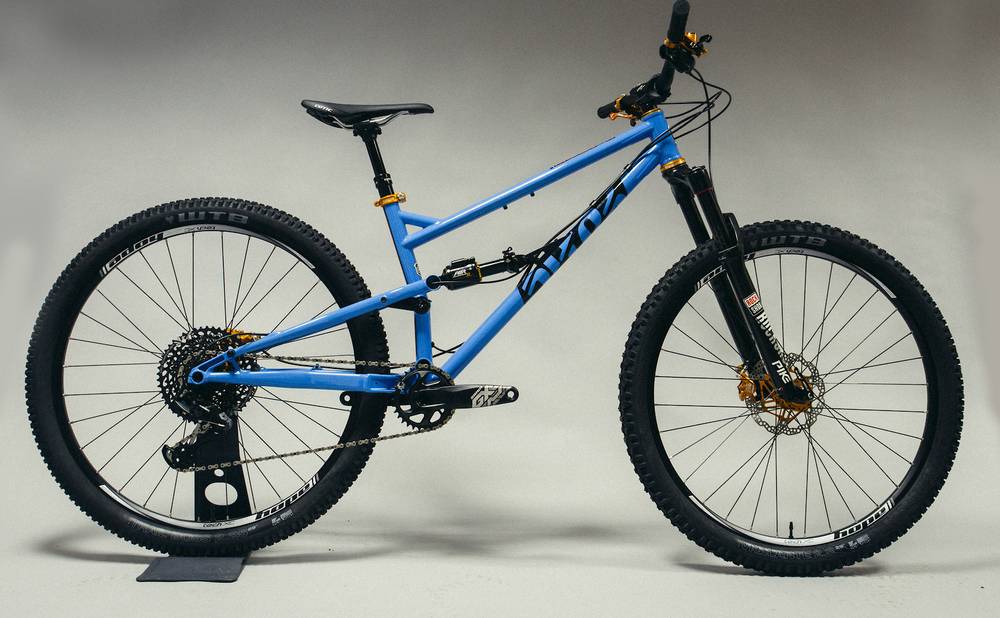

FlareMAX Gold Eagle 29 is part of the Cotic Flaremax model. Cotic launched 47 bikes of this model so far. Take a sneak peek at all Cotic Flaremax bikes models from 2018, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13.74 kg (30.29 lbs), the FlareMAX Gold Eagle 29 model is a bit heavier than average. In conclusion, the average Trail bike weighs 5.86% less than FlareMAX Gold Eagle 29.
FlareMAX Gold Eagle 29 components
Fork
The Cane Creek HELM is included from the factory. It has a travel distance of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Cane Creek DB Air IL, with a travel distance of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on FlareMAX Gold Eagle 29 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cotic FlareMAX Gold Eagle 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
FlareMAX Gold Eagle 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Cotic FlareMAX Gold Eagle 29 includes a dropper post. Therefore, climbing or descending will be a breeze.
