Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Cane Creek HELM
-
Groupset X01 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Cane Creek HELM
Rear Shock
Cane Creek DB Air IL, Climb Switch, 200mm x 50mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM X01 Eagle, 12-speed, 10-50 tooth
Crank
Cane Creek eeWings Ti
Bottom Bracket
Race Face, 30mm spindle, 73mm BSA threaded
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
OneUp Top Guide
Pedals
N/A
Wheels
Front Hub
Hunt All Mountain Carbon wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Hunt All Mountain Carbon wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Hunt All Mountain Carbon wheelset
Spokes
Hunt All Mountain Carbon wheelset
Tires
Front: WTB Verdict, Slashguard, tubeless kit, 29" x 2.5", Rear: WTB Trail Boss, Slashguard, tubeless kit, 29" x 2.4"
Brakes
Brakes
Hope Tech3 X2, Hope 6-bolt floating rotors (203mm front, 180mm rear)
Brake Levers
Hope Tech3 X2
Cockpit
Stem
Hope AM, 35mm
Handlebar
Burgtec Ride Wide Carbon, 800mm width, 20mm rise
Grips
Cotic, lock-on
Headset
Hope 2H, ZS44/EC44
Seat
Saddle
Cotic
Seatpost
X-Fusion Manic Stealth dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.32 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 755 mm | 783 mm | 809 mm | 839 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122 mm | 122 mm | 122 mm | 122 mm |
| Stack | 616.2 mm | 625.3 mm | 634.4 mm | 643.6 mm |
| Reach | 451 mm | 474.5 mm | 497 mm | 522 mm |
| Top Tube Length | 603 mm | 630 mm | 655 mm | 683 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1207 mm | 1235 mm | 1262 mm | 1291 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

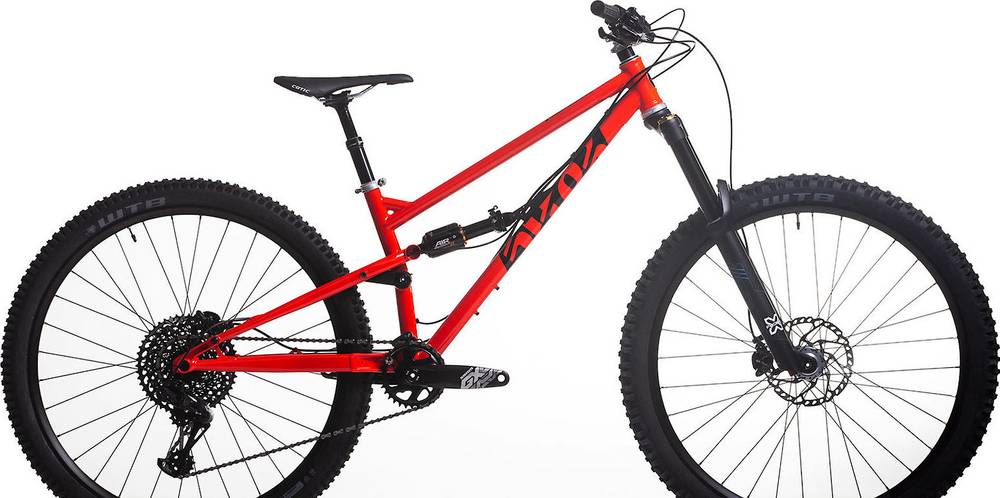

FlareMAX Platinum X01 Eagle completes the Cotic Flaremax model. There are 47 bikes that carry this model name. Take a sneak peek at all Cotic Flaremax bikes models from 2020, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
FlareMAX Platinum X01 Eagle components
Fork
This bike has the Cane Creek HELM fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The FlareMAX Platinum X01 Eagle has a rear shock with a travel of 125mm. The model Cane Creek DB Air IL is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on FlareMAX Platinum X01 Eagle are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cotic FlareMAX Platinum X01 Eagle is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Cotic FlareMAX Platinum X01 Eagle bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
