Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork X Fusion
-
Groupset SLX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
X-Fusion McQueen RL2, Boost 110x15mm thru-axle, tapered steerer
Rear Shock
X-Fusion O2 RCX, Cotic custom tuned, 190mm x 45mm
Drivetrain
Rear Derailleur
Shimano SLX M7000, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000, 11-speed
Cassette
Shimano SLX M7000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect Cinch, 175mm length, direct mount
Bottom Bracket
Threaded BSA, 73mm
Chain
Shimano SLX M7000, 11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Shimano SLX
Rear Hub
Shimano SLX
Rims
WTB ST i25
Tires
Continental Trail King, 29" x 2.2"
Brakes
Brakes
Deore M615, 180mm rotors
Brake Levers
Deore M615
Cockpit
Stem
Cotic Shortstem (35mm or 45mm)
Handlebar
Cotic Calver, 780mm width, 25mm rise
Headset
Cane Creek 40 Series
Seat
Saddle
Cotic Cromo Rail
Seatpost
X-Fusion Manic dropper, 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.29 mm | 1.24 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 743 mm | 770 mm | 798 mm | 830 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 614.2 mm | 623.3 mm | 632.4 mm | 641.6 mm |
| Reach | 442 mm | 465.5 mm | 489 mm | 517 mm |
| Top Tube Length | 611 mm | 638 mm | 664 mm | 696 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1195 mm | 1222 mm | 1250 mm | 1282 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

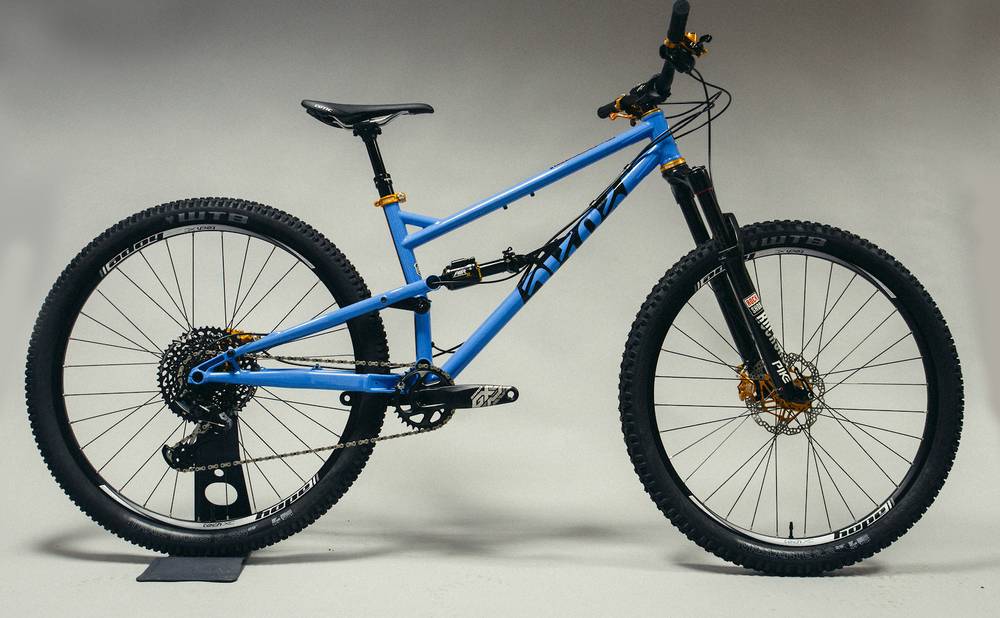

FlareMAX Silver 29 is part of the Cotic Flaremax model. 47 bikes variations carry this model name so far. Take a sneak peek at all Cotic Flaremax bikes models from 2018, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
FlareMAX Silver 29 components
Fork
Cotic FlareMAX Silver 29 2018 bike is equipped with the X Fusion fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is X-Fusion O2 RCX, with a travel distance of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the FlareMAX Silver 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cotic FlareMAX Silver 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Cotic FlareMAX Silver 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the FlareMAX Silver 29. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
