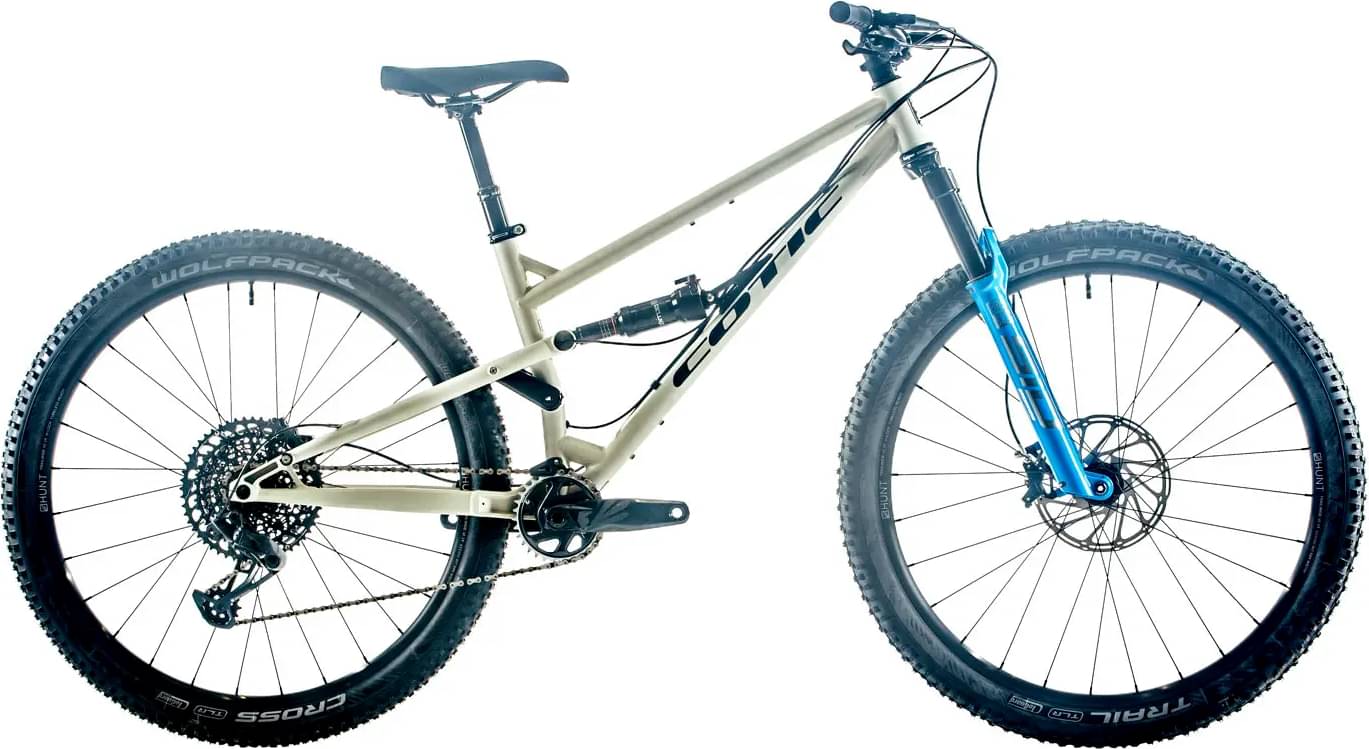

Cotic FlareMAX Trail / Works XTR eeWing 2023
2023 Mountain
Estimate price |
10,102$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Cane Creek HELM
-
Groupset XTR, Cane Creek -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Cane Creek HELM29 - 130mm
Rear Shock
Cane Creek DB Air IL Climb Switch 210x50
Drivetrain
Rear Derailleur
XTR M9100 1x12 Drivetrain
Cassette
Garbaruk 12spd 10-52 Cassette
Crank
Cane Creek eeWings ti chainset 170mm + Garbaruk Shimano Chainring
Bottom Bracket
Enduro Bearings Stainless Steel Maxhit 30mm Bottom Bracket
Wheels
Rims
Hope Fortus30 Single Cavity 29 Microspline (black Pro5 hubs)
Tires
WTB 29 Verdict 2.5 / Trail Boss 2.4 Light Slashguard with tubeless kit
Brakes
Brakes
Hope standard (non-floating) rotors 203/180 6bolt
Cockpit
Stem
Hope Gravity 35mm Stem 31.8mm Clamp (black)
Handlebar
Hope Carbon Bar 800 x 20mm Rise 31.8 Clamp
Headset
Enduro Bearings Stainless Steel Maxhit Headset
Seat
Seatpost
BikeYoke Devine Seatpost 160mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 752 mm | 775 mm | 798 mm | 822 mm | 841 mm |
| Rake | 45 mm | 45 mm | 45 mm | 46 mm | 46 mm |
| Trail | 120 mm | 120 mm | 120 mm | 119 mm | 119 mm |
| Stack | 622 mm | 631 mm | 640 mm | 650 | 650 |
| Reach | 446 mm | 465 mm | 484 mm | 503 mm | 522 mm |
| Top Tube Length | 602 mm | 624 mm | 641 mm | 663 mm | 682 mm |
| Seat Tube Angle | 75.4 ° | 75.4 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 496 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1205 mm | 1228 mm | 1251 mm | 1275 mm | 1294 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
About this model
FlareMAX Trail / Works XTR eeWing belongs to the Cotic Flaremax model. There are 56 bikes that carry this model name. Take a sneak peek at all Cotic Flaremax bikes models from 2023, by clicking here.
Model range prices
Cotic FlareMAX Special Deal / Bronze SLX 2023 is the most economical model, with a starting price of 4139$. Cotic FlareMAX Trail / Works XTR eeWing 2023 on the other hand costs 9194$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9194$. Doing a quick comparison, we notice that FlareMAX Trail / Works XTR eeWing price is 232.87% higher than the average cost of a Trail bike.
FlareMAX Trail / Works XTR eeWing components
Fork
The fork installed on this bike is the Cane Creek HELM model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Cane Creek DB Air IL Climb Switch 210×50, with a travel distance of 125mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Cotic FlareMAX Trail / Works XTR eeWing 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FlareMAX Trail / Works XTR eeWing comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
FlareMAX Trail / Works XTR eeWing comes in 5 sizes, that range from 162 cm – 195 cm (5.31 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Cotic FlareMAX Trail / Works XTR eeWing comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
