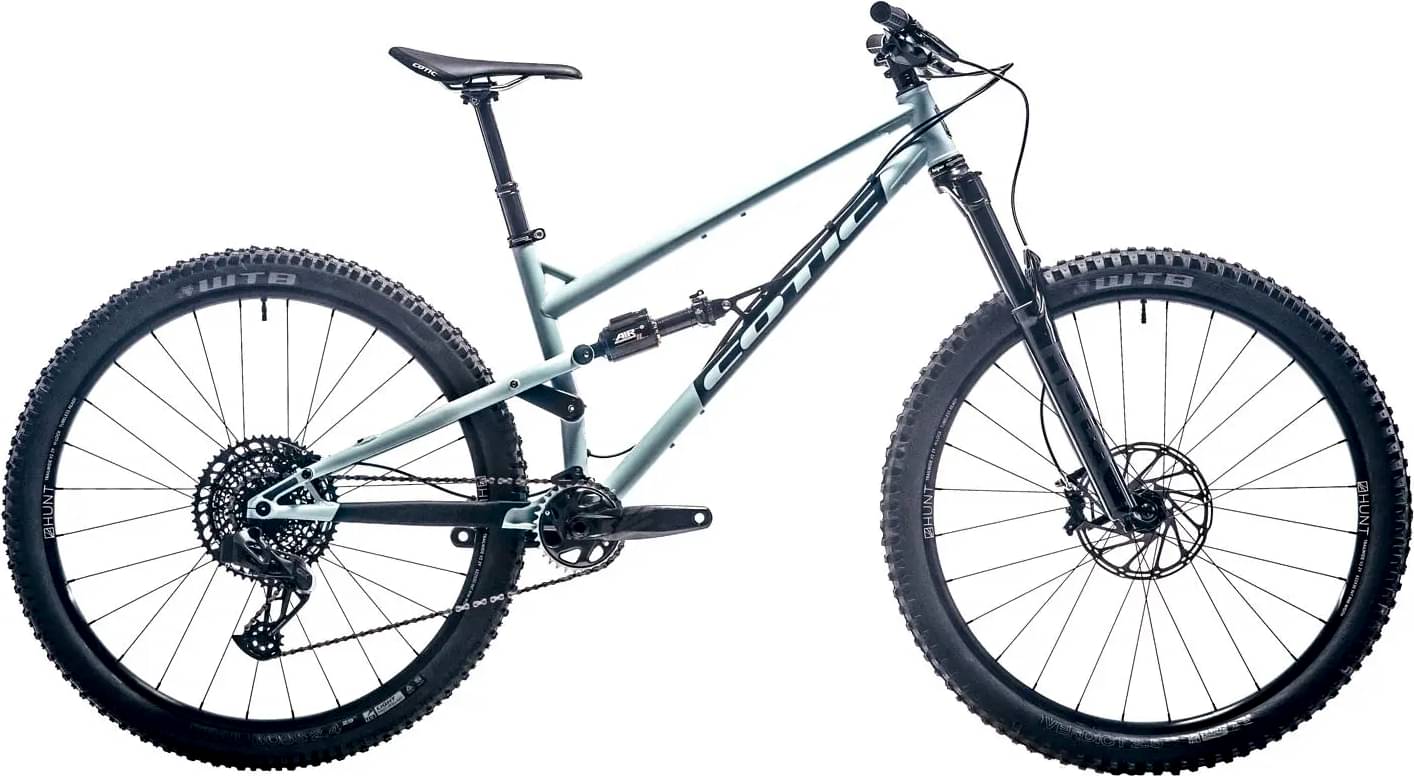

Cotic Jeht Gen1 Trail / Platinum XTR eeWing 2024
2024 Mountain
Estimate price |
8,885$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Cane Creek HELM
-
Groupset XTR, Cane Creek -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 171cm
MD
168cm - 180cm
LG
178cm - 188cm
XL
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Cane Creek HELM29 for Jeht - 150mm
Rear Shock
Cane Creek DB Air IL Climb Switch 210x55
Drivetrain
Rear Derailleur
XTR M9100 1x12 Drivetrain
Cassette
Garbaruk 12spd 10-52 Cassette
Crank
Cane Creek eeWings ti chainset 170mm + Garbaruk Shimano Chainring
Bottom Bracket
RaceFace 30mm BB
Wheels
Rims
Hope Fortus30 Single Cavity 29 Microspline (black Pro5 hubs)
Tires
WTB 29 Verdict 2.5 / Trail Boss 2.4 Light Slashguard with tubeless kit
Brakes
Brakes
Hope standard (non-floating) rotors 203/180 6bolt
Cockpit
Stem
Hope Gravity 35mm Stem 31.8mm Clamp (black)
Handlebar
Hope Carbon Bar 800 x 20mm Rise 31.8 Clamp
Headset
Hope 2H for tapered steerer (black)
Seat
Seatpost
BikeYoke Devine Seatpost 160mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.387 mm | 1.338 mm | 1.294 mm | 1.249 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 783 mm | 810 mm | 837 mm | 867 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 616 mm | 625 mm | 634 mm | 643 mm |
| Reach | 444 mm | 467 mm | 490 mm | 515 mm |
| Top Tube Length | 595 mm | 621 mm | 647 mm | 674 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1229 mm | 1256 mm | 1283 mm | 1313 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 188 cm | 195 cm |
About this model
Jeht Gen1 Trail / Platinum XTR eeWing is a Cotic Jeht model. 57 bikes variations carry this model name so far. Take a sneak peek at all Cotic Jeht bikes models from 2024, by clicking here.
Model range prices
Cotic Jeht Gen1 Special Deal / Bronze SLX 2024 is the most affordable bike of this model and has a price of 2970$. On the other hand, Cotic Jeht Gen2 Trail / Works XTR 2024, is the most expensive and costs 9194$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2024 for 8085$. In conclusion, this bike price is 192.72% more expensive than the price of the average Trail bike.
Overview of components
Fork
The Jeht Gen1 Trail / Platinum XTR eeWing comes factory-installed with the Cane Creek HELM fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is Cane Creek DB Air IL Climb Switch 210×55, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Jeht Gen1 Trail / Platinum XTR eeWing are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 160 cm – 195 cm (5.25 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Cotic Jeht Gen1 Trail / Platinum XTR eeWing includes a dropper post. Therefore, climbing or descending will be a breeze.
