Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Cane Creek HELM
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Cane Creek HELM
Rear Shock
Cane Creek DB Air IL, Climb Switch, 210mm x 55mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle, 12-speed, 10-52 tooth
Crank
SRAM GX Eagle DUB
Bottom Bracket
SRAM DUB, 73mm BSA threaded
Chain
SRAM GX Eagle, 12-speed
Chain Guide
Cotic upper slider
Pedals
None
Wheels
Front Hub
Hunt Trail Wide wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Hunt Trail Wide wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Hunt Trail Wide wheelset
Spokes
Hunt Trail Wide wheelset
Tires
Front: WTB Verdict, Llight, Slashguard, 29" x 2.5", Rear: WTB Trail Boss, Light, Slashguard, 29" x 2.4"
Brakes
Brakes
Shimano Deore XT M8100, 2-piston, Shimano 180mm 6-bolt rotors
Brake Levers
Shimano Deore XT M8100
Cockpit
Stem
Cotic SHORTERSTEM, 35mm
Handlebar
Cotic Calver, 780mm width, 25mm rise, 5° upsweep, 9° backsweep
Grips
Cotic, lock-on
Headset
Hope 2H, ZS44/EC44
Seat
Saddle
Cotic
Seatpost
X-Fusion Manic Stealth dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 783 mm | 810 mm | 837 mm | 867 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 623 mm | 632 mm | 641 mm | 650 |
| Reach | 451 mm | 474 mm | 497 mm | 522 mm |
| Top Tube Length | 602 mm | 628 mm | 654 mm | 681 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1235 mm | 1262 mm | 1290 mm | 1319 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

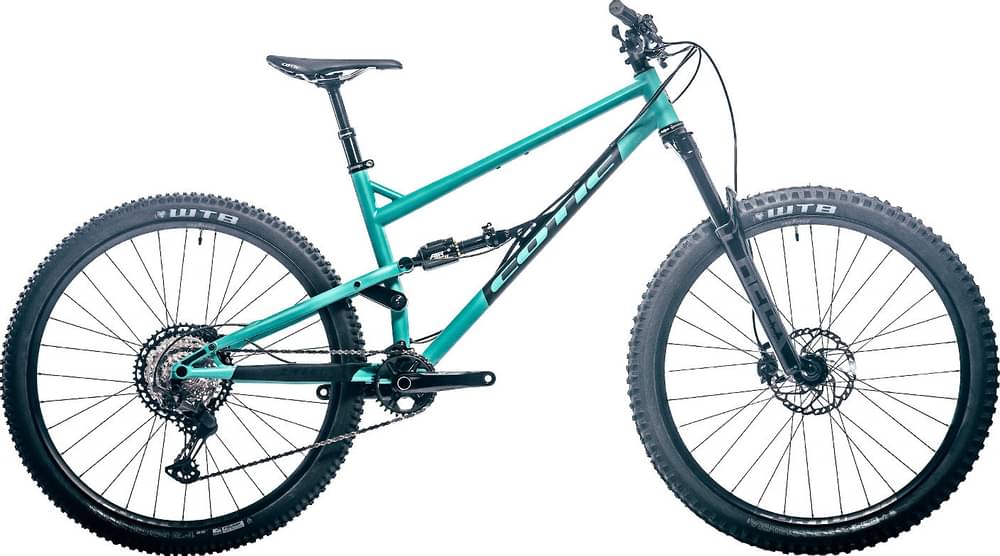

Jeht Gold GX Eagle is a Cotic Jeht model. There are 39 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Jeht Gold GX Eagle components
Fork
The Cane Creek HELM is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Cane Creek DB Air IL rear shock model, which has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Jeht Gold GX Eagle 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Jeht Gold GX Eagle has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Cotic model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
