Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Cane Creek HELM
-
Groupset X01 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Cane Creek HELM
Rear Shock
Cane Creek DB Kitsuma Air, Piggyback, 210mm x 55mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM X01 Eagle, 12-speed, 10-52 tooth
Crank
Cane Creek eeWings Ti
Bottom Bracket
Hope, stainless steel, 30mm spindle, 73mm BSA threaded
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
Cotic upper slider
Pedals
None
Wheels
Front Hub
Hunt Trail Wide wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Hunt Trail Wide wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Hunt Trail Wide wheelset
Spokes
Hunt Trail Wide wheelset
Tires
Front: WTB Verdict, Llight, Slashguard, 29" x 2.5", Rear: WTB Trail Boss, Light, Slashguard, 29" x 2.4"
Brakes
Brakes
Hope Tech 3 E4, Hope 180mm 6-bolt floating rotors
Brake Levers
Hope Tech 3 E4
Cockpit
Stem
Hope AM, 35mm
Handlebar
Burgtec Ride Wide Carbon, 800mm width, 20mm rise
Grips
Cotic, lock-on
Headset
Hope 2H, ZS44/EC44
Seat
Saddle
Fabric Scoop Radius Race Ti
Seatpost
X-Fusion Manic Stealth dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 783 mm | 810 mm | 837 mm | 867 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 623 mm | 632 mm | 641 mm | 650 |
| Reach | 451 mm | 474 mm | 497 mm | 522 mm |
| Top Tube Length | 602 mm | 628 mm | 654 mm | 681 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1235 mm | 1262 mm | 1290 mm | 1319 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

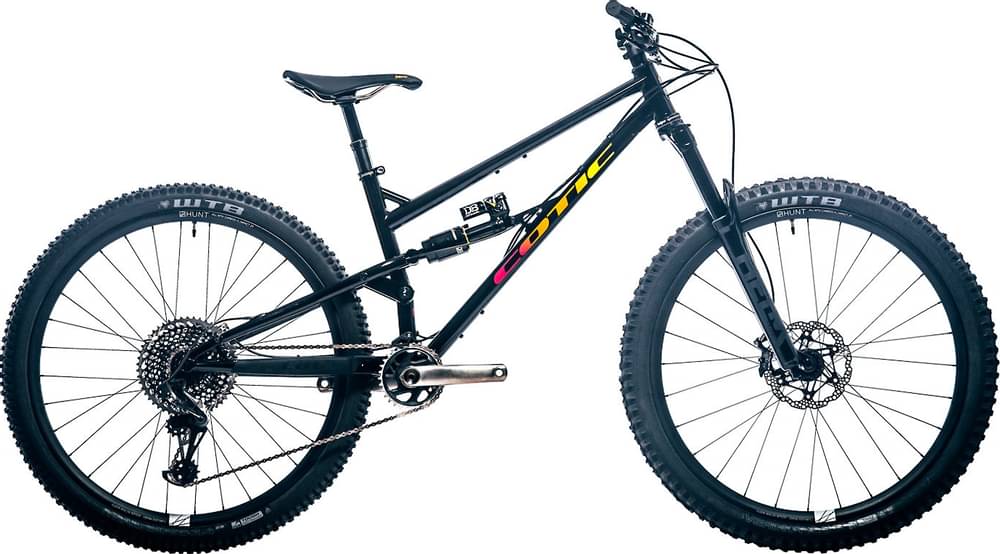

Jeht Platinum X01 Eagle eeWing is part of the Cotic Jeht model. Cotic launched 39 bikes of this model so far. Take a sneak peek at all Cotic Jeht bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Jeht Platinum X01 Eagle eeWing components
Fork
This bike has the Cane Creek HELM fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Cane Creek DB Kitsuma Air, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Cotic Jeht Platinum X01 Eagle eeWing 2021, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Jeht Platinum X01 Eagle eeWing has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
