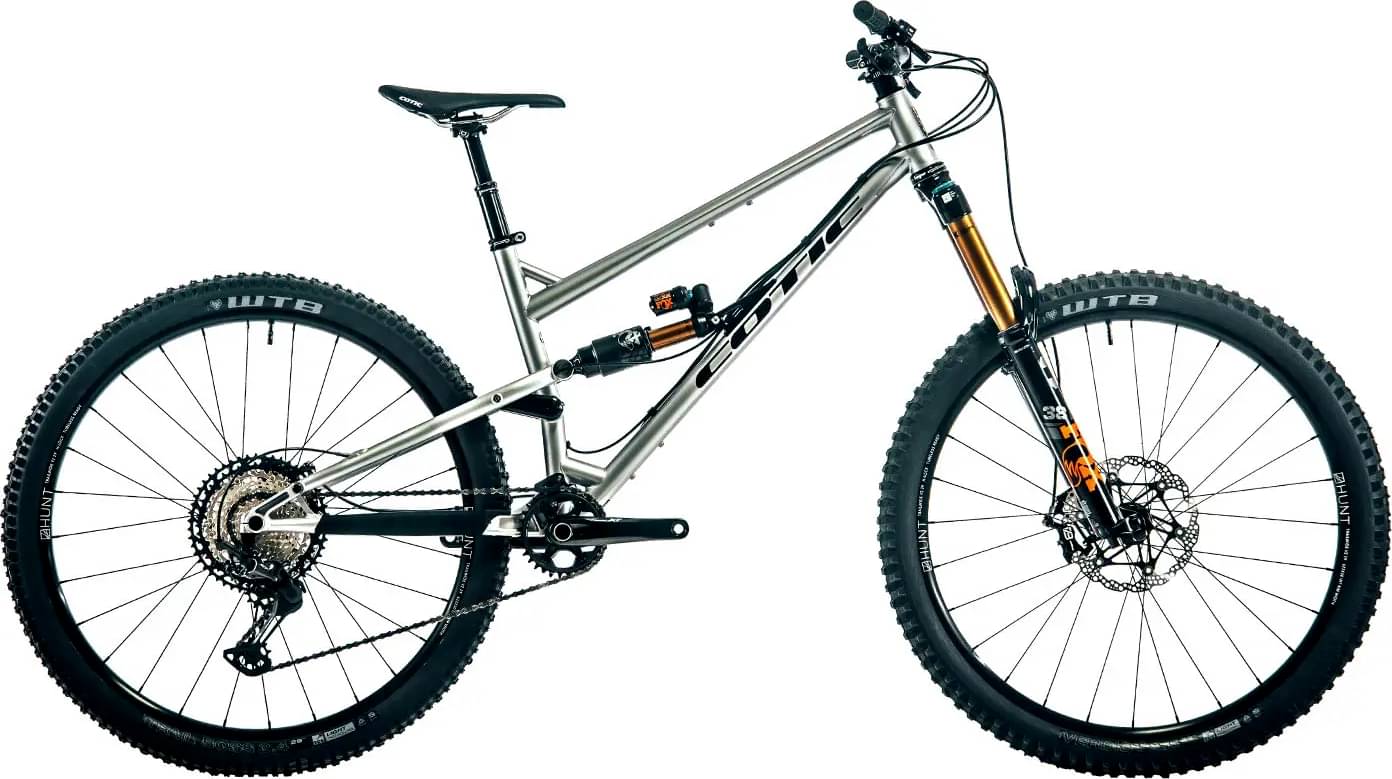

Cotic RocketMAX Enduro / Platinum XTR eeWing 2023
2023 Mountain
Estimate price |
10,705$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset XTR, Cane Creek -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox Zeb 29 Ultimate Charger 3 RC2 Gloss Black - 170mm
Rear Shock
160mm travel - Cane Creek Kitsuma Air Piggyback 230x65
Drivetrain
Rear Derailleur
XTR M9100 1x12 Drivetrain
Cassette
Garbaruk 12spd 10-52 Cassette
Crank
Cane Creek eeWings ti chainset 170mm + Garbaruk Shimano Chainring
Bottom Bracket
RaceFace 30mm BB
Wheels
Rims
Hope Fortus30 Single Cavity 29 Microspline (black Pro5 hubs)
Tires
Michelin Wild Enduro Racing Line Front/Rear 29x2.4
Brakes
Brakes
Hope standard (non-floating) rotors 203/203 6bolt for Zeb forks
Cockpit
Stem
Hope Gravity 35mm Stem 31.8mm Clamp (black)
Handlebar
Hope Carbon Bar 800 x 20mm Rise 31.8 Clamp
Headset
Hope 2H for tapered steerer (black)
Seat
Seatpost
BikeYoke Devine Seatpost 160mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.38 mm | 1.34 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 797 mm | 821 mm | 843 mm | 867 mm | 886 mm |
| Rake | 45 mm | 46 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 135 mm | 138 mm | 138 mm | 138 mm |
| Stack | 637 mm | 646 mm | 655 mm | 664 mm | 664 mm |
| Reach | 451 mm | 469 mm | 489 mm | 508 mm | 527 mm |
| Top Tube Length | 606 mm | 628 mm | 646 mm | 667 mm | 686 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 496 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1251 mm | 1275 mm | 1297 mm | 1321 mm | 1340 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
About this model
RocketMAX Enduro / Platinum XTR eeWing belongs to the Cotic Rocketmax model. Cotic released 40 bikes variations of this model so far. You can easily view all of the Cotic Rocketmax bikes models from 2023, here.
Model range prices
The most economical model, the Cotic RocketMAX Silver SLX 2023 has a starting price of 5533$. Cotic RocketMAX Enduro / Platinum XTR eeWing 2023 on the other hand is the most expensive at 9730$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9730$. In conclusion, this bike price is 170.35% more expensive than the price of the average Enduro bike.
Overview of components
Fork
The fork installed on this bike is the RockShox ZEB model. The travel on this model is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the 160mm travel – Cane Creek Kitsuma Air Piggyback 230×65 model, with a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The RocketMAX Enduro / Platinum XTR eeWing 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Cotic RocketMAX Enduro / Platinum XTR eeWing has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Cotic RocketMAX Enduro / Platinum XTR eeWing bike has 5 sizes, in the range of 162 cm – 195 cm (5.31 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Cotic RocketMAX Enduro / Platinum XTR eeWing comes with a dropper post. Therefore, climbing or descending will be a breeze.
