Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Cane Creek HELM
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Cane Creek HELM
Rear Shock
Cane Creek DB Air IL, Climb Switch, 200mm x 57mm
Drivetrain
Rear Derailleur
Shimano XT M8100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano XT M8100, 12-speed
Cassette
Shimano XT, 12-speed, 10-51 tooth
Crank
Shimano XT M8100
Bottom Bracket
Shimano XT M800, 73mm BSA threaded
Chain
Shimano XT M8100, 12-speed
Chain Guide
OneUp Top Guide
Pedals
N/A
Wheels
Front Hub
Hope Fortus 26 wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
Hope Fortus 26 wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear
Rims
Hope Fortus 26 wheelset
Spokes
Hope Fortus 26 wheelset
Tires
Front: WTB Verdict, Slashguard, tubeless kit, 29" x 2.5", Rear: WTB Judge, Tough, tubeless kit, 29" x 2.4"
Brakes
Brakes
Shimano Deore XT M8100, Shimano 180mm 6-bolt rotors
Brake Levers
Shimano Deore XT M8100
Cockpit
Stem
Cotic SHORTERSTEM, 35mm
Handlebar
Cotic Calver, 780mm width, 25mm rise, 5° upsweep, 9° backsweep
Grips
Cotic, lock-on
Headset
Hope 2H, ZS44/EC44
Seat
Saddle
Cotic
Seatpost
X-Fusion Manic Stealth dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 787 mm | 815 mm | 843 mm | 872 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 627.4 mm | 636.3 mm | 645.3 mm | 654.2 mm |
| Reach | 450 mm | 474 mm | 497 mm | 522 mm |
| Top Tube Length | 611 mm | 638 mm | 664 mm | 693 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1241 mm | 1269 mm | 1297 mm | 1326 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

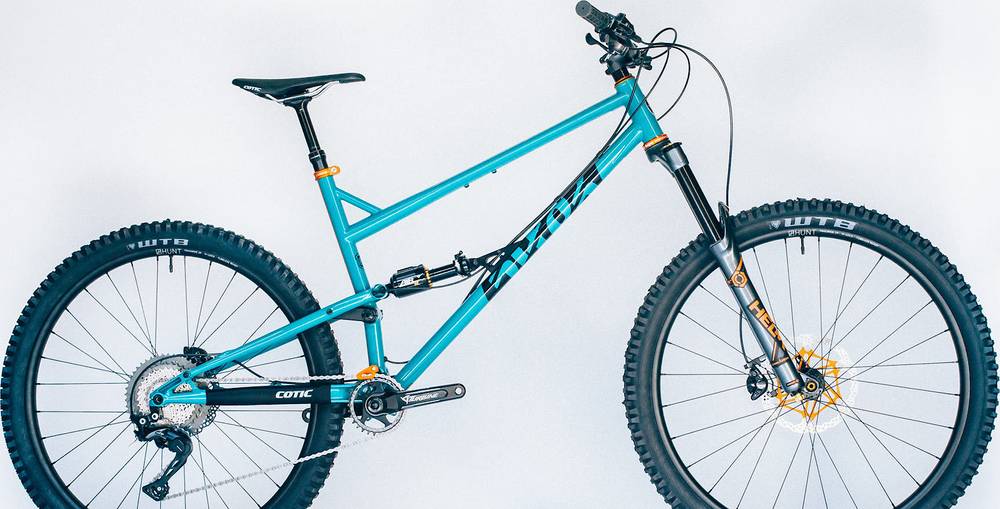

Model Overview
RocketMAX Gen2 Gold Deore XT completes the Cotic Rocketmax model. There are 40 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
RocketMAX Gen2 Gold Deore XT components
Fork
This bike has the Cane Creek HELM fork installed. The fork’s travel is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Cane Creek DB Air IL rear shock model, which has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the RocketMAX Gen2 Gold Deore XT model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The RocketMAX Gen2 Gold Deore XT comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
RocketMAX Gen2 Gold Deore XT comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the RocketMAX Gen2 Gold Deore XT. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
