Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
RockShox Lyrik Ultimate
Rear Shock
Cane Creek DB Air, Climb Switch, 230mm x 62.5mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM X01 Eagle, 12-speed, 10-50 tooth
Crank
Cane Creek eeWings titanium
Bottom Bracket
Race Face, 30mm spindle, 73mm BSA threaded
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
OneUp Top Guide
Pedals
N/A
Wheels
Front Hub
Hunt Trail Wide wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Hunt Trail Wide wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Hunt Trail Wide wheelset
Spokes
Hunt Trail Wide wheelset
Tires
Front: WTB Verdict, Slashguard, tubeless kit, 29" x 2.5", Rear: WTB Judge, Tough, tubeless kit, 29" x 2.4"
Brakes
Brakes
Hope Tech 3 E4, Hope Tech floating 6-bolt rotors (203mm front, 180mm rear)
Brake Levers
Hope Tech 3 E4
Cockpit
Stem
DMR Defy, 35mm
Handlebar
Burgtec Ride Wide Carbon, 800mm width, 20mm rise
Grips
Cotic, lock-on
Headset
Cane Creek 40 Series, ZS44/EC44
Seat
Saddle
Cotic
Seatpost
X-Fusion Manic Stealth dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 787 mm | 815 mm | 843 mm | 872 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 627.4 mm | 636.3 mm | 645.3 mm | 654.2 mm |
| Reach | 450 mm | 474 mm | 497 mm | 522 mm |
| Top Tube Length | 611 mm | 638 mm | 664 mm | 693 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1241 mm | 1269 mm | 1297 mm | 1326 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

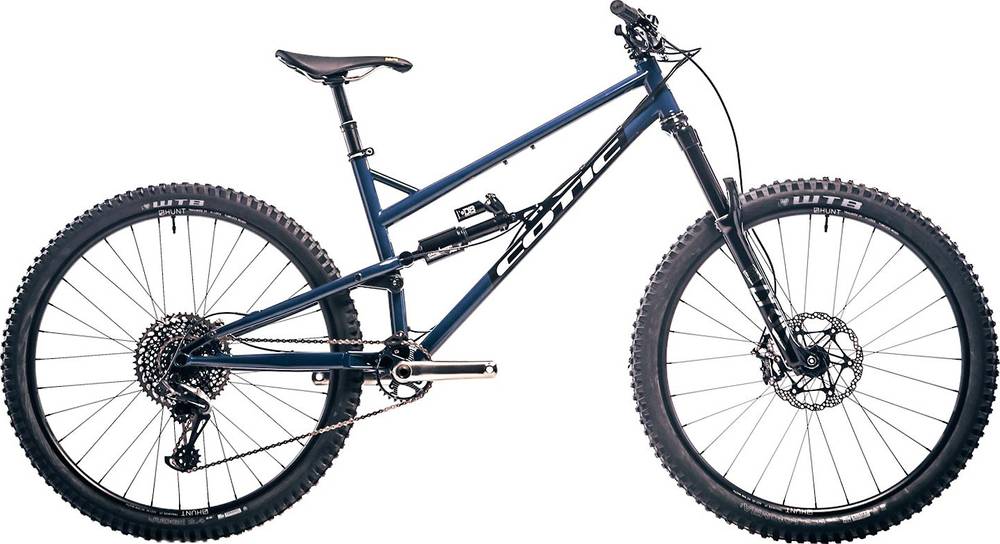

RocketMAX Platinum X01 Eagle eeWings is a Cotic Rocketmax model. Cotic launched 40 bikes of this model so far. Take a sneak peek at all Cotic Rocketmax bikes models from 2020, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The RockShox Lyrik Ultimate is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Cane Creek DB Air model, with a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the RocketMAX Platinum X01 Eagle eeWings bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The RocketMAX Platinum X01 Eagle eeWings has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the RocketMAX Platinum X01 Eagle eeWings. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
