Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Fork Cane Creek HELM
-
Groupset X01 Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Cane Creek HELM
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM X01 Eagle, 12-speed, 10-50 tooth
Crank
Cane Creek eeWings Ti
Bottom Bracket
Race Face, 30mm spindle, 73mm BSA threaded
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Hunt All Mountain Carbon wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Hunt All Mountain Carbon wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Hunt All Mountain Carbon wheelset
Spokes
Hunt All Mountain Carbon wheelset
Tires
Front: WTB Verdict, tubeless kit, 29" x 2.5", Rear: WTB Trail Boss, Slashguard, tubeless kit, 29" x 2.4"
Brakes
Brakes
Hope Tech3 X2, Hope 6-bolt floating rotors (203mm front, 180mm rear)
Brake Levers
Hope Tech3 X2
Cockpit
Stem
Hope AM, 35mm
Handlebar
Burgtec Ride Wide Carbon, 800mm width, 20mm rise
Grips
Cotic, lock-on
Headset
Hope 2H, ZS44/EC44
Seat
Saddle
Cotic
Seatpost
X-Fusion Manic Stealth dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.31 mm | 1.27 mm | 1.22 mm |
| Bottom Bracket Height | 317 mm | 317 mm | 317 mm | 317 mm |
| Front Center | 735 mm | 758 mm | 784 mm | 816 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 119 mm | 119 mm | 120 mm | 119 mm |
| Stack | 609.7 mm | 609.7 mm | 618.9 mm | 627.1 mm |
| Reach | 443.6 mm | 466.3 mm | 489 mm | 516 mm |
| Top Tube Length | 620.8 mm | 643.8 mm | 668.6 mm | 698.5 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1180 mm | 1203 mm | 1229 mm | 1261 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

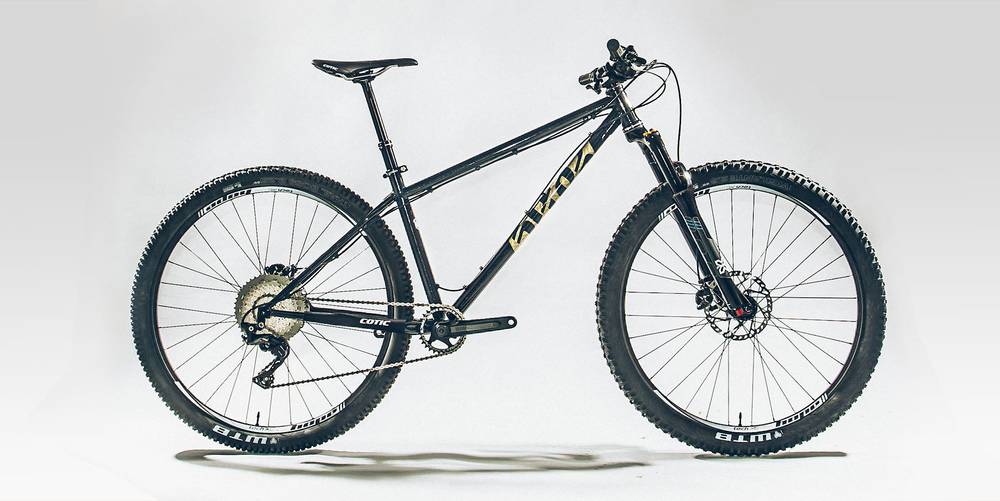

SolarisMAX Platinum X01 Eagle is part of the Cotic Solarismax model. Cotic released 22 bikes variations of this model so far. Take a sneak peek at all Cotic Solarismax bikes models from 2020, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The SolarisMAX Platinum X01 Eagle comes factory-installed with the Cane Creek HELM fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The SolarisMAX Platinum X01 Eagle 2020 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cotic SolarisMAX Platinum X01 Eagle is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Cotic SolarisMAX Platinum X01 Eagle bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
