Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 120mm -
Fork X Fusion
-
Groupset SLX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
X-Fusion McQueen RL2, Boost 110x15mm thru-axle, tapered steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX M7000, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000, 11-speed
Cassette
Shimano SLX M7000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect Cinch, 175mm length, direct mount
Bottom Bracket
Threaded BSA, 73mm
Chain
Shimano SLX M7000, 11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Shimano SLX
Rear Hub
Shimano SLX
Rims
WTB ST i25
Tires
Continental Trail King, 29" x 2.2"
Brakes
Brakes
Deore M615, 180mm rotors
Brake Levers
Deore M615
Cockpit
Stem
Cotic (35mm or 45mm)
Handlebar
Cotic Calver, 780mm width, 25mm rise
Headset
Cane Creek 40 Series
Seat
Saddle
Cotic Cromo Rail
Seatpost
Race Face Ride
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.29 mm | 1.25 mm | 1.2 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 734 mm | 757 mm | 783 mm | 815 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 116 mm | 116 mm | 117 mm | 116 mm |
| Stack | 607.3 mm | 607.3 mm | 616.4 mm | 625.6 mm |
| Reach | 447.6 mm | 470.3 mm | 493 mm | 520 mm |
| Top Tube Length | 619.8 mm | 642.8 mm | 667.6 mm | 697.5 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 425 mm | 460 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1178 mm | 1201 mm | 1227 mm | 1259 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

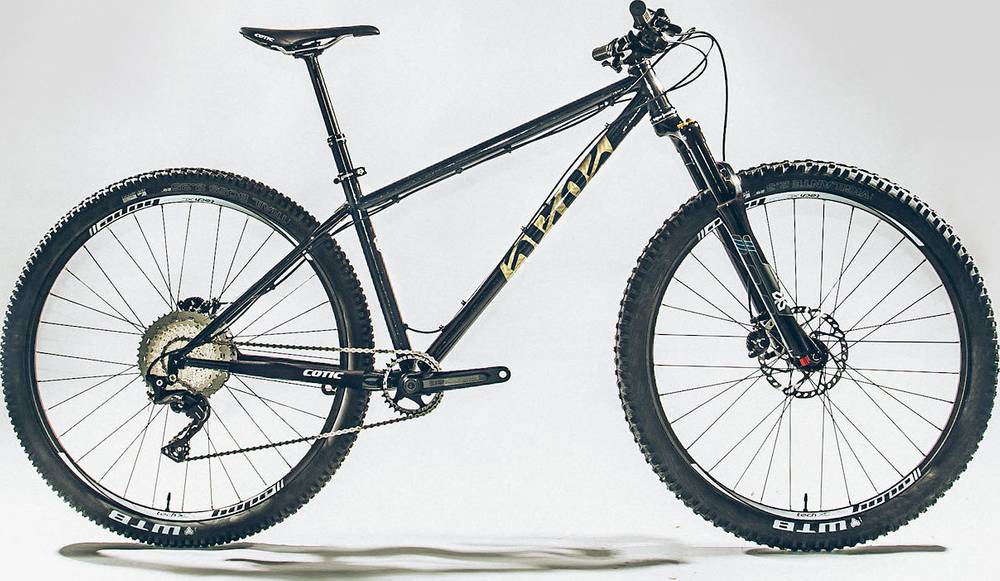

SolarisMAX Silver 29 is part of the Cotic Solarismax model. Cotic launched 22 bikes of this model so far. You can easily view all of the Cotic Solarismax bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The SolarisMAX Silver 29 comes factory-installed with the X Fusion fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Cotic SolarisMAX Silver 29 2018, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Cotic SolarisMAX Silver 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
