Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 120mm -
Fork X Fusion
-
Groupset XT, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
X-Fusion Sweep HLR, 15mm axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT M8000
Front Derailleur
N/A
Shift Levers
Shimano Deore XT M8000, 11-speed
Cassette
Shimano Deore XT M8000, 11-42 or 11-46 tooth, 11-speed
Crank
Race Face Turbine Cinch, 175mm length, direct mount
Bottom Bracket
Conventional English/BSA, 73mm
Chain
11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Hope Pro 2 EVO, Boost
Rear Hub
Hope Pro 2 EVO, Boost
Rims
Hope Hoops Tech XC
Spokes
Standard
Tires
Front: WTB Vigilante, 2.3" TCS Light Fast Rolling, Rear: WTB Trail Boss, 2.25" Light Fast Rolling
Brakes
Brakes
Shimano Deore XT M8000 with 180mm front/160mm rear rotors
Brake Levers
Shimano Deore XT M8000
Cockpit
Stem
Cotic Short, 35mm or 45mm
Handlebar
Cotic Calver Bar, 780mm width, 25° rise
Headset
Hope
Seat
Saddle
Cotic, cromo rails
Seatpost
Race Face Turbine, 125mm or 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.32 mm | 1.28 mm | 1.24 mm |
| Bottom Bracket Height | 317 mm | 317 mm | 317 mm | 317 mm |
| Stack | 573.5 mm | 573.5 mm | 582.7 mm | 592 mm |
| Reach | 411 mm | 434 mm | 457 mm | 479 mm |
| Top Tube Length | 587 mm | 610 mm | 635 mm | 664 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 365 mm | 390 mm | 425 mm | 460 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

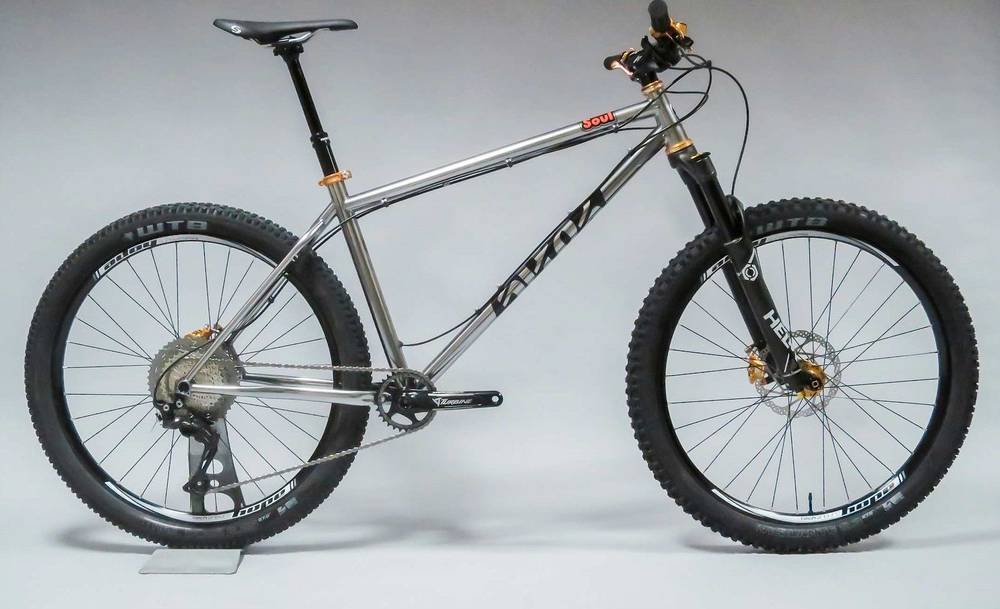

About this model
Soul Gold Build is part of the Cotic Soul model. 9 bikes variations carry this model name so far. You can easily view all of the Cotic Soul bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The X Fusion is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Soul Gold Build are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cotic Soul Gold Build is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Cotic model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
