Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

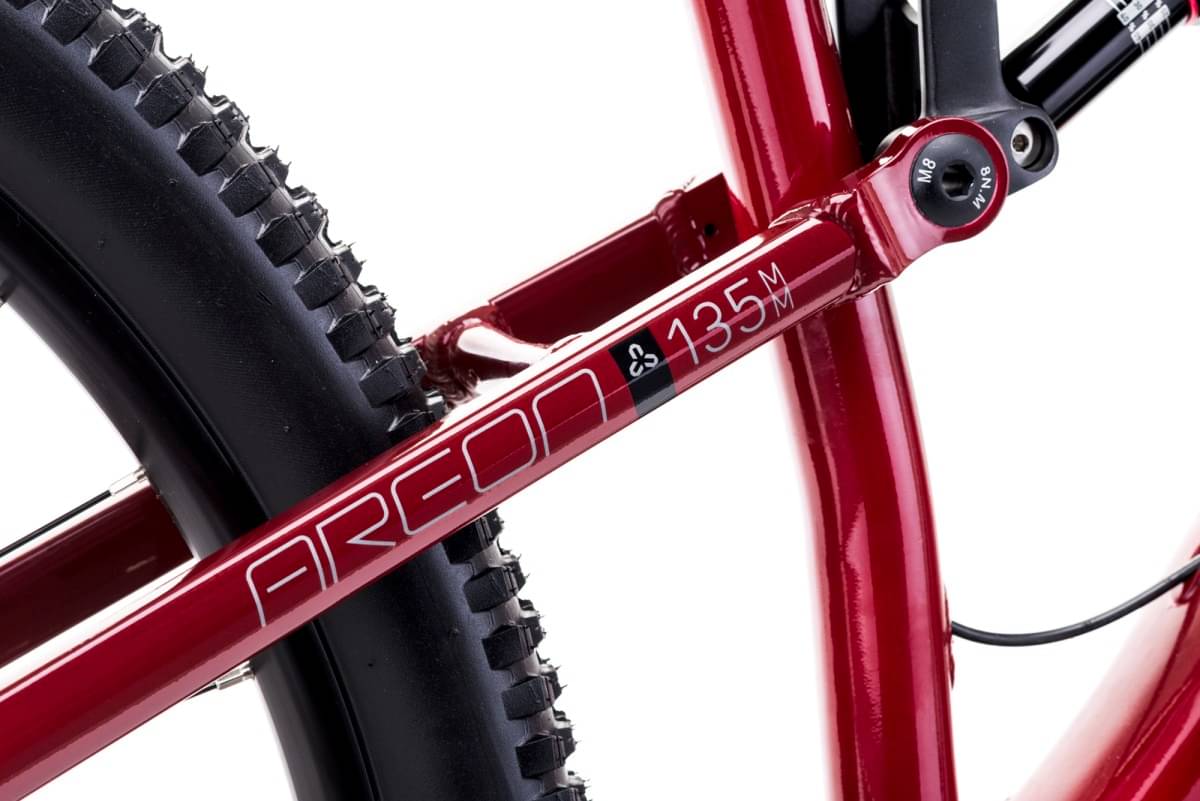

Frame
ALU 6061, rear travel 135 mm, M (17"), L (19"), XL (21")
Suspension Fork
Rock Shox RECON SILVER RL, SA, 140mm, boost™ 15x110axle
Drivetrain

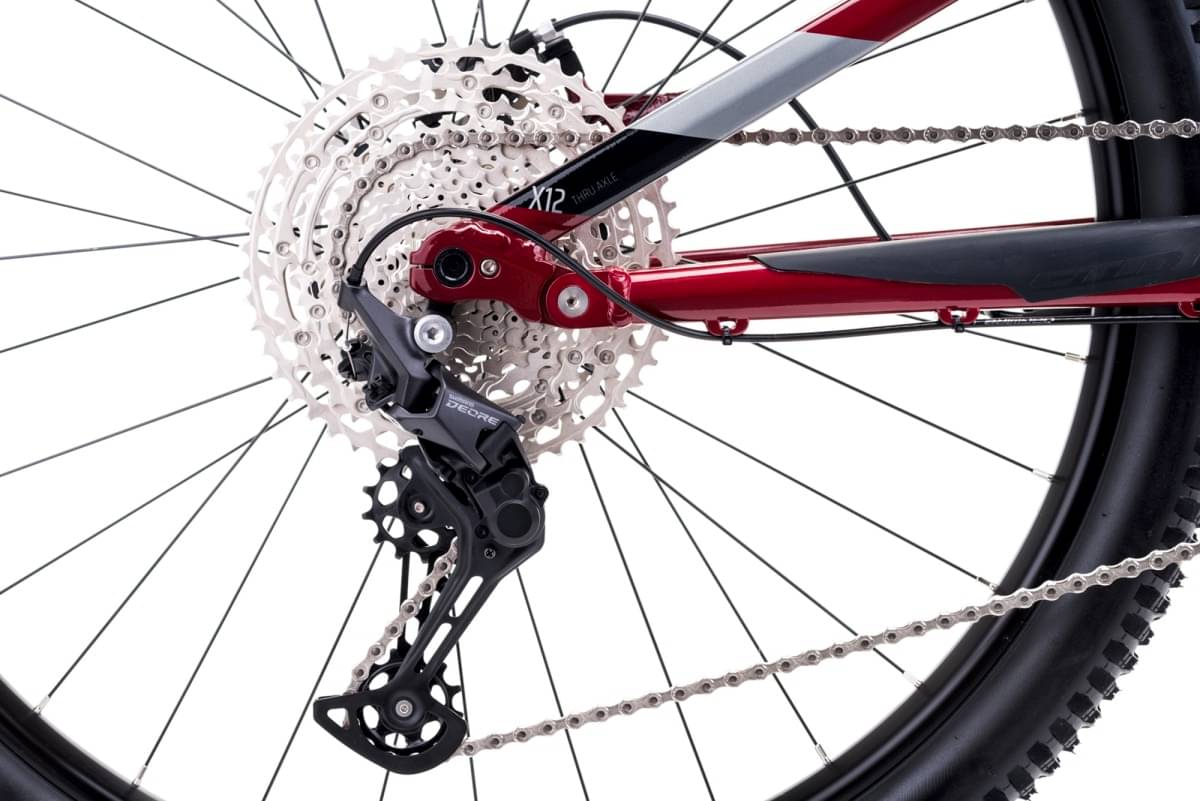

Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100/11sp.
Crank
Bafang 38T, 170mm
Chain
KMC X11e 128L
Pedals
VPE-527
Wheels
Rear Hub
Shimano MT400 boost / 32H
Rims
WTB ST i29 TCS 2.0 29" 32H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
ZOOM HB875/CL180
Cockpit
Stem
CTM ASM03 45 mm
Handlebar
CTM rise bar, 31.8dia, 760mm
Headset
NECO H156
Seat
Saddle
CTM FLAT
Seatpost
EXA Form KSP900 (M-125mm/L,XL-150mm)
Motor & Battery

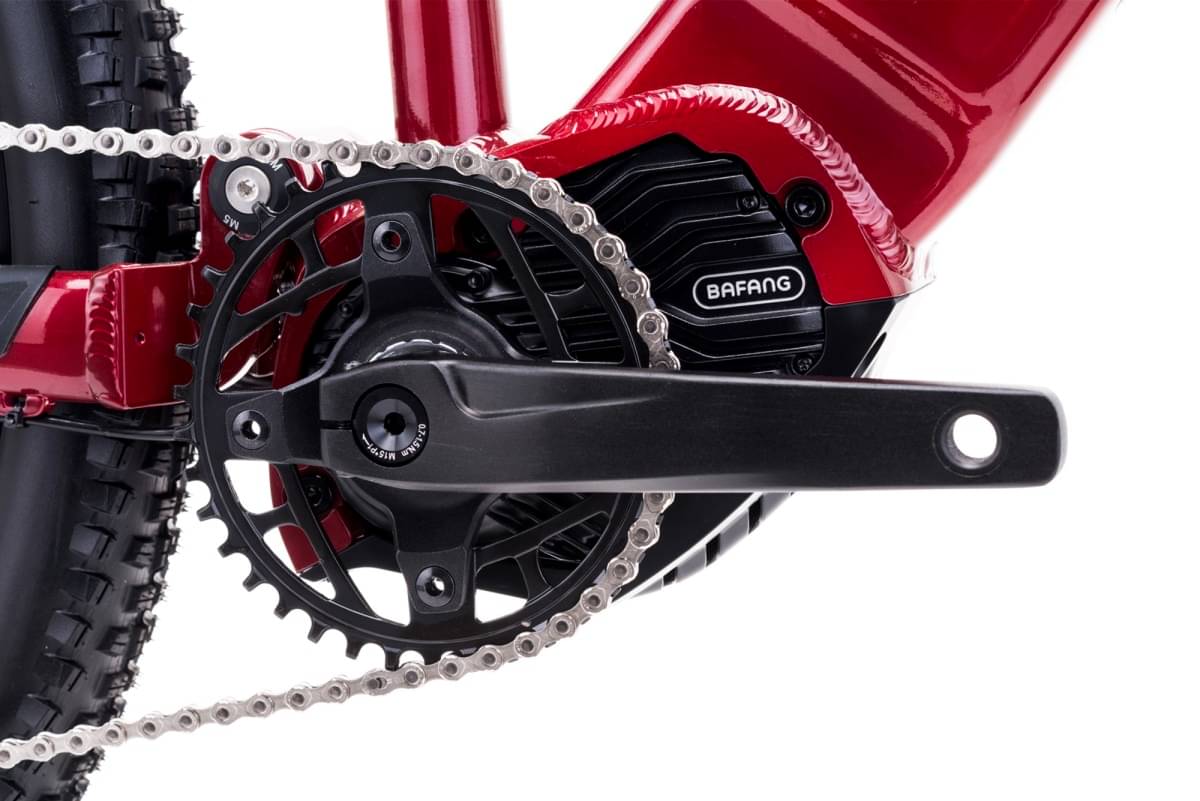

Motor
BAFANG M500 / 250W / 95Nm
Battery
630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.28 mm |
| Front Center | 758 mm | 778 mm | 798 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Stack | 636 mm | 636 mm | 636 mm |
| Reach | 456 mm | 476 mm | 496 mm |
| Top Tube Length | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 440 mm | 483 mm | 533 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1231 mm | 1251 mm | 1271 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |

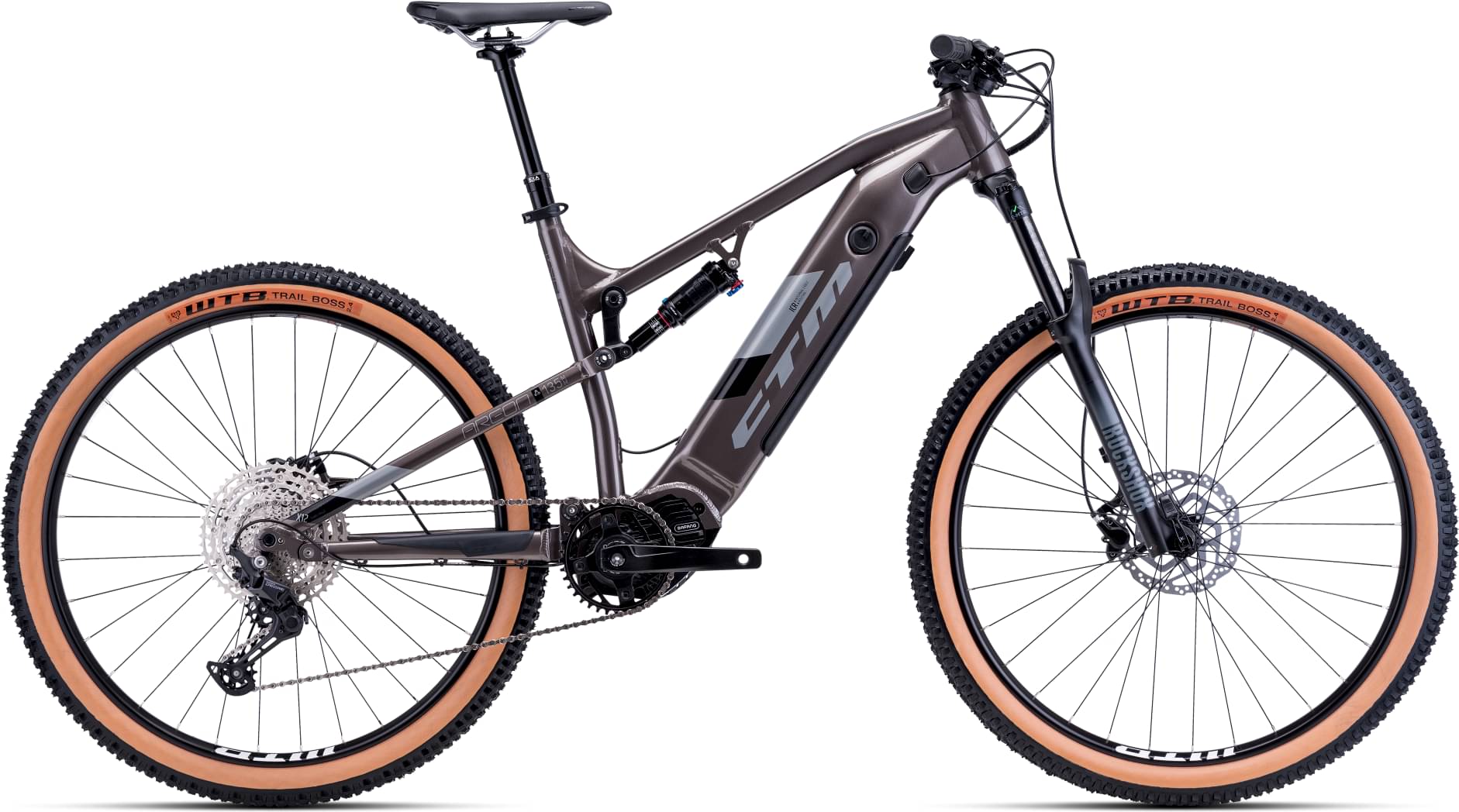

Model Overview
AREON XPERT is part of the Ctm E Areon model. CTM released 6 e-bikes variations of this model so far. You can easily view all of the Ctm E Areon e-bikes models from 2022, here.
Model range prices
CTM AREON 2022 is the most affordable e-bike of this model and has a price of 2972$. On the other hand, CTM AREON XPERT 2022, is the most expensive and costs 3184$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When CTM released this model in 2022, its price was 3184$. Comparing the average cost of a Trail e-bike to this one, you will see that AREON XPERT price is 5.68% smaller.
AREON XPERT components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the AREON XPERT e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. CTM AREON XPERT is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
CTM AREON XPERT includes a dropper post. Therefore, climbing or descending will be a breeze.
