Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
160cm - 170cm
SM
165cm - 176cm
MD
174cm - 186cm
LG
184cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components

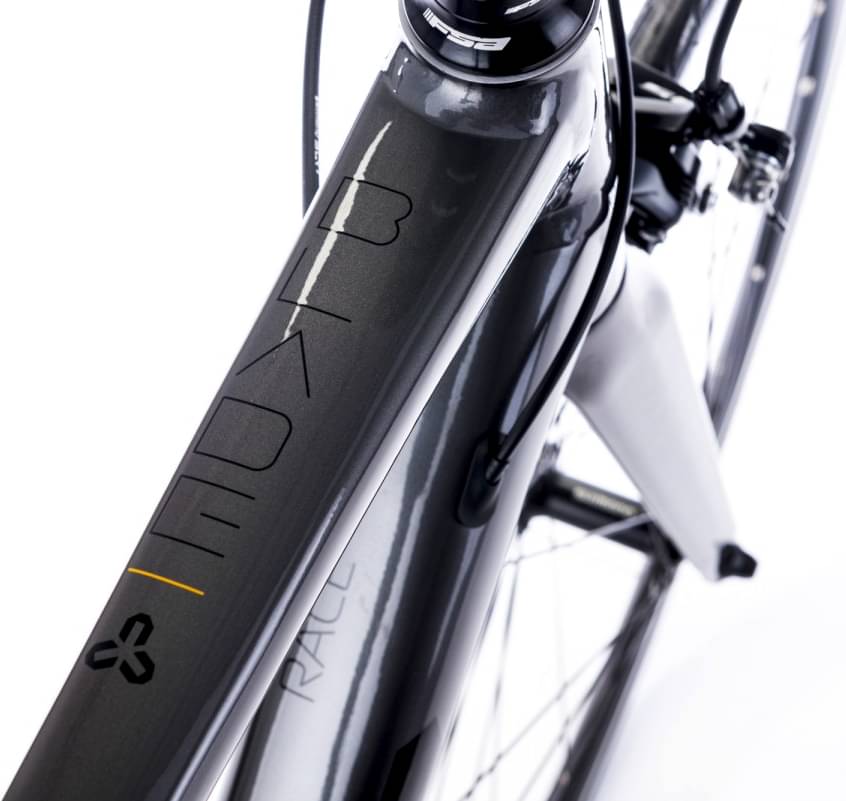

Frame
Frame
ALU 6061 double butted, 520, 540, 560, 580, 600mm
Suspension Fork
REXROC ALU Fork
Drivetrain

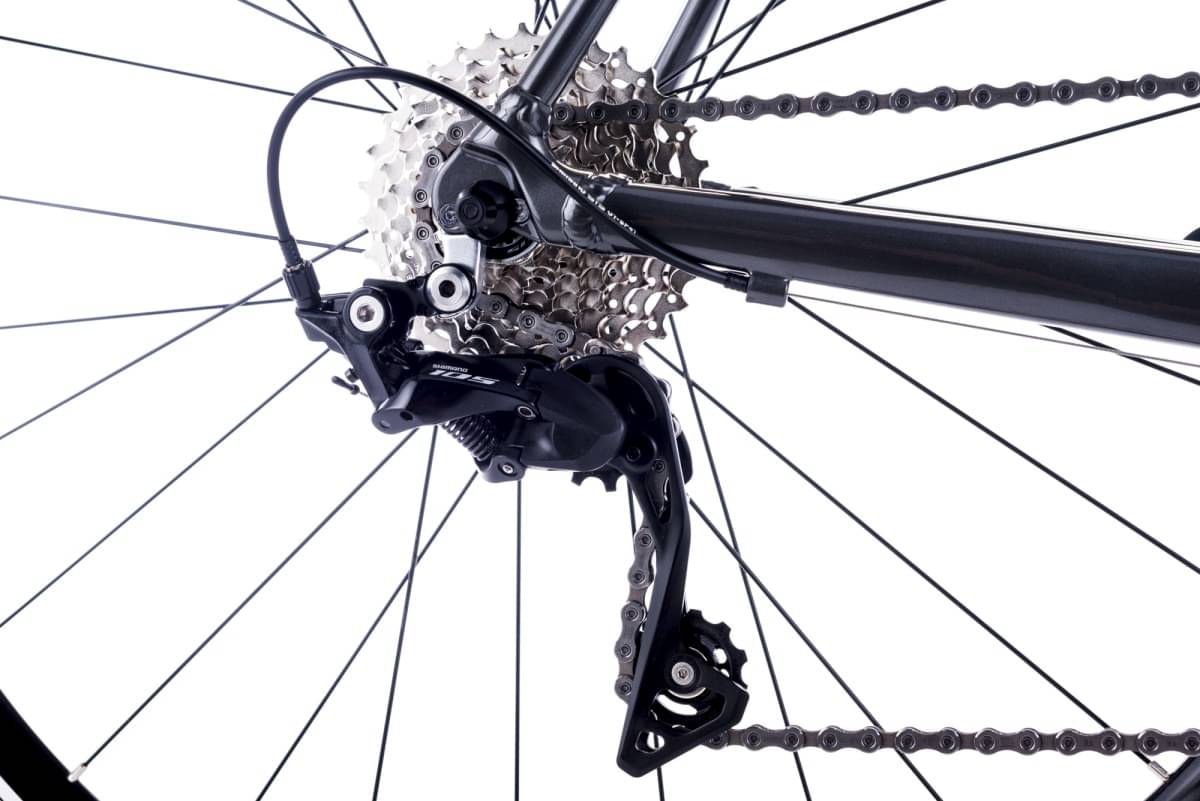

Rear Derailleur
Shimano 105 RD-R7000
Shift Levers
Shimano 105 ST-R7000 11s.

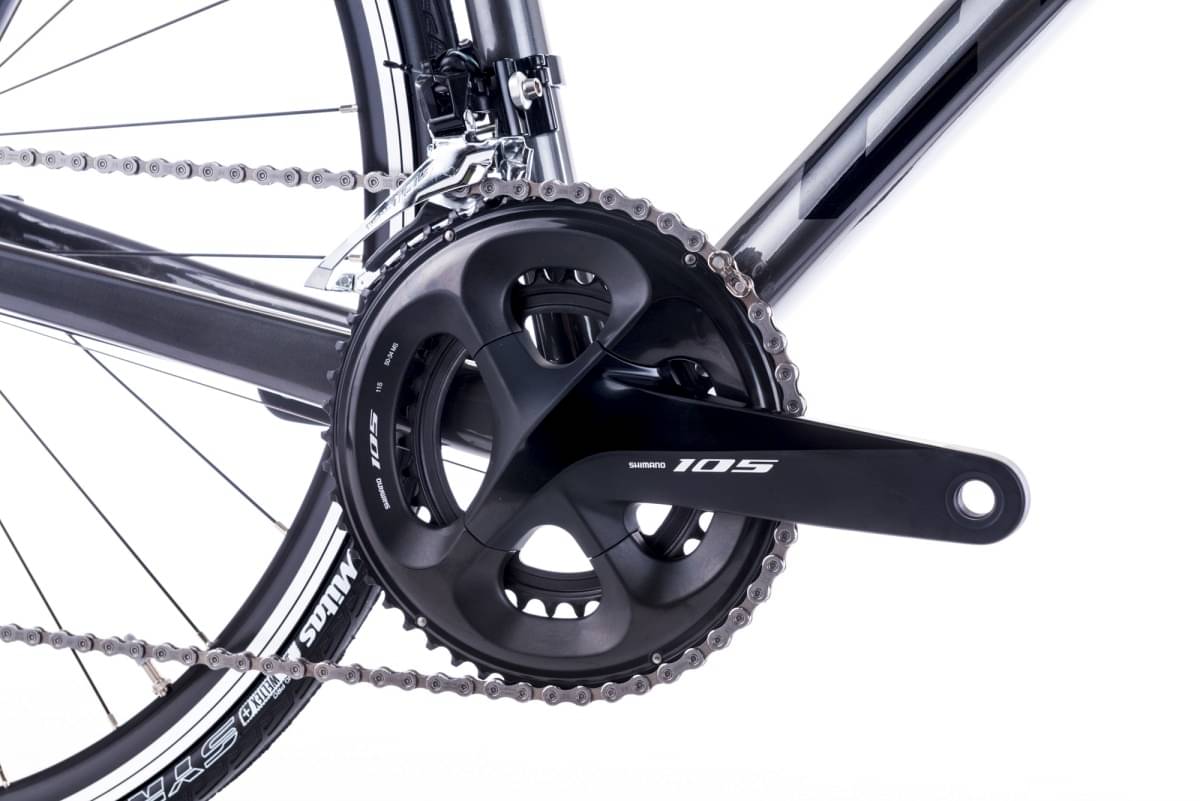

Crank
Shimano 105 FC-R7000 50/34T (520, 540-170mm / 560,580,600-175mm)
Chain
Shimano CNHG60
Wheels
Rear Hub
Shimano Tiagra RS400, 28H
Rims
Remerx RAPID 622 28H
Tires
Mitas SYRINX RACING PRO 700 x 25C
Brakes
Brakes
Shimano 105 BR-R7000
Cockpit
Stem
CTM ASM01 110mm

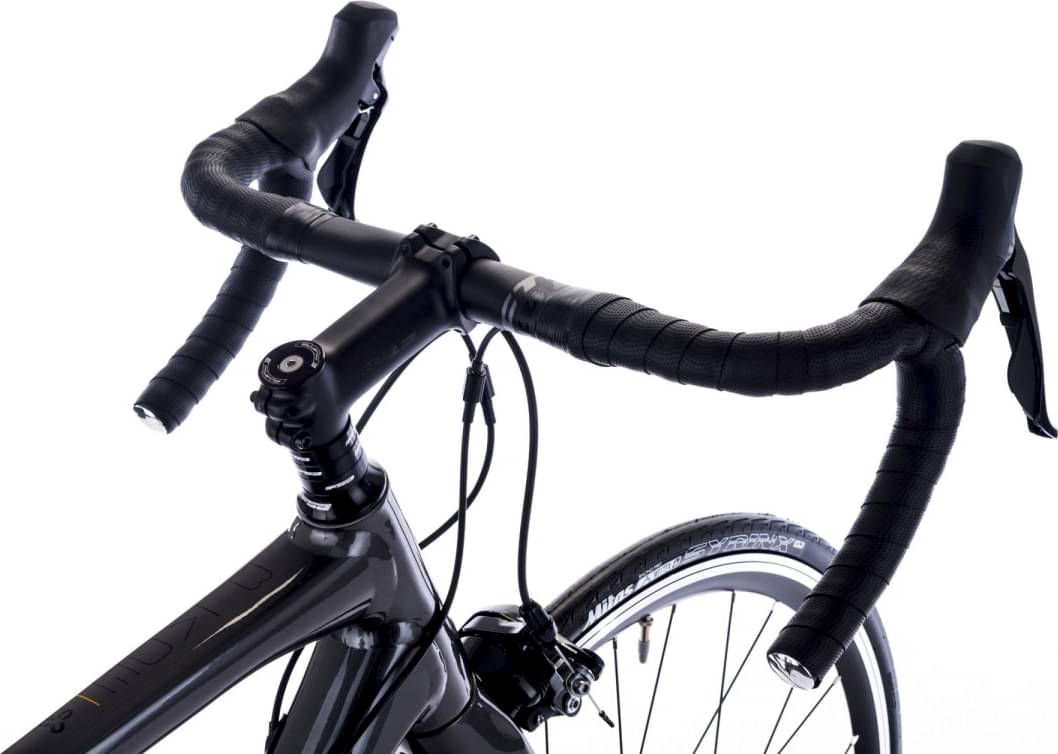

Handlebar
CTM
Headset
FSA Orbit C40, ACB
Seat
Saddle
CTM FLAT
Seatpost
CTM SPDC1 350/400x27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.43 mm | 1.43 mm | 1.45 mm | 1.48 mm |
| Front Center | 560 mm | 580 mm | 595 mm | 605 mm | 614 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 547 mm | 547 mm | 562 mm | 581 mm | 600 mm |
| Reach | 362 mm | 382 mm | 392 mm | 401 mm | 405 mm |
| Top Tube Length | 524 mm | 544 mm | 559 mm | 579 mm | 594 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 140 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm |
| Wheelbase | 954 mm | 974 mm | 989 mm | 1000 mm | 1012 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 174 cm | 184 cm | 189 cm |
| Rider Max Height | 170 cm | 176 cm | 186 cm | 191 cm | 200 cm |

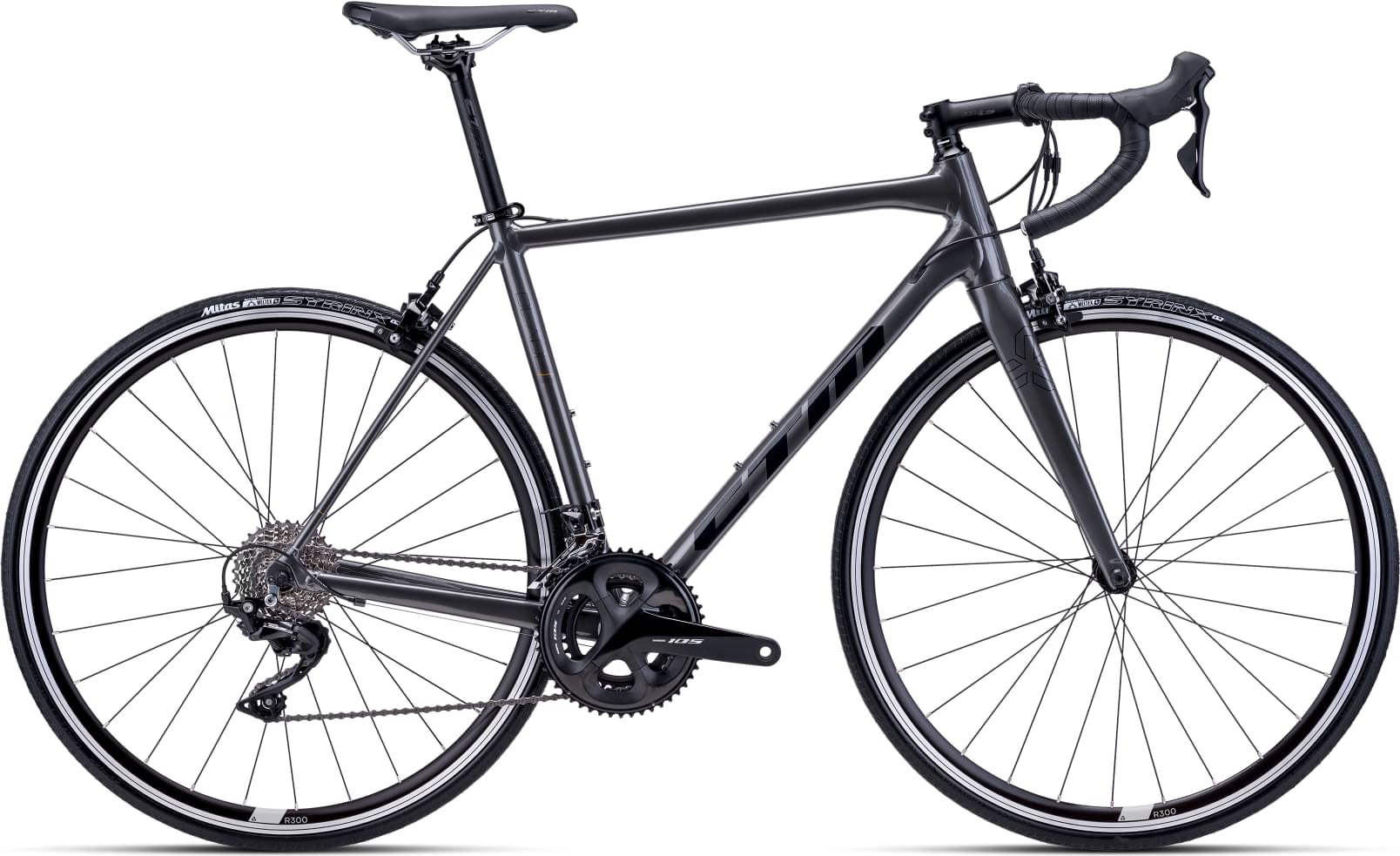

About this model
BLADE RACE belongs to the Ctm Blade model. There are 4 bikes that carry this model name. Take a sneak peek at all Ctm Blade bikes models from 2022, by clicking here.
Model range prices
CTM BLADE COMP 2022 is the most economical model, with a starting price of 1061$. CTM BLADE RACE 2022 on the other hand costs 1220$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 1220$. Comparing this to the average Race bike price, we see that the price is 174.59% lower.
Overview of components

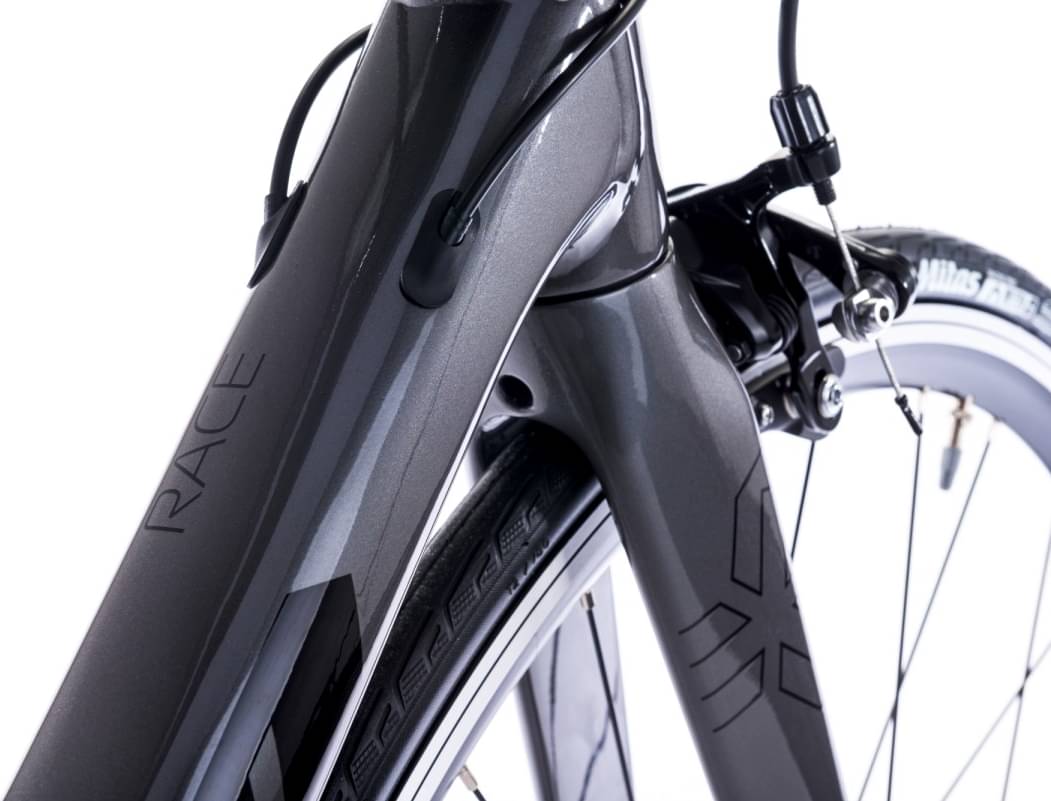

Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The BLADE RACE 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.

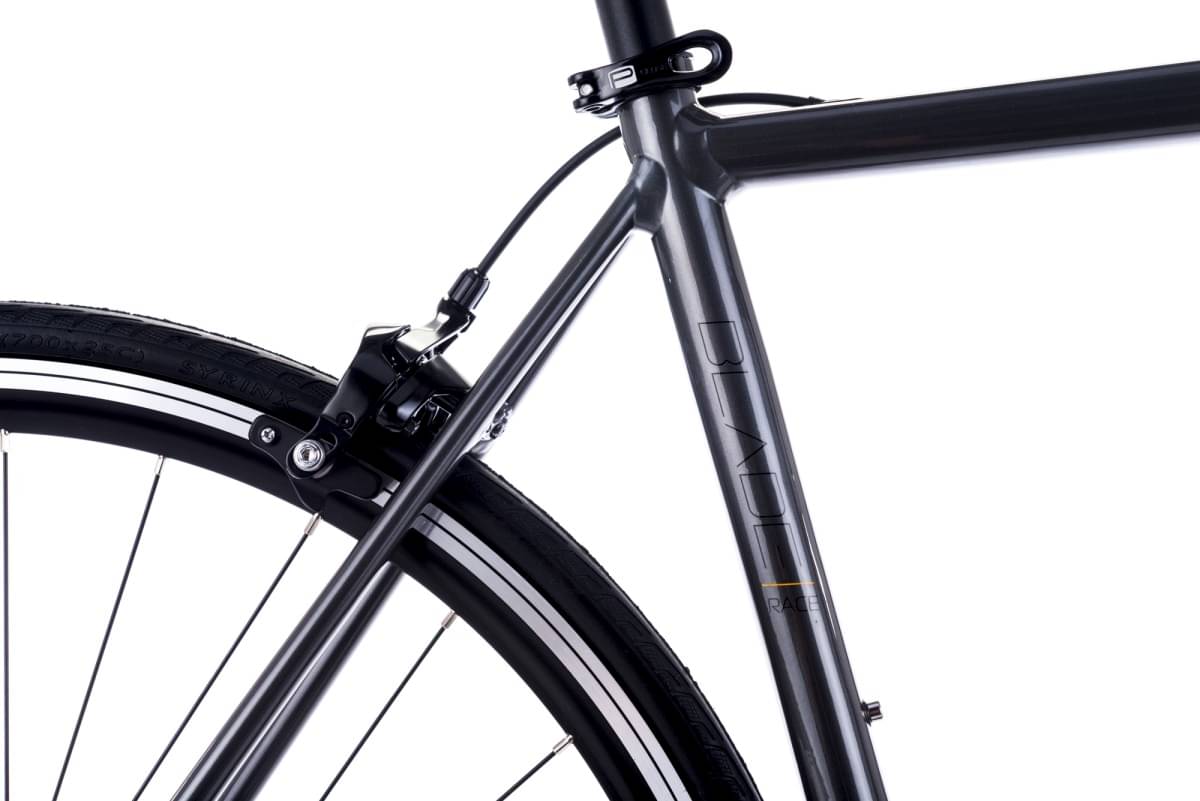

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BLADE RACE comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
This bike is available in 5 sizes. They vary from 160 cm – 200 cm (5.25 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
