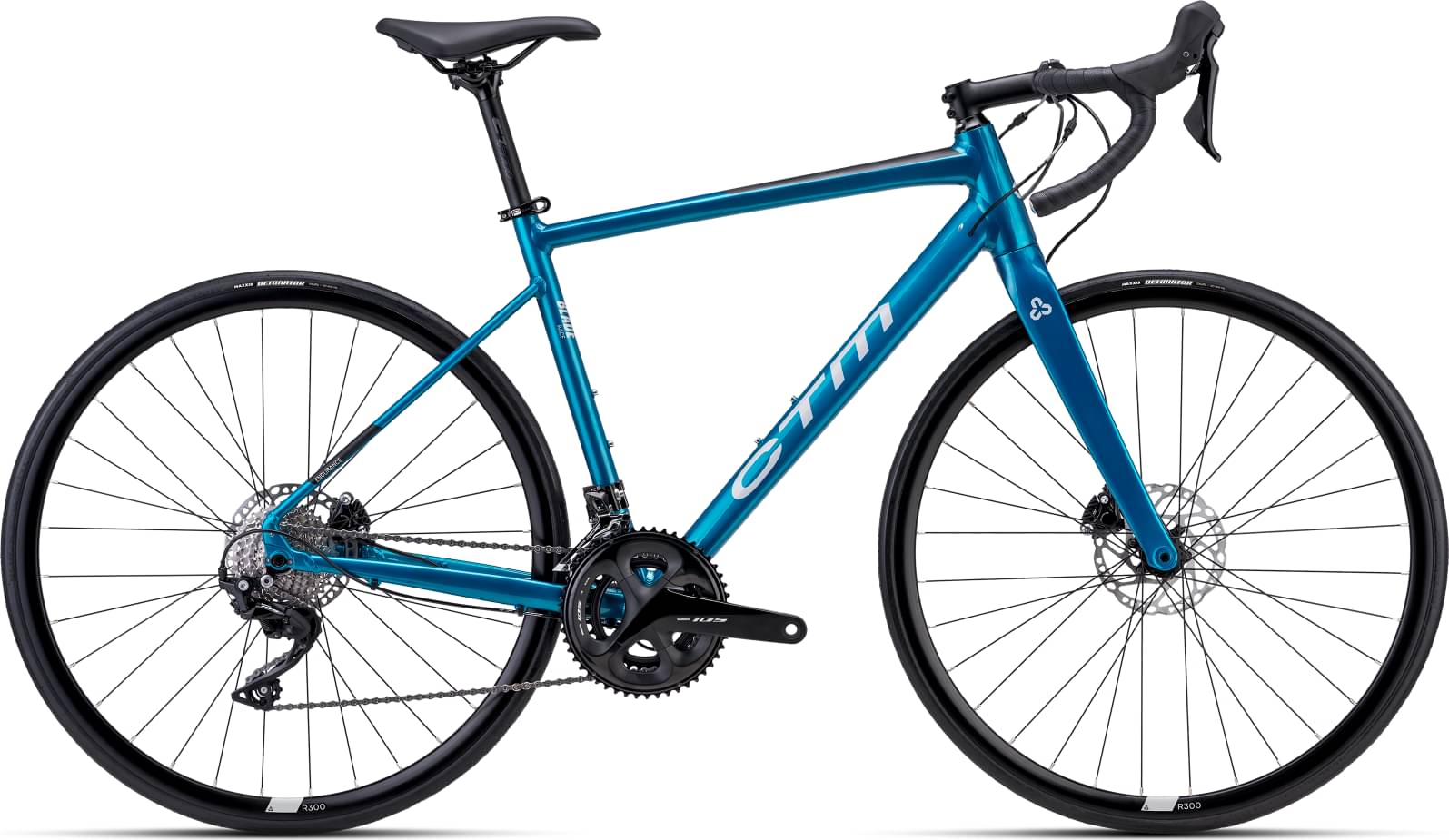

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

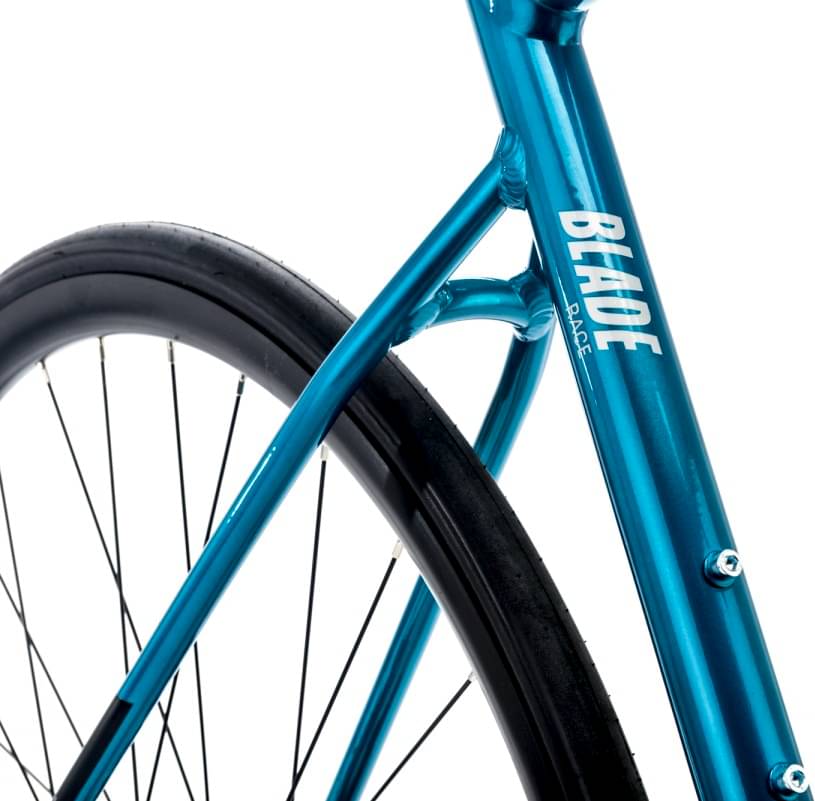

Frame
Frame
ALU 6061 double butted, 520, 540, 560, 580, 600mm

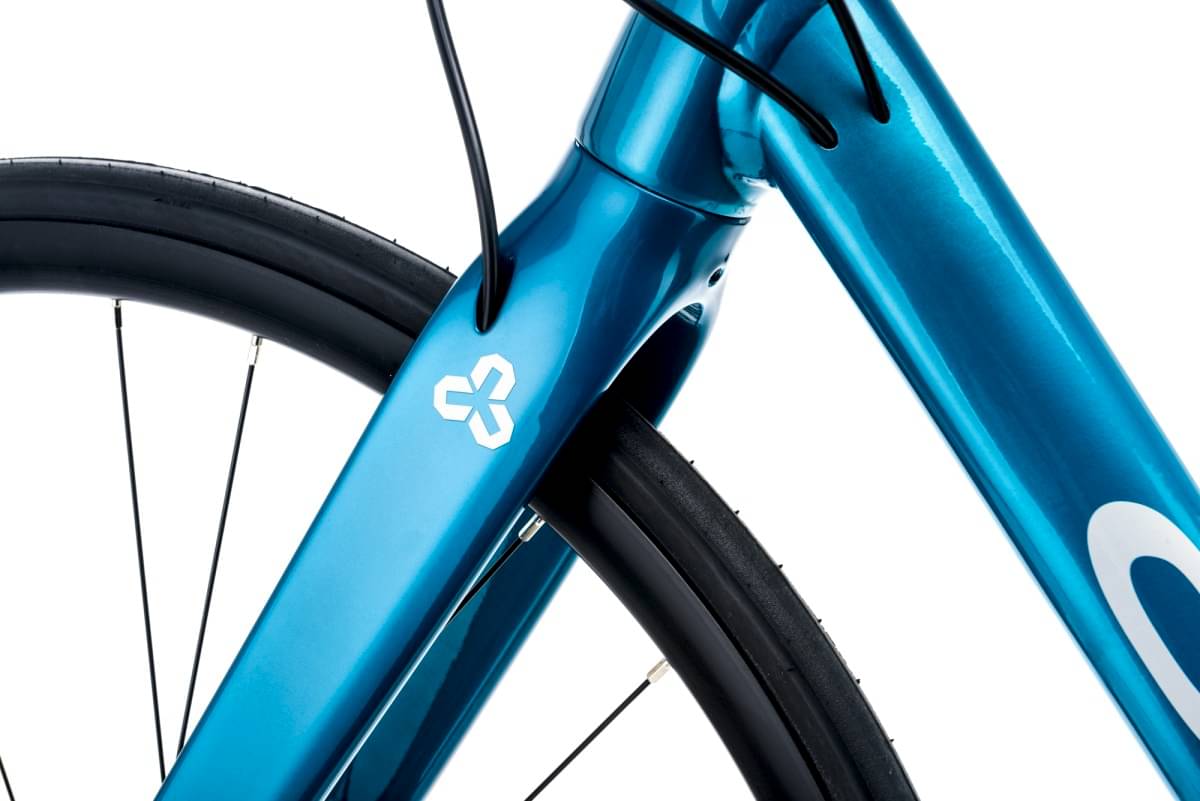

Suspension Fork
REXROC ALU Fork
Drivetrain

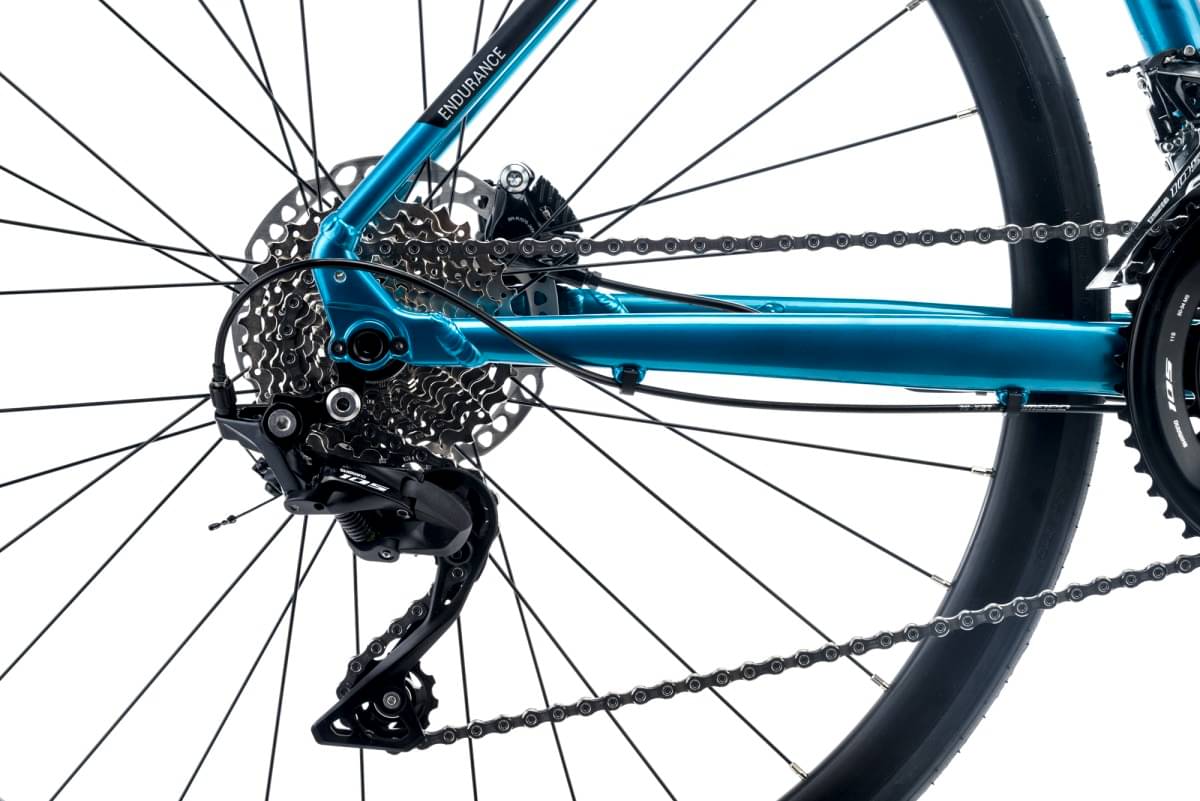

Rear Derailleur
Shimano 105 RD-R7000

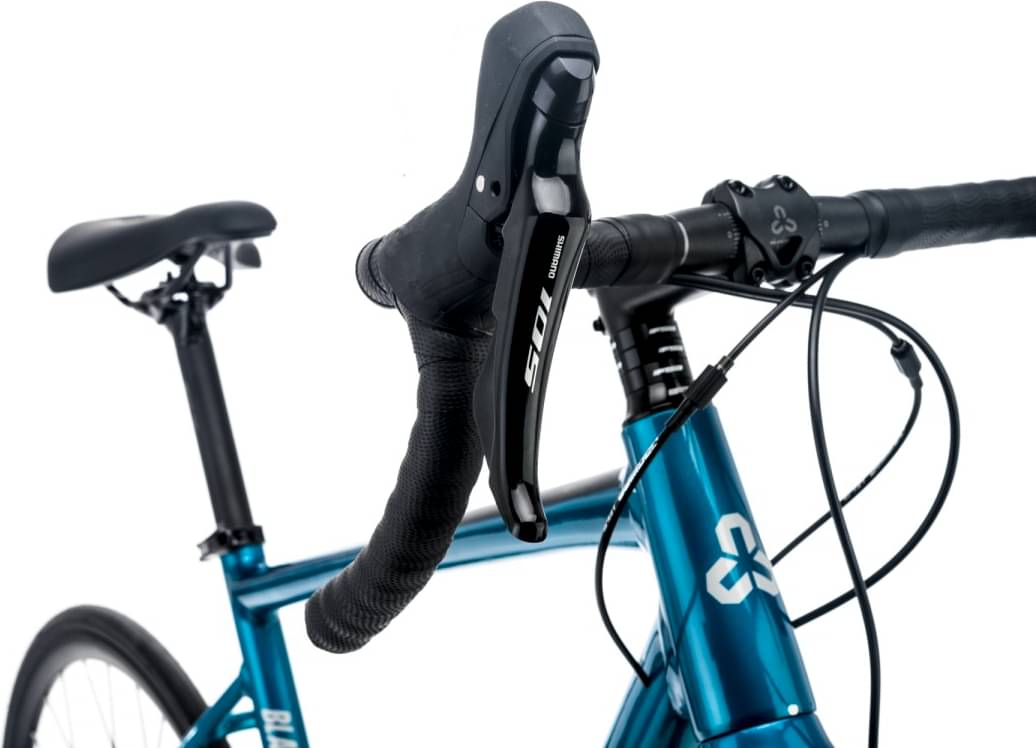

Shift Levers
Shimano 105 ST-R7020 11s.

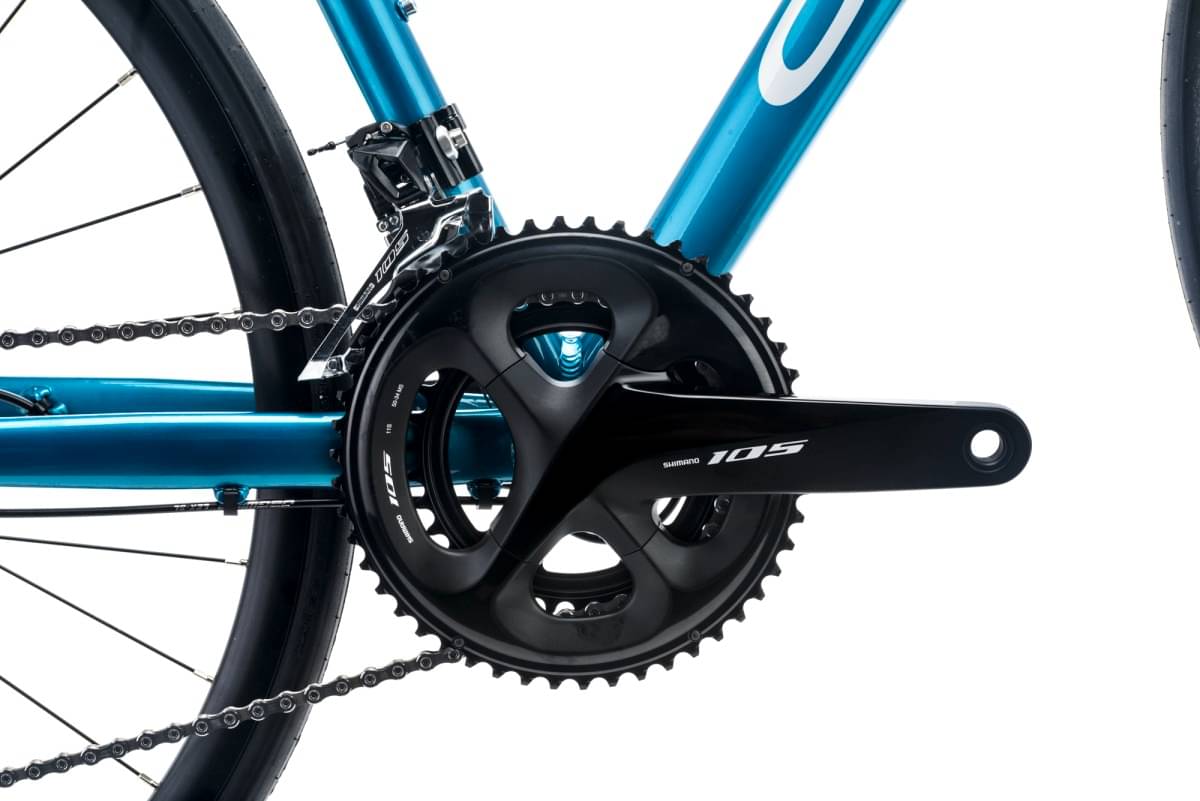

Crank
Shimano 105 FC-R7000 50/34T (520, 540-170mm / 560,580,600-175mm)
Chain
Shimano CNHG60
Wheels
Rear Hub
Shimano RS470, 32H
Rims
Remerx R-DISC 622 32H
Tires
MAXXIS Detonator 700x25C
Brakes

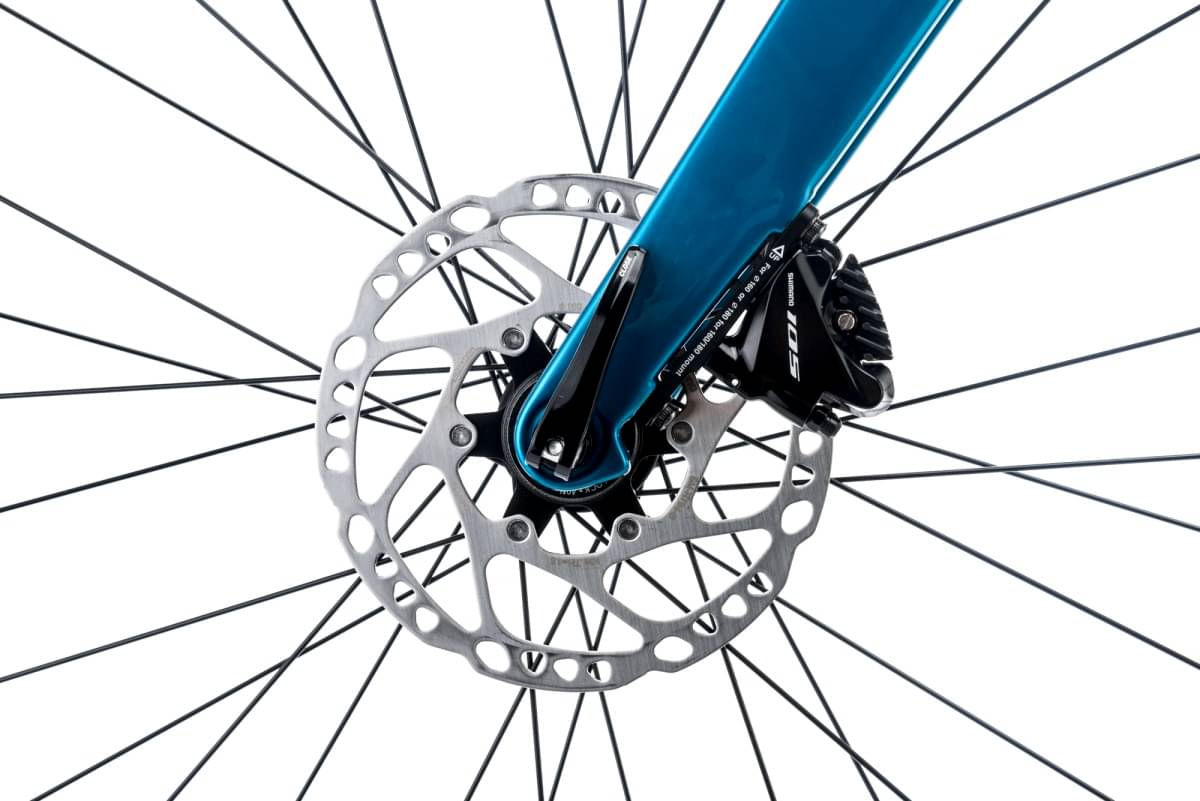

Brakes
Shimano 105 BR-R7070
Cockpit
Stem
CTM ASM01 110mm

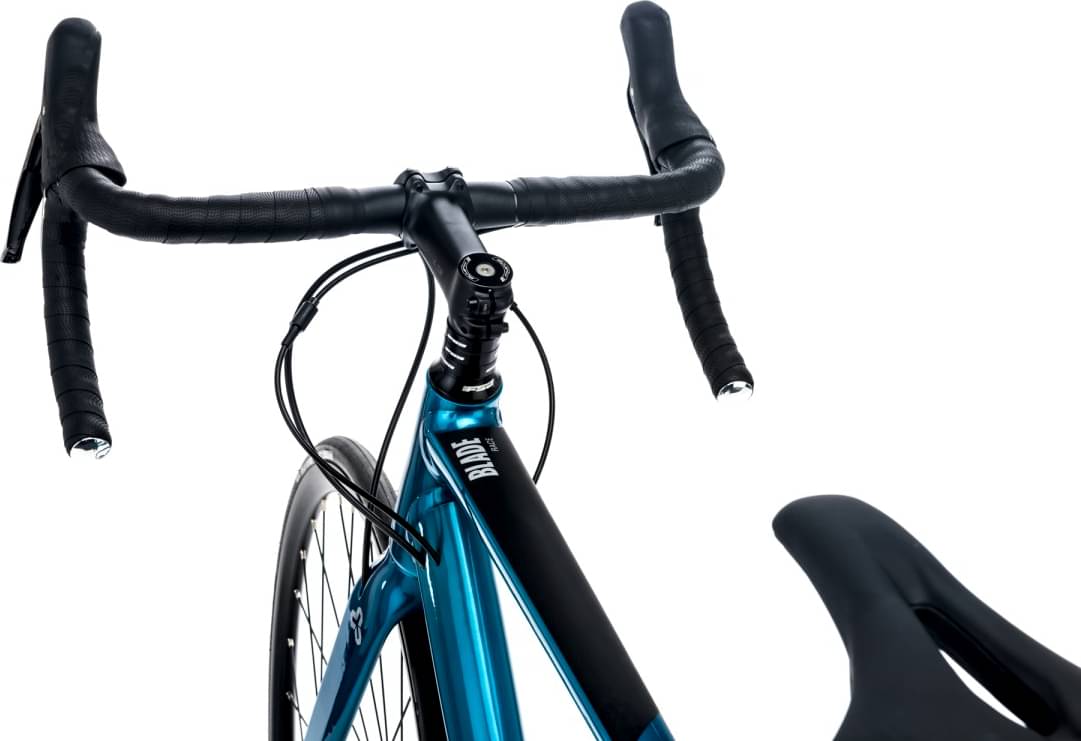

Handlebar
CTM
Headset
FSA Orbit C40, ACB
Seat
Saddle
Selle Royal PL
Seatpost
CTM SPDC1 350/400x27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.43 mm | 1.43 mm | 1.45 mm | 1.48 mm |
| Front Center | 560 mm | 580 mm | 595 mm | 605 mm | 614 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Stack | 547 mm | 547 mm | 562 mm | 581 mm | 600 mm |
| Reach | 362 mm | 382 mm | 392 mm | 401 mm | 405 mm |
| Top Tube Length | 524 mm | 544 mm | 559 mm | 579 mm | 594 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm |
| Wheelbase | 954 mm | 974 mm | 989 mm | 1000 mm | 1012 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
BLADE Race is a Ctm Blade model. CTM launched 4 bikes of this model so far. You can easily view all of the Ctm Blade bikes models from 2023, here.
Model range prices
CTM BLADE Comp 2023 is the most economical model, with a starting price of 1326$. CTM BLADE Race 2023 on the other hand costs 1432$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 1432$. If we compare this with the average Race bike cost we notice that the price is 133.94% smaller.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
As for the wheels, CTM BLADE Race 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.

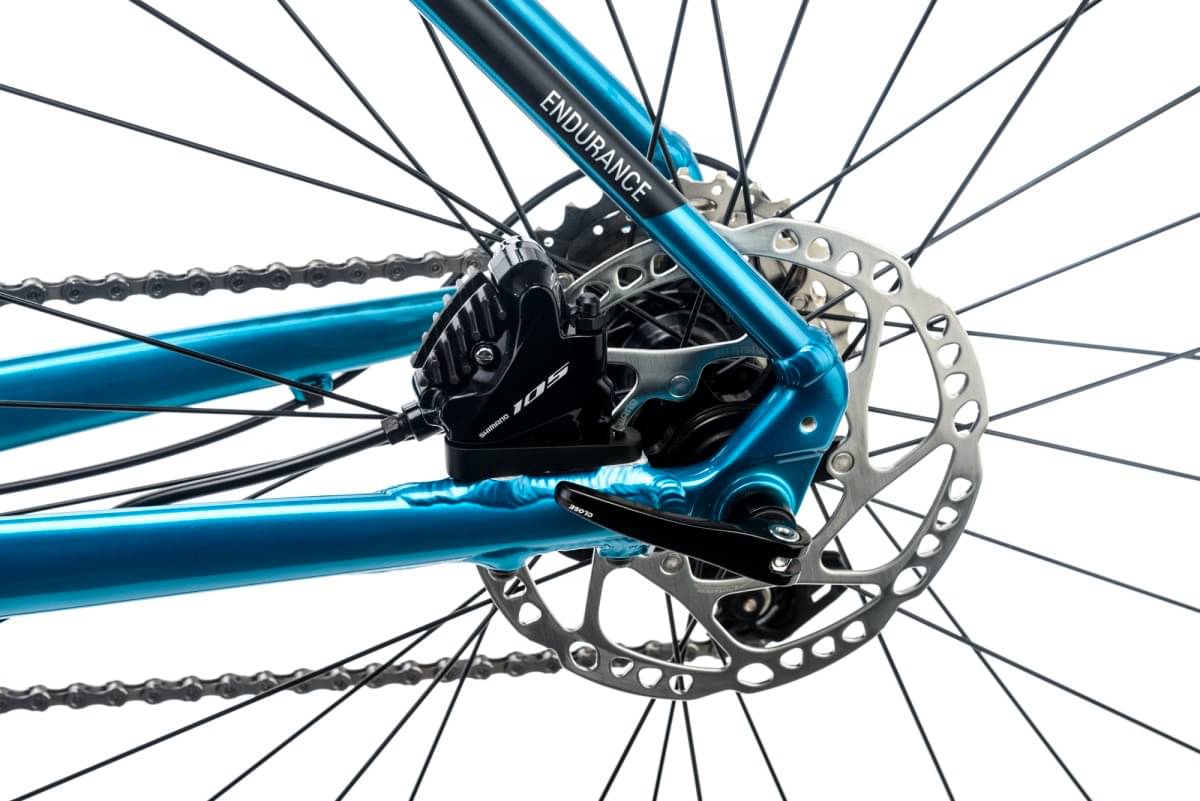

Brakes
Nothing is more important on a bike than its ability to brake properly. CTM BLADE Race is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
