Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
140cm - 155cm
MD
150cm - 166cm
LG
164cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components

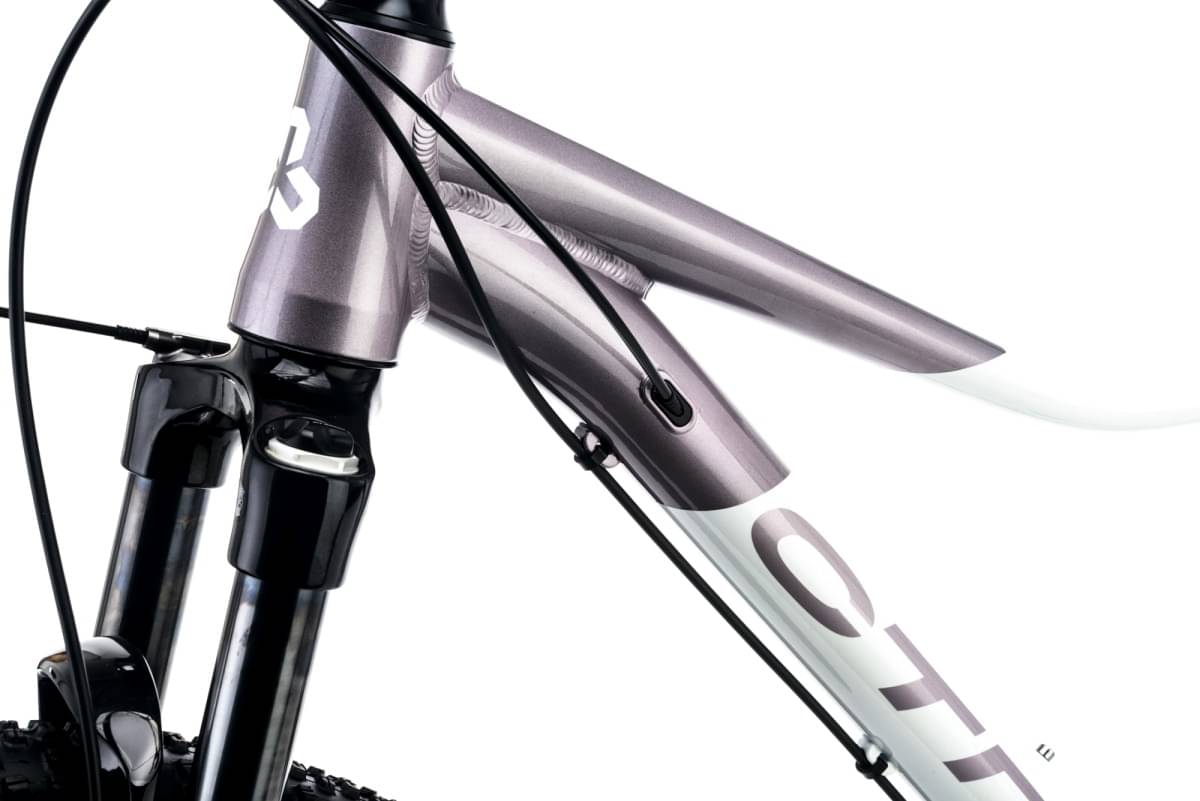

Frame
Frame
ALU 6061, S(14"), M (16"), L (18")
Suspension Fork
Suntour XCR, AIR,RLR DS 120mm 27.5"
Drivetrain

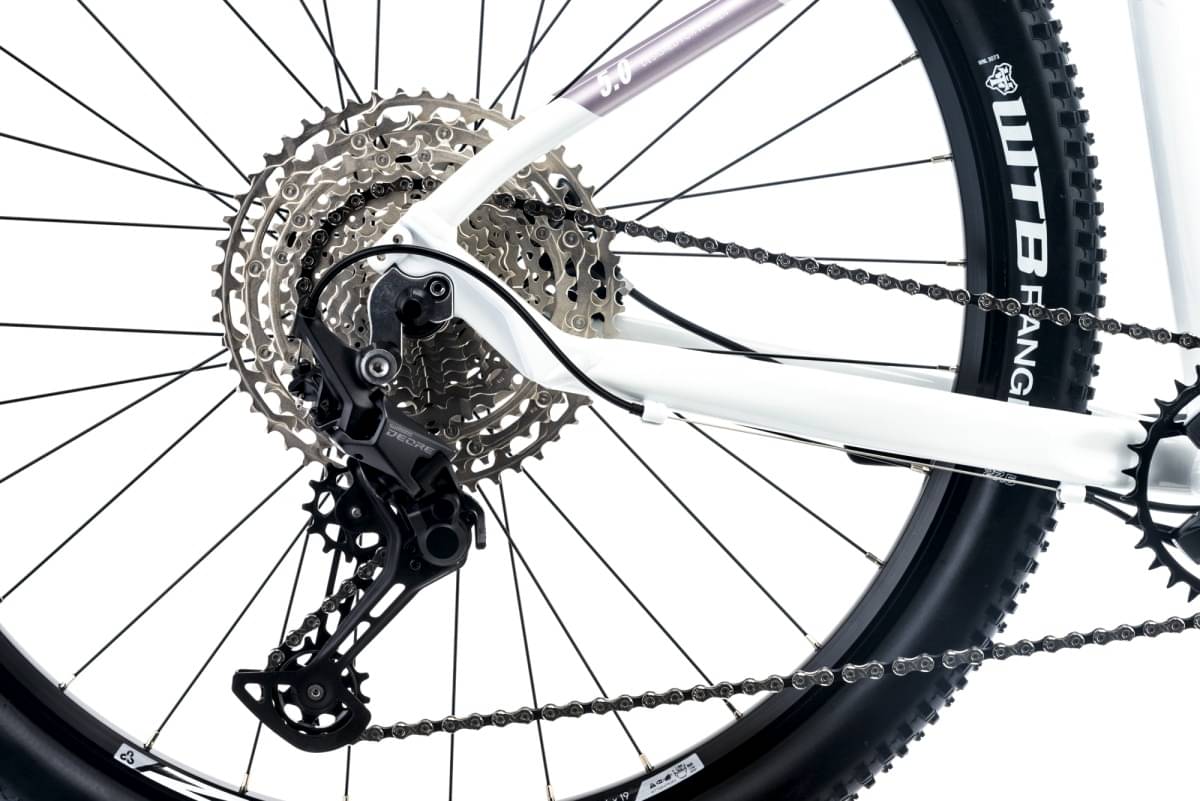

Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100/11sp.

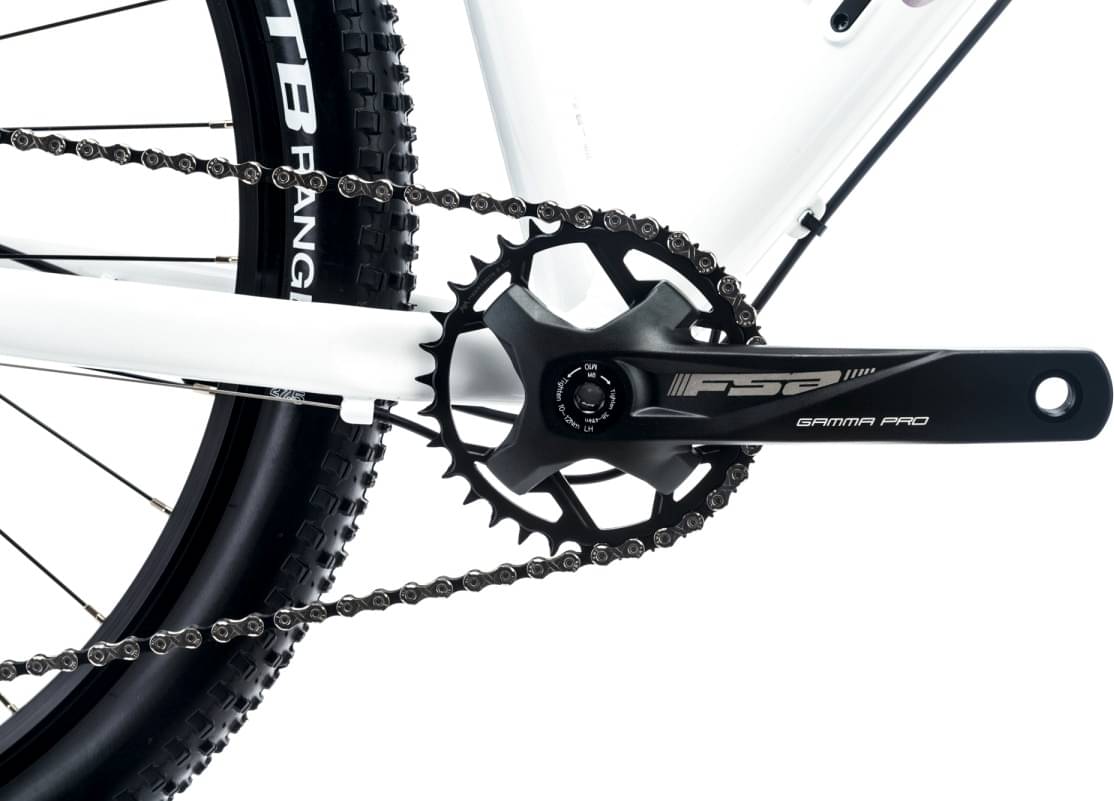

Crank
FSA Gamma Pro 1x 32T 170/175mm
Chain
KMC X11/118L
Pedals
SP 510
Wheels
Rear Hub
CTM alloy center-lock 32H QR black
Rims
CTM ZX-lite, 584x19 BA, 32H
Tires
WTB Ranger 27.5x2.25" Comp

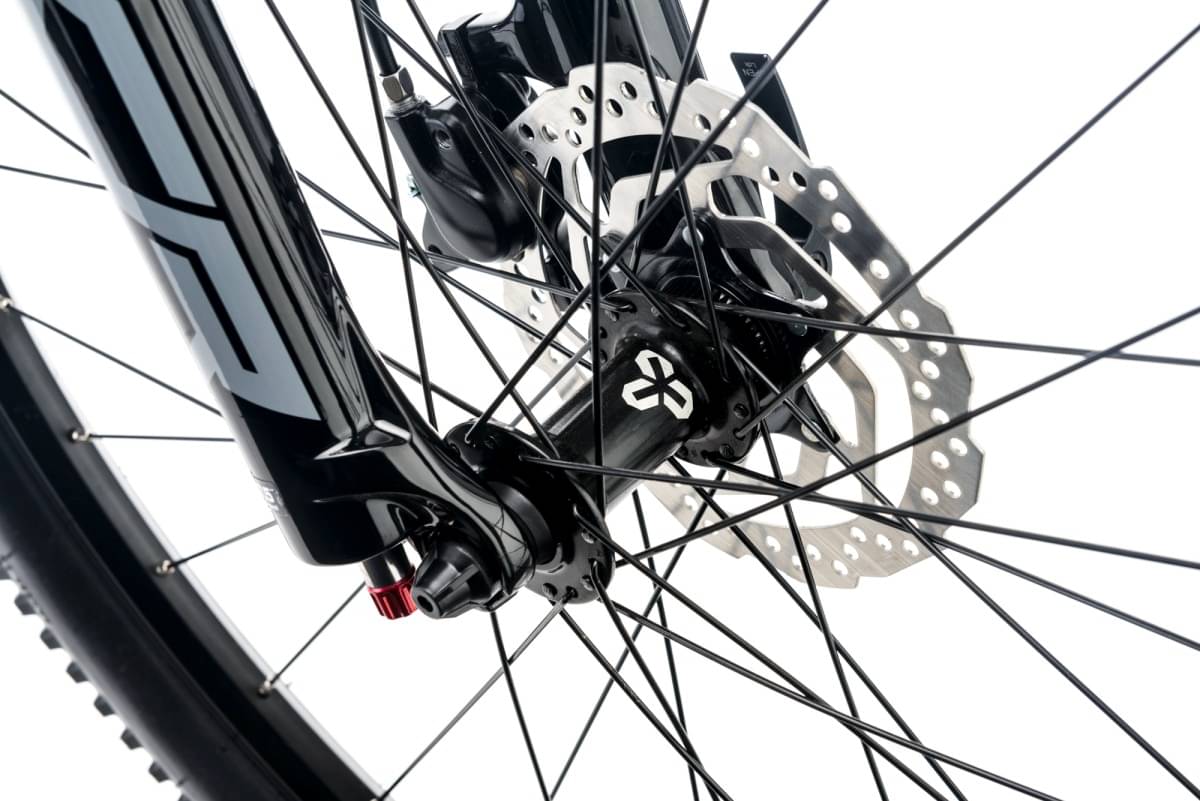

Brakes
Brakes
Shimano MT200 / SMRT10

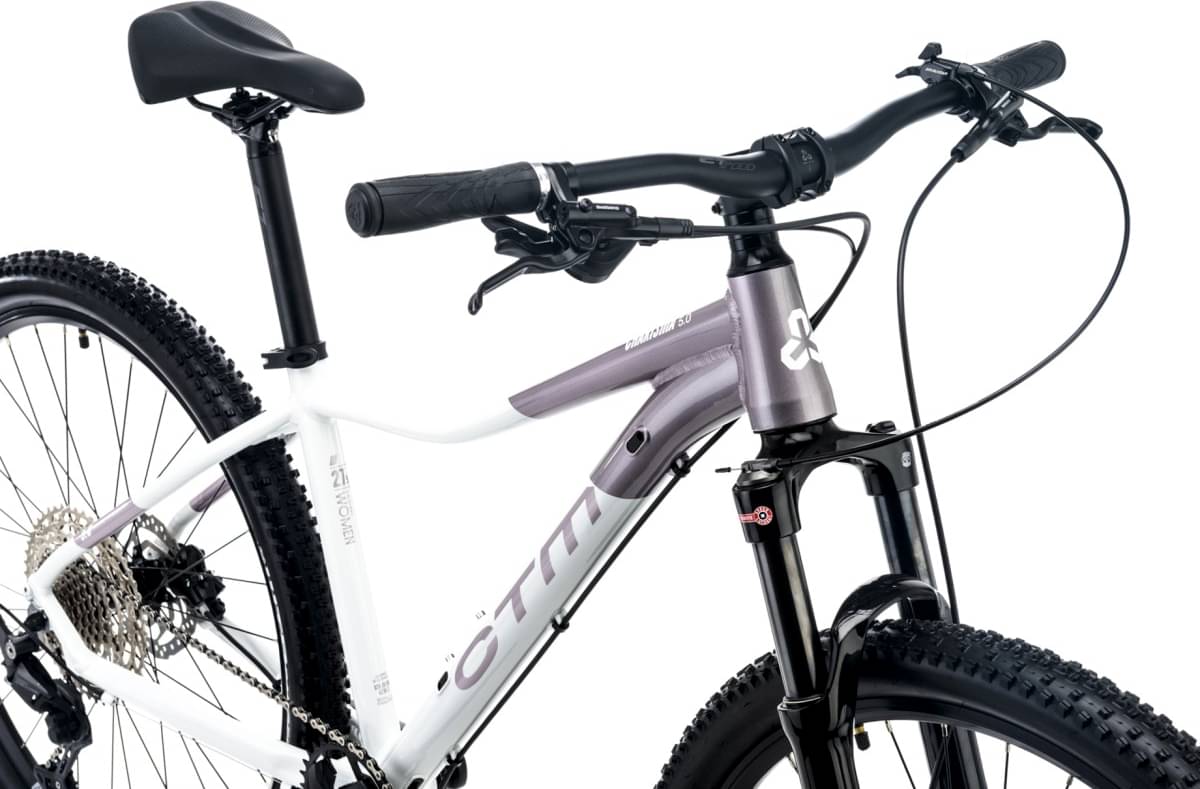

Cockpit
Stem
CTM LCS 50/31.8 mm
Handlebar
CTM XC Rise bar, 700/31.8 mm
Headset
Something semi-integrated

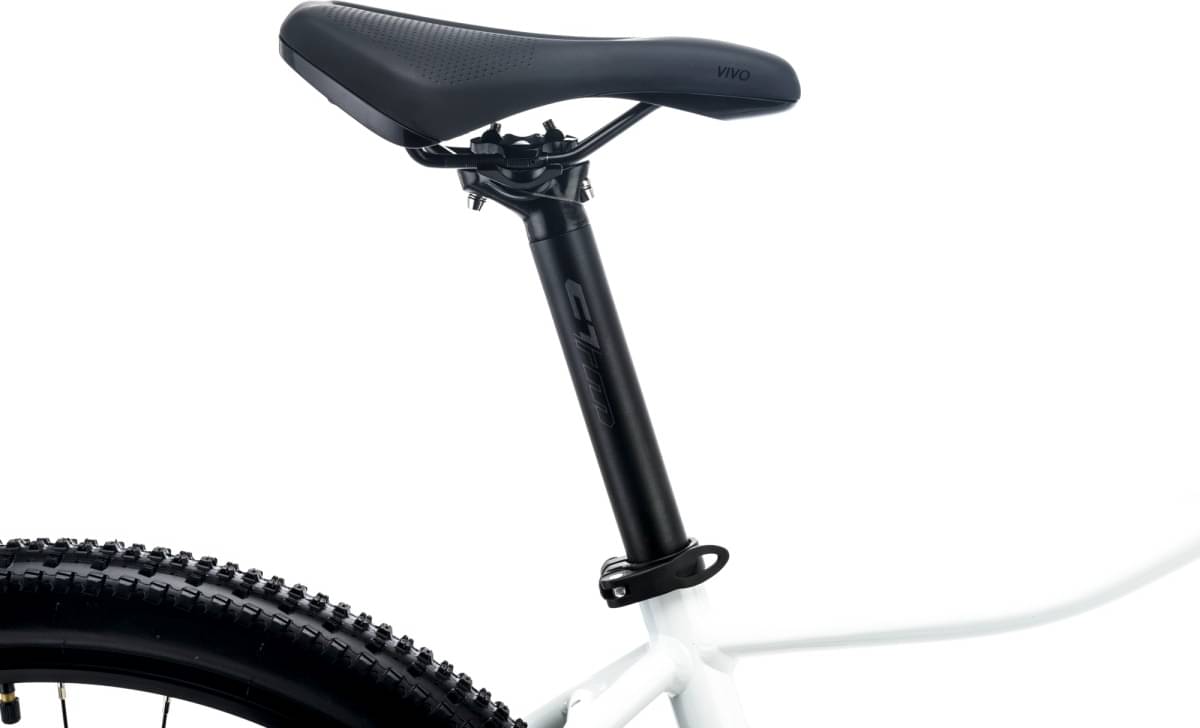

Seat
Saddle
SR Vivo Ergo Lady
Seatpost
CTM SPDC1, 350x31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Front Center | 629 mm | 644 mm | 659 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Top Tube Length | 557 mm | 572 mm | 587 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1062 mm | 1077 mm | 1092 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 140 cm | 150 cm | 164 cm |
| Rider Max Height | 155 cm | 166 cm | 180 cm |
About this model
CHARISMA 5.0 is part of the Ctm Charisma model. CTM launched 12 bikes of this model so far. Take a sneak peek at all Ctm Charisma bikes models from 2023, by clicking here.
Model range prices
CTM CHARISMA 1.0 2023 is the most economical model, with a starting price of 487$. CTM CHARISMA 6.0 2023 on the other hand costs 1061$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, CTM CHARISMA 5.0 price was 923$. Comparing the average cost of a Trail bike to this one, you will see that CHARISMA 5.0 price is 199.24% lower.
Overview of components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the CHARISMA 5.0 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CTM CHARISMA 5.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 140 cm – 180 cm (4.59 ft – 5.91 ft). In conclusion, you won’t have a problem finding one that suits you.
