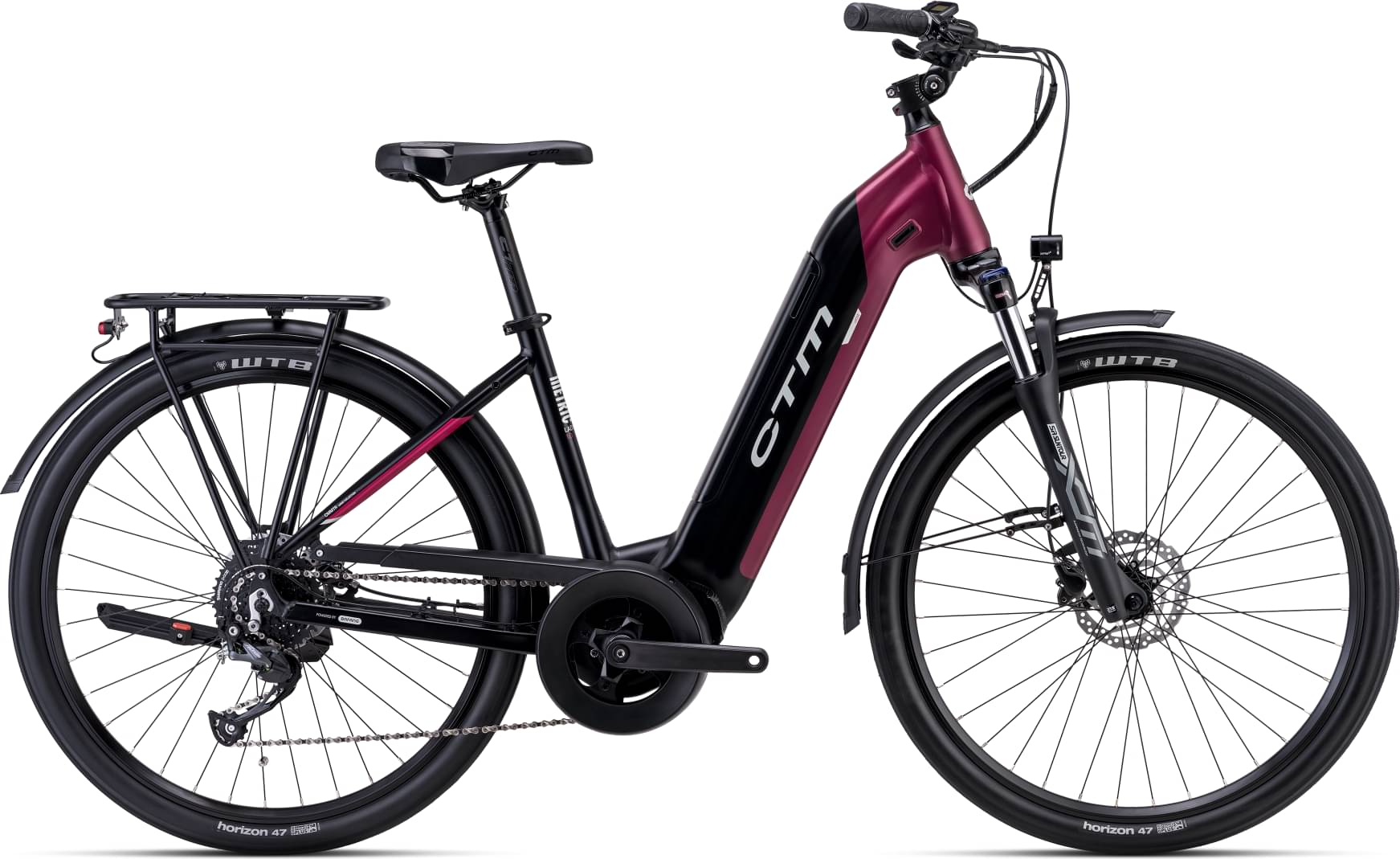

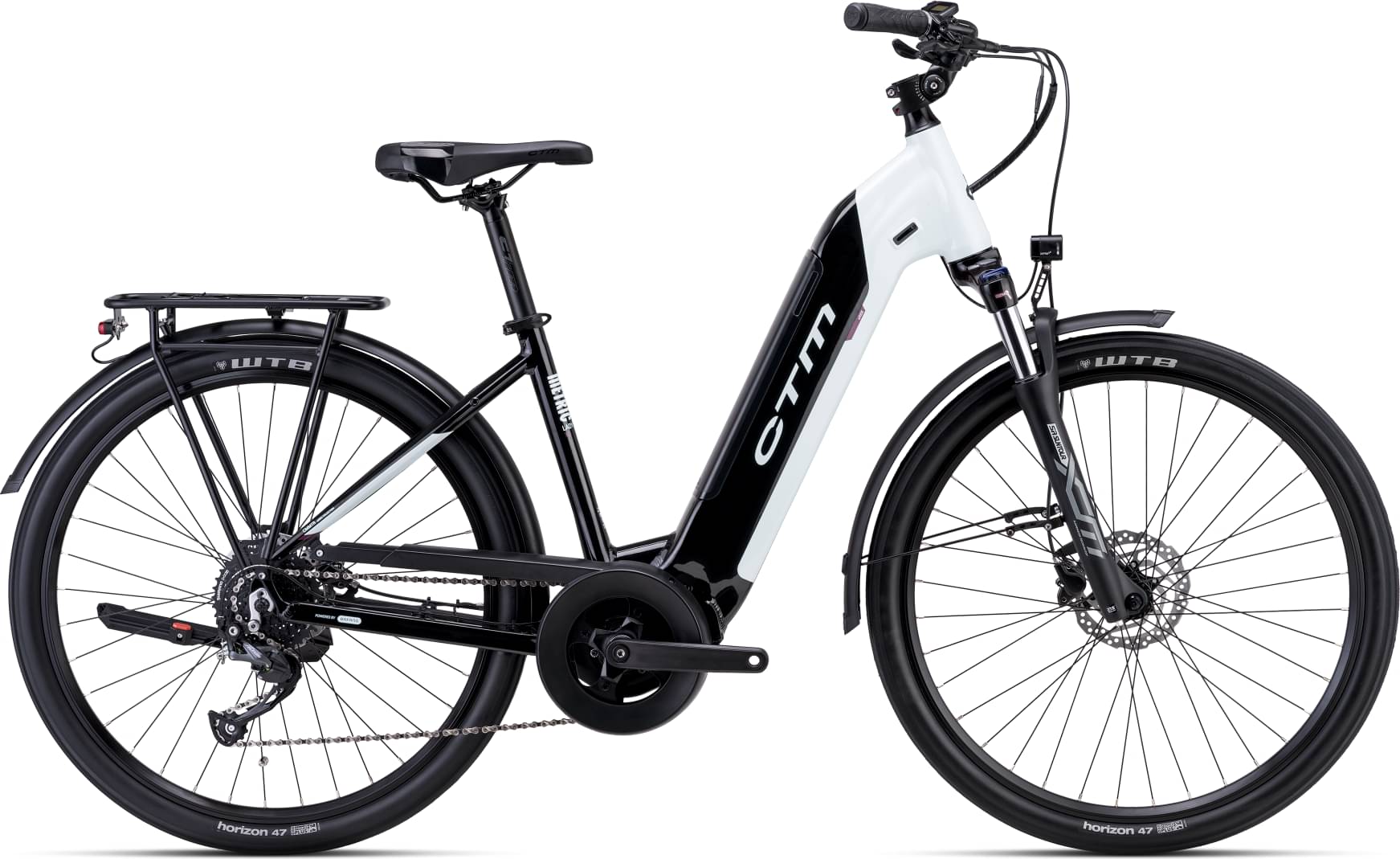

CTM METRIC Lady 1.0 2023
2023 E-bike
Estimate price |
2,465$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor Bafang 250W 65Nm hub-drive -
Battery CTM IGB 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (16"), L (18")
Suspension Fork
Suntour XCM32 ATB 80mm
Drivetrain
Rear Derailleur
1. Shimano Altus RD-M2000 2. LTWOO RD-V5009-L
Crank
Bafang 42T, 170mm
Chain
KMC X9e 126L
Wheels
Rear Hub
Novatec D041DSB/D142TSE,36H,CL
Rims
RMX ROCKY22 584 36H
Tires
WTB Horizon 650x47
Brakes
Brakes
Shimano MT200 / SMRT10S
Cockpit
Stem
CTM AS-822 90mm
Handlebar
CTM rise bar, 640/31.8mm
Headset
NECO H156
Seat
Saddle
CTM
Seatpost
CTM 350x31.6 mm
Motor & Battery
Motor
BAFANG M200 / 250W / 65Nm
Battery
CTM IGB 630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.57 mm |
| Front Center | 652 mm | 672 mm |
| Rake | 46 mm | 46 mm |
| Stack | 663 mm | 663 mm |
| Reach | 402 mm | 422 mm |
| Top Tube Length | 596 mm | 616 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 170 mm | 170 mm |
| Chainstay Length | 491 mm | 491 mm |
| Wheelbase | 1137 mm | 1157 mm |
| Wheels | 650 | 650 |
Model Overview
METRIC Lady 1.0 is part of the Ctm E Metric model. 6 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
CTM METRIC Lady 1.0 2023 is the most affordable e-bike of this model and has a price of 2282$. On the other hand, CTM METRIC Lady 2.0 2023, is the most expensive and costs 2653$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2282$. Comparing this to the average Commuter e-bike price, we see that the price is 12.58% smaller.
METRIC Lady 1.0 components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the METRIC Lady 1.0 e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. CTM METRIC Lady 1.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
