Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Fork Suntour NCX -
Groupset Deore -
Suspension Hardtail -
Motor Bafang 250W 80Nm hub-drive -
Battery 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

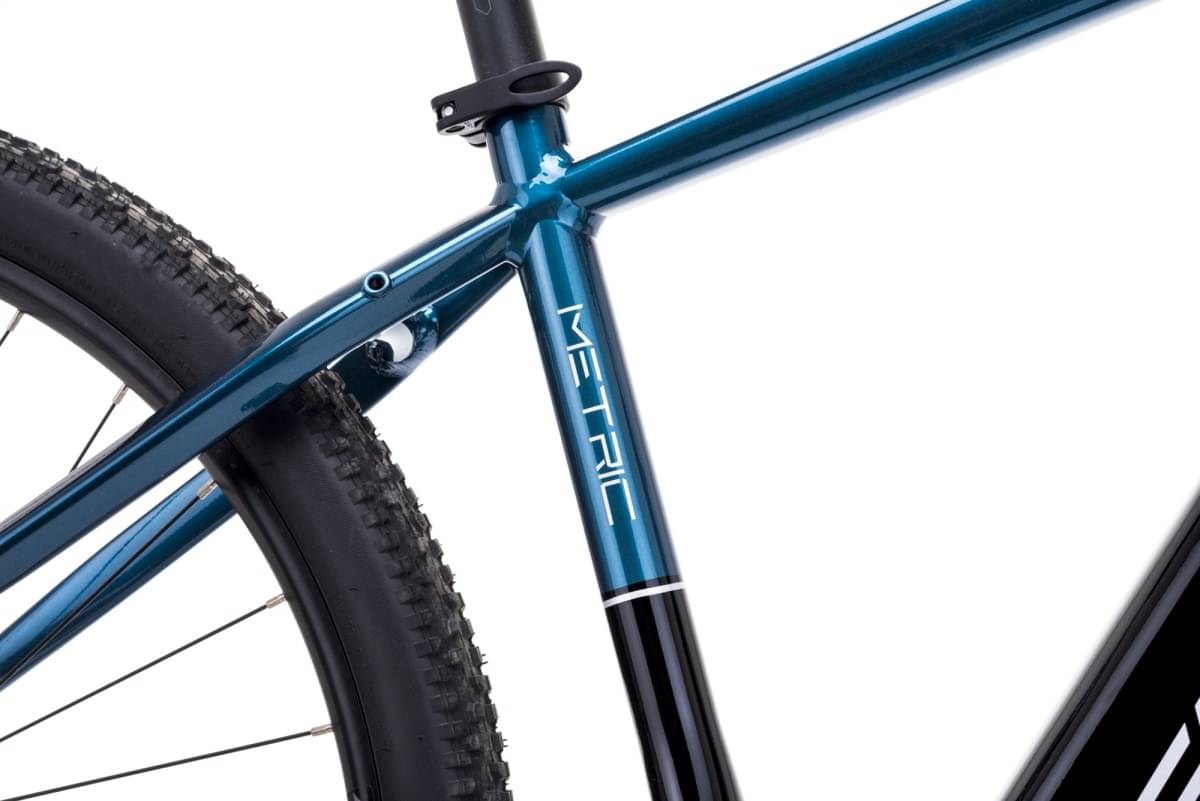

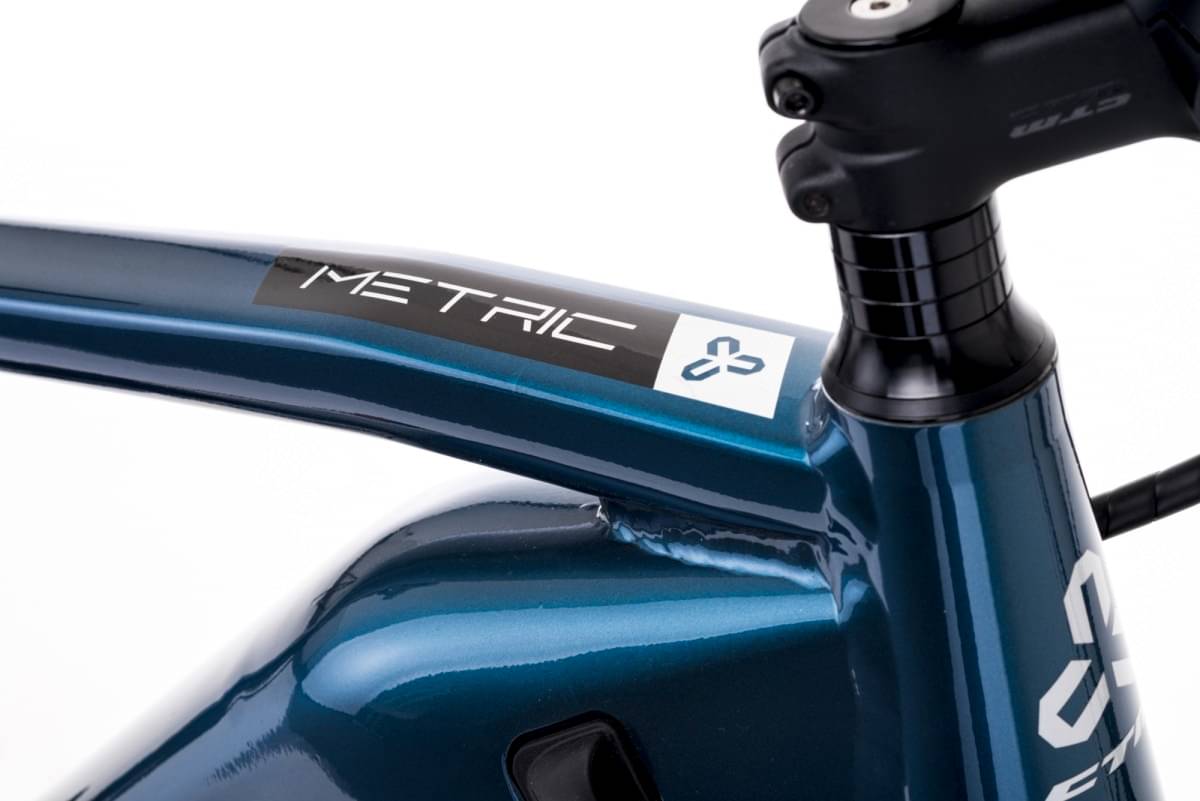

Frame
Frame
ALU 6061, M (18"), L (20")
Suspension Fork
Suntour NCX AIR RL DS 700C
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120
Shift Levers
Shimano Deore SL-M4100/10sp.
Crank
Bafang 42T, 170mm
Chain
KMC X10e 126L
Pedals
VPE-527
Wheels
Rear Hub
Novatec D041DSB/D142TSE,36H,CL
Rims
WTB ST i23 TCS 2.0 29" 36H
Tires
WTB Nineline 29x2.0" Comp
Brakes
Brakes
ZOOM HB875/CL180
Cockpit
Stem
CTM TDS 70mm
Handlebar
CTM rise bar, 31.8dia, 720mm
Headset
NECO H156
Seat

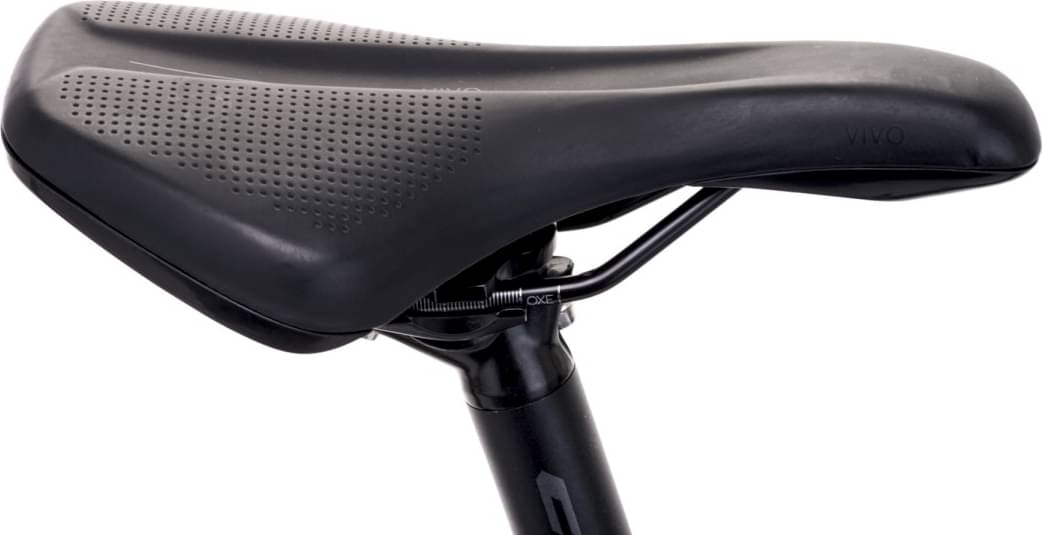

Saddle
SR Vivo Ergo Man
Seatpost
CTM 350x31.6 mm
Motor & Battery
Motor
BAFANG M420 / 250W / 80Nm

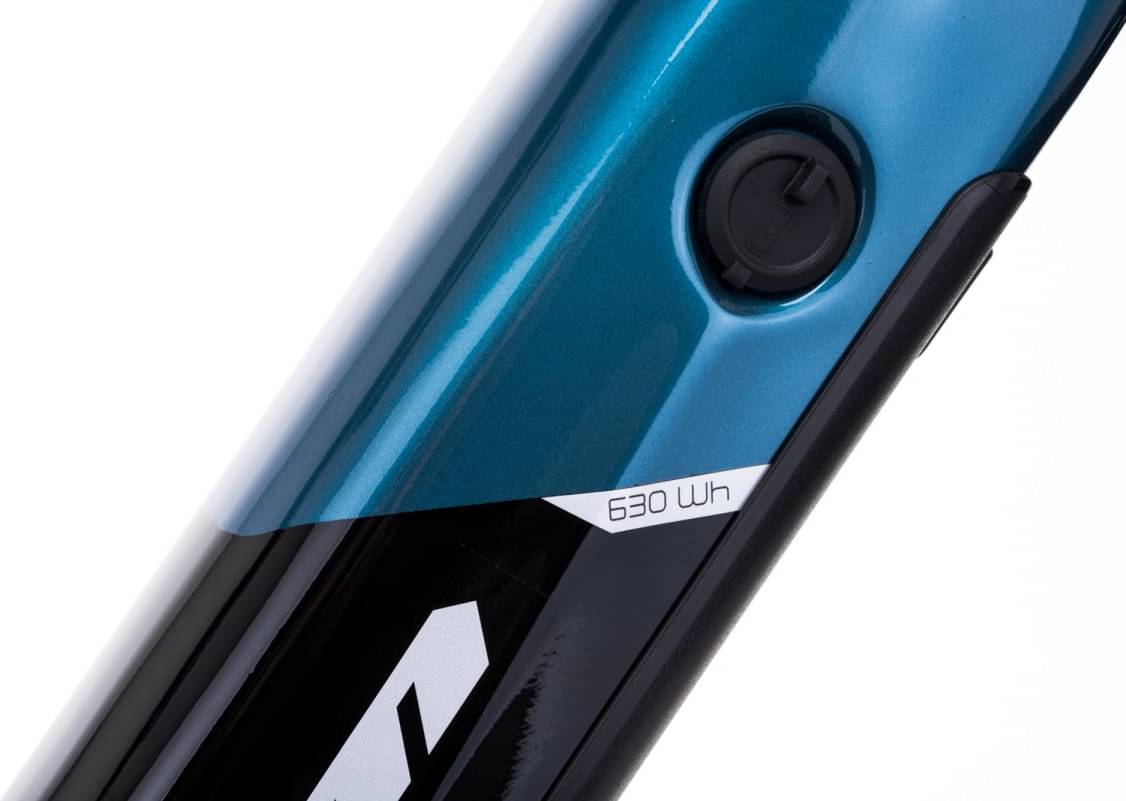

Battery
630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | XL |
|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm |
| Front Center | 675 mm | 695 mm |
| Rake | 46 mm | 46 mm |
| Stack | 619 mm | 619 mm |
| Reach | 407 mm | 427 mm |
| Top Tube Length | 608 mm | 629 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 495 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm |
| Chainstay Length | 484 mm | 484 mm |
| Wheelbase | 1152 mm | 1173 mm |
| Wheels | 29" | 29" |
Model Overview
METRIC X is a Ctm E Metric model. CTM released 6 e-bikes variations of this model so far. Take a sneak peek at all Ctm E Metric e-bikes models from 2022, by clicking here.
Model range prices
CTM METRIC LADY 2022 is the most affordable e-bike of this model and has a price of 2229$. On the other hand, CTM METRIC X 2022, is the most expensive and costs 2441$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2441$. In conclusion, this e-bike price is 0.49% smaller than the price of the average Crosscountry e-bike.
Overview of components
Fork
This e-bike has the Suntour NCX fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on METRIC X are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The METRIC X has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
