Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

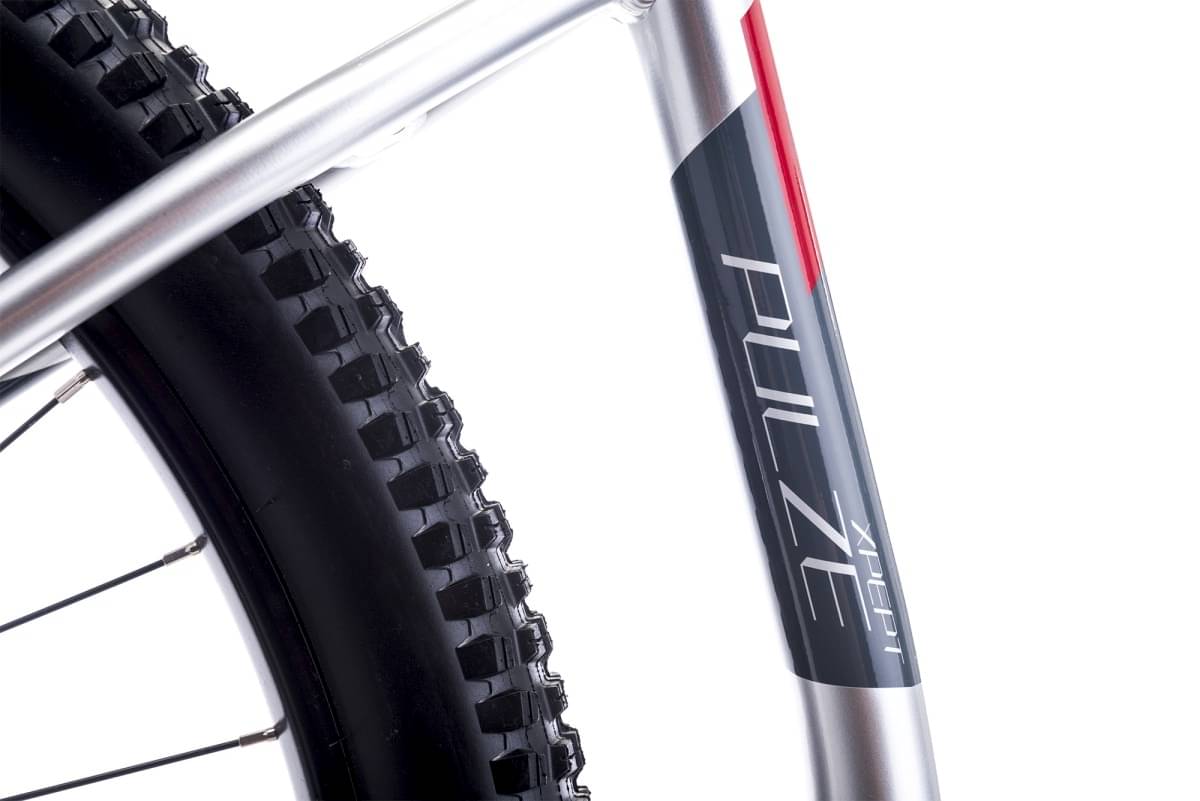

Frame Aluminum -
Wheels 29" -
Fork Suntour XCR Air -
Groupset Deore -
Suspension Hardtail -
Motor Bafang 250W 80Nm hub-drive -
Battery 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (17"), L (19"), XL (21")
Suspension Fork
Suntour XCR34 AIR boost RLR 15QL 29"
Drivetrain

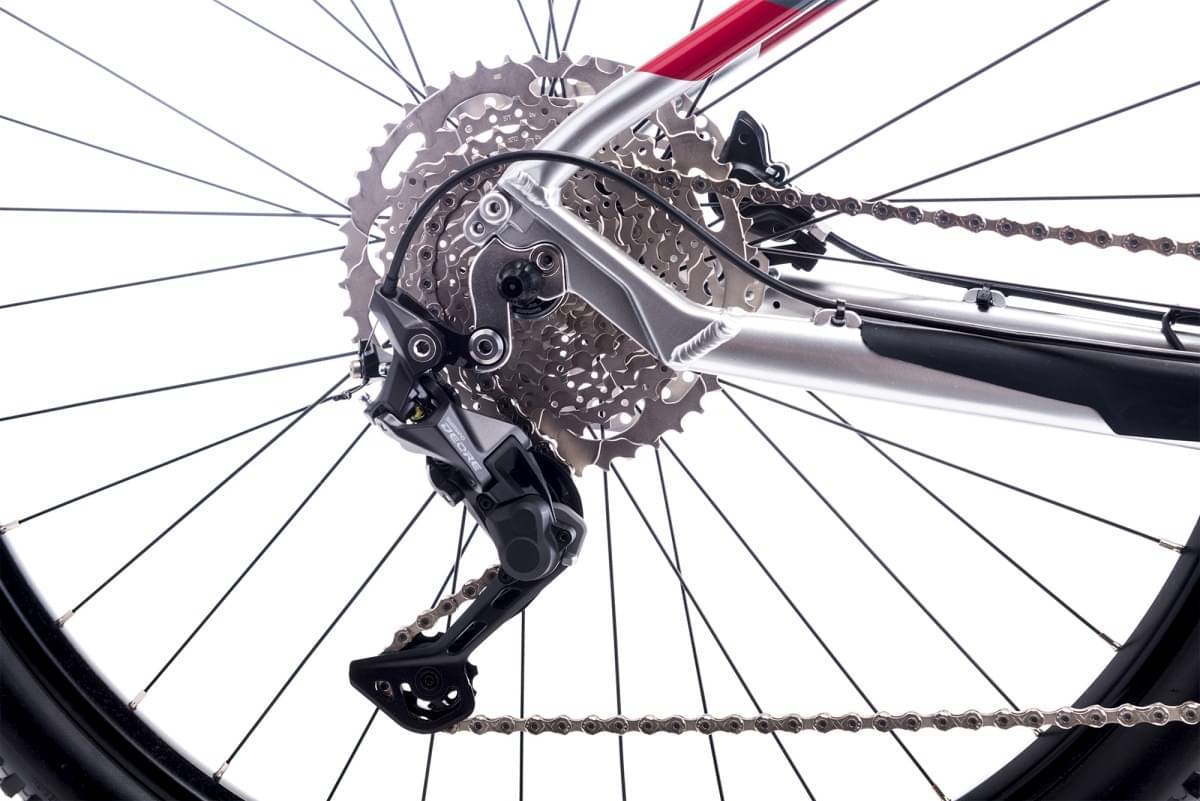

Rear Derailleur
Shimano Deore RD-M5120
Shift Levers
Shimano Deore SL-M4100/10sp.

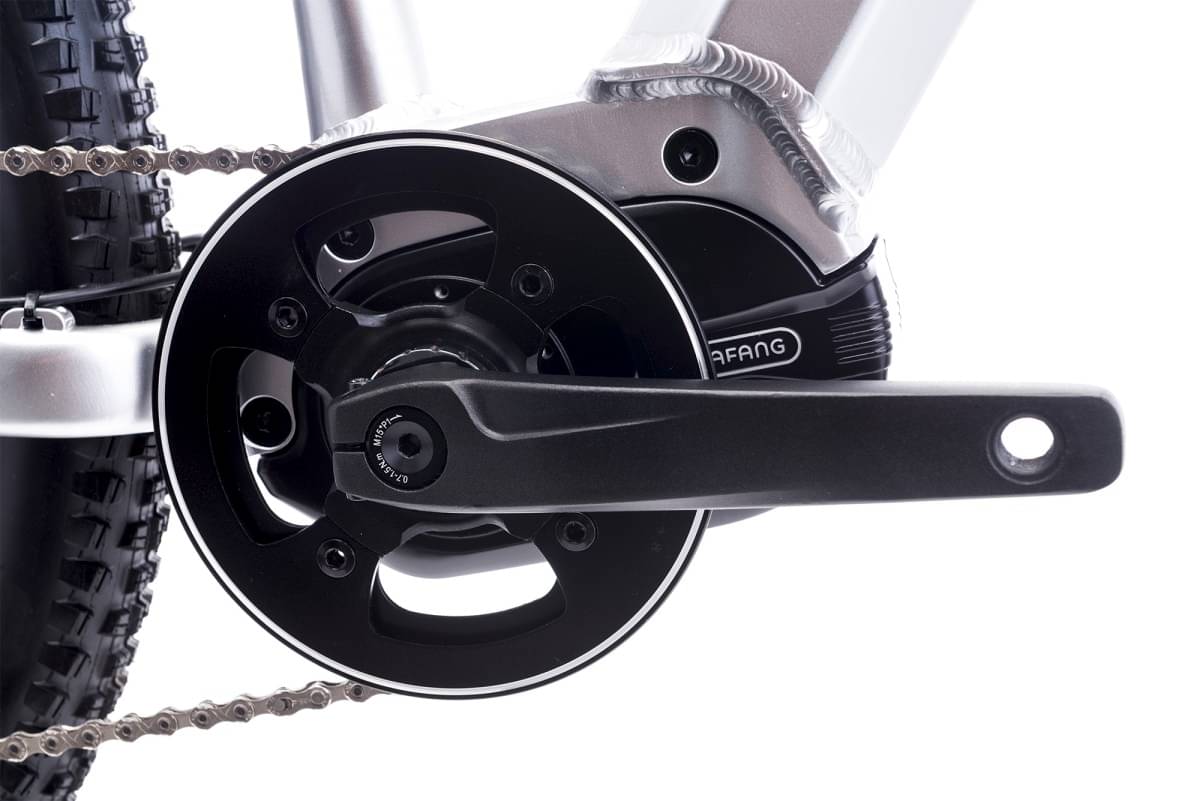

Crank
Bafang 38T, 170mm
Chain
KMC X10e 124L
Pedals
VPE-537
Wheels
Rear Hub
Novatec D041DSB,15mm/D142TSE,36H,CL
Rims
WTB ST i29 TCS 2.0 29" 36H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
ZOOM HB875/CL180
Cockpit
Stem
CTM LCS/80mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H153
Seat
Saddle
SR Vivo Ergo Man
Seatpost
CTM 350x31.6 mm
Motor & Battery
Motor
BAFANG M420 / 250W / 80Nm

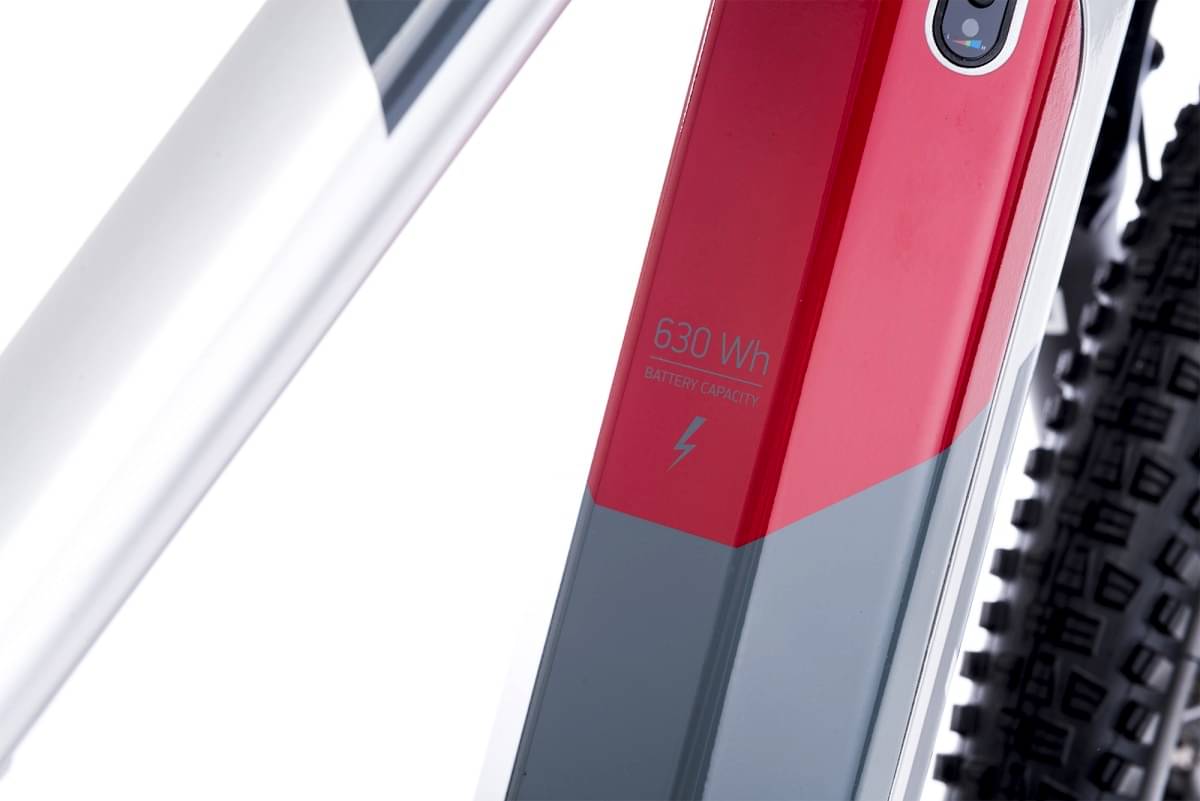

Battery
630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Front Center | 684 mm | 704 mm | 724 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Reach | 403 mm | 423 mm | 443 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 473 mm | 473 mm | 483 mm |
| Wheelbase | 1151 mm | 1171 mm | 1191 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
Model Overview
PULZE XPERT belongs to the Ctm E Pulze model. 4 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
CTM PULZE 2022 is the most economical model, with a starting price of 2123$. CTM PULZE XPERT 2022 on the other hand costs 2335$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 2335$. In conclusion, this e-bike price is 44.11% lower than the price of the average Trail e-bike.
PULZE XPERT components

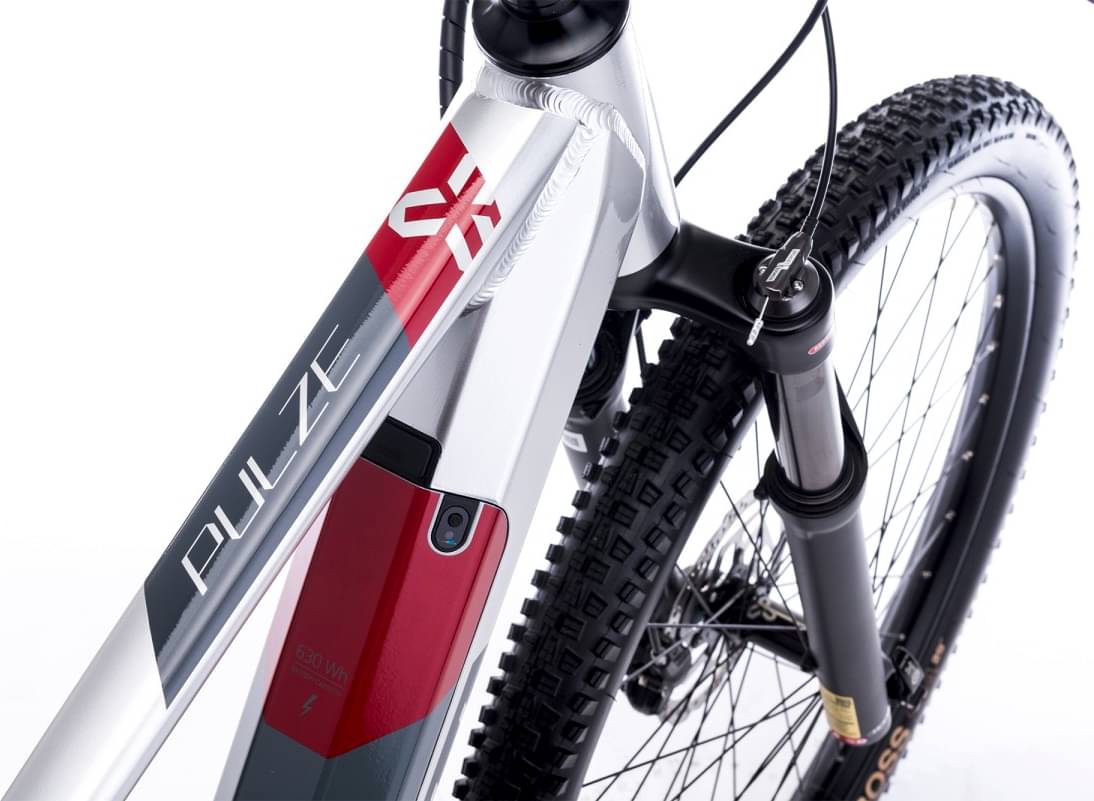

Fork
The fork installed on this bike is the Suntour XCR Air model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

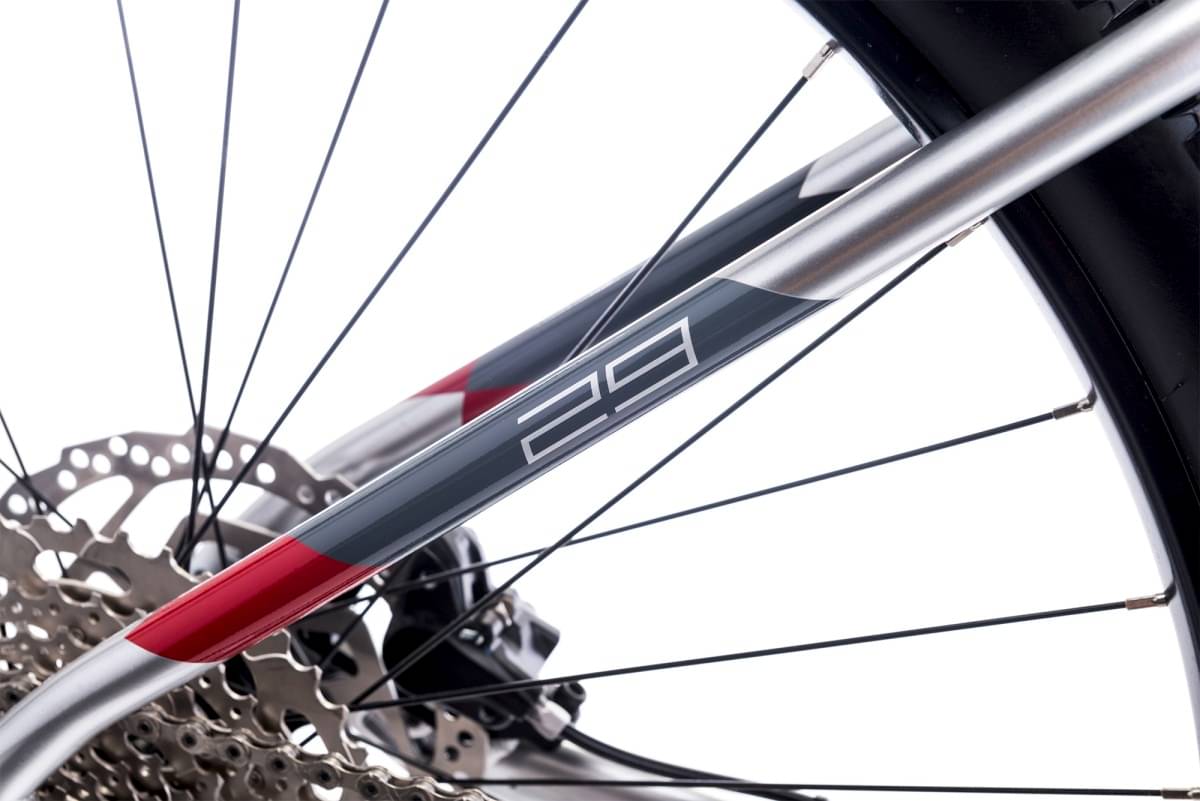

Wheels
When it comes to wheels, the PULZE XPERT e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
CTM PULZE XPERT e-bike has 3 sizes, in the range of 160 cm – 205 cm (5.25 ft – 6.73 ft). In short, you can easily find one that suits you.
