Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Judy Silver TK, Solo Air spring, remote lockout, 47mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano Deore M5100, 11-speed
Front Derailleur
None
Shift Levers
Shimano Deore M5100, 11-speed
Cassette
Shimano Deore M5100, 11-speed, 11-51 tooth
Crank
Shimano Deore M5100, 175mm length
Bottom Bracket
Shimano, BSA threaded
Chain
KMC X11, 11-speed
Chain Guide
None
Pedals
VPE 461
Wheels
Front Hub
Shimano, MT200 front, MT400 148x12mm Boost rear with HG driver
Rear Hub
Shimano, MT200 front, MT400 148x12mm Boost rear with HG driver
Rims
WTB ST i25 TCS, 32 hole
Tires
WTB Ranger, Comp, 29" x 2.25"
Brakes
Brakes
Shimano MT200, 2-piston, Shimano RT10 rotors
Brake Levers
Shimano MT200
Cockpit
Stem
CTM ASM02, 35mm bar clamp, 90mm length
Handlebar
CTM HB352, 35mm clamp diameter, 760mm width
Headset
NECO H156
Seat
Saddle
CTM Flat
Seatpost
CTM SP3D2, 350mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Front Center | 700 | 715 mm | 730 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Trail | 90 mm | 90 mm | 90 mm |
| Stack | 634 mm | 634 mm | 634 mm |
| Reach | 441 mm | 456 mm | 471 mm |
| Top Tube Length | 621 mm | 636 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1140 mm | 1155 mm | 1170 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

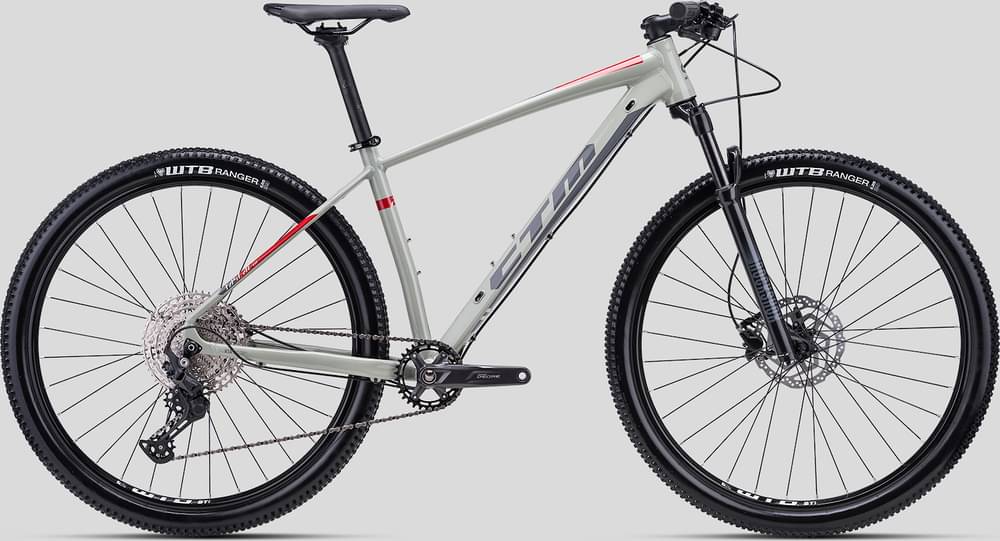

Rascal 1.0 29″ is part of the Ctm Rascal model. CTM launched 17 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
CTM Rascal 1.0 29″ it’s weighing 13.5 kg (29.76 lbs). At this weight, is a bit heavier than average. To sum up, it’s 8.87% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The RockShox Judy Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Rascal 1.0 29″ model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. CTM Rascal 1.0 29″ is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
CTM Rascal 1.0 29″ bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
