Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Judy Silver TK, Solo Air spring, remote lockout, 47mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM X1 1000 Eagle DUB, 175mm length
Bottom Bracket
SRAM DUB, BSA threaded
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None
Pedals
VPE 461
Wheels
Front Hub
Shimano MT400, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Shimano MT400, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
WTB ST i25 TCS, 32 hole
Tires
WTB Ranger, Comp, 29" x 2.25"
Brakes
Brakes
Shimano MT400, 2-piston, Shimano RT10 rotors
Brake Levers
Shimano MT400
Cockpit
Stem
CTM ASM02, 35mm bar clamp, 90mm length
Handlebar
CTM HB352, 35mm clamp diameter, 760mm width
Headset
NECO H156
Seat
Saddle
CTM Flat
Seatpost
CTM SP3D2, 350mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Front Center | 700 | 715 mm | 730 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Trail | 90 mm | 90 mm | 90 mm |
| Stack | 634 mm | 634 mm | 634 mm |
| Reach | 441 mm | 456 mm | 471 mm |
| Top Tube Length | 621 mm | 636 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1140 mm | 1155 mm | 1170 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

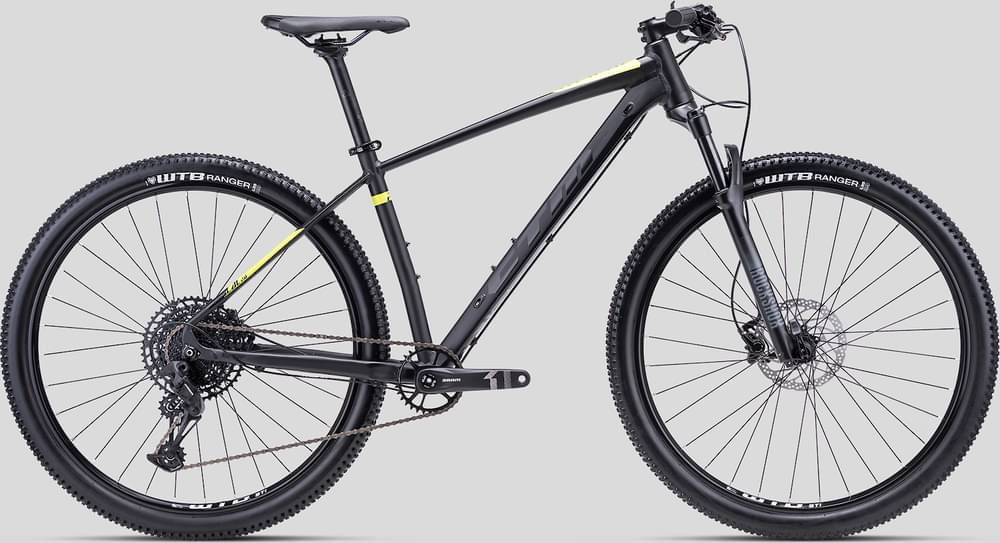

Rascal 2.0 29″ belongs to the Ctm Rascal model. CTM released 17 bikes variations of this model so far. Take a sneak peek at all Ctm Rascal bikes models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
CTM Rascal 2.0 29″ it’s weighing 13.3 kg (29.32 lbs). At this weight, is a bit heavier than average. To sum up, it’s 7.26% heavier than the average weight of Crosscountry bikes.
Rascal 2.0 29″ components
Fork
The Rascal 2.0 29″ comes factory-installed with the RockShox Judy Silver TK fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Rascal 2.0 29″ are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Rascal 2.0 29″ comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
