Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL, Solo Air spring, 47mm offset
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX M7000, 11-speed, GS cage
Front Derailleur
Shimano SLX M7020
Shift Levers
Shimano SLX M7000, 2x11
Cassette
Shimano SLX M7000, 11-speed, 11-40 tooth
Crank
Shimano SLX M7000, 175mm length
Bottom Bracket
Shimano BB52B, BSA threaded
Chain
KMC X11, 11-speed, 112 links
Chain Guide
N/A
Pedals
VP 519A platform
Wheels
Front Hub
Shimano MT400, 32 hole, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Shimano MT400, 32 hole, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
WTB ST i25 TCS, 32 hole
Tires
WTB Ranger, TCS, Light/Fast Rolling, 27.5" x 2.25"
Brakes
Brakes
Shimano MT400, 2-piston, Shimano RT54 rotors
Brake Levers
Shimano MT400
Cockpit
Stem
CTM AS 90ex, 31.8mm bar clamp
Handlebar
CTM, 31.8mm clamp diameter, 760mm width
Headset
Neco semi-integrated tapered
Seat
Saddle
CTM
Seatpost
CTM SP3D2, 350mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Front Center | 670 mm | 696 mm | 722 mm |
| Top Tube Length | 606 mm | 631 mm | 656 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1099 mm | 1125 mm | 1151 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

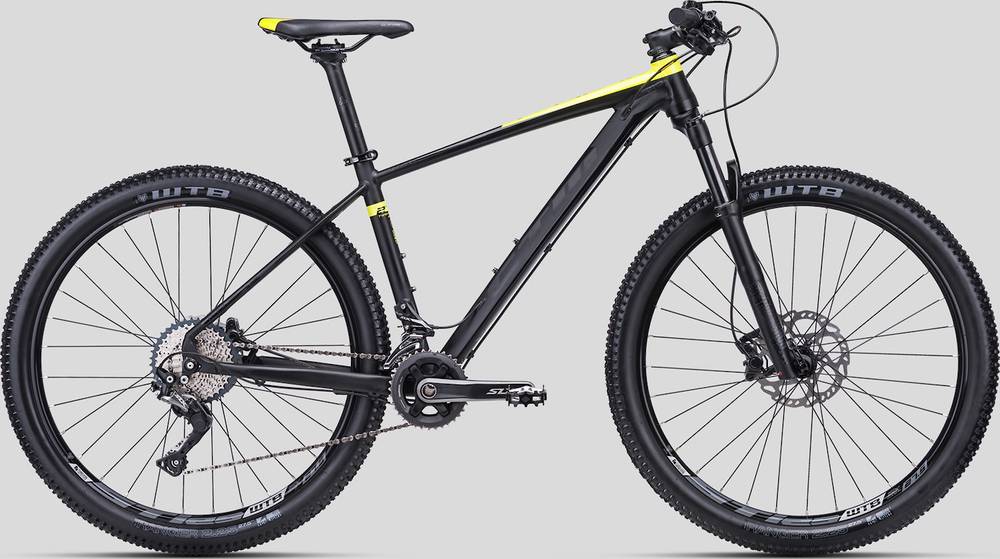

About this model
Rascal 3.0 27.5″ is a Ctm Rascal model. CTM launched 17 bikes of this model so far. Take a sneak peek at all Ctm Rascal bikes models from 2020, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Rascal 3.0 27.5″ has a weight of 12.7 kg (28 lbs). In other words, this model is 2.42% heavier than the average Crosscountry bike.
Rascal 3.0 27.5″ components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Rascal 3.0 27.5″ 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rascal 3.0 27.5″ has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
