Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Sektor
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Sektor RL, DebonAir spring, 47mm offset
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano SLX M7100, 175mm length
Bottom Bracket
Shimano MT800B, BSA threaded
Chain
Shimano SLX M7100, 12-speed
Chain Guide
N/A
Pedals
VP 519A platform
Wheels
Front Hub
Front: Shimano MT400, 32 hole, 110x15mm Boost, Rear: Shimano MT510, 32 hole, 148x12mm Boost, MICRO SPINE driver
Rear Hub
Front: Shimano MT400, 32 hole, 110x15mm Boost, Rear: Shimano MT510, 32 hole, 148x12mm Boost, MICRO SPINE driver
Rims
WTB ST i25 TCS, 32 hole
Tires
WTB Ranger, TCS, Light/Fast Rolling, 29" x 2.25"
Brakes
Brakes
Shimano Deore M7100, 2-piston, Shimano RT70 rotors
Brake Levers
Shimano Deore M7100
Cockpit
Stem
CTM AS 90ex, 31.8mm bar clamp
Handlebar
CTM, 31.8mm clamp diameter, 760mm width
Headset
FSA Orbit 1.5
Seat
Saddle
CTM
Seatpost
CTM SP3D2, 350mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Front Center | 700 | 715 mm | 730 mm |
| Top Tube Length | 621 mm | 636 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1140 mm | 1155 mm | 1170 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

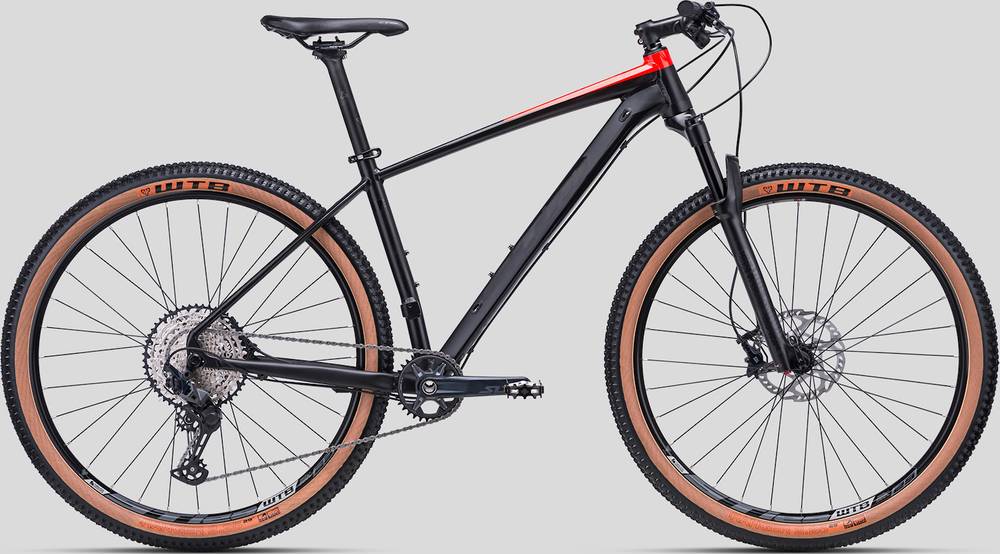

Rascal 4.0 29″ is part of the Ctm Rascal model. CTM released 17 bikes variations of this model so far. You can easily view all of the Ctm Rascal bikes models from 2020, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CTM Rascal 4.0 29″ it’s weighing 12.3 kg (27.12 lbs). At this weight, is slightly lighter than average. In other words, this model is 0.81% lighter than the average Crosscountry bike.
Rascal 4.0 29″ components
Fork
CTM Rascal 4.0 29″ 2020 bike is equipped with the RockShox Sektor fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Rascal 4.0 29″ bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. CTM Rascal 4.0 29″ is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
CTM Rascal 4.0 29″ bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
