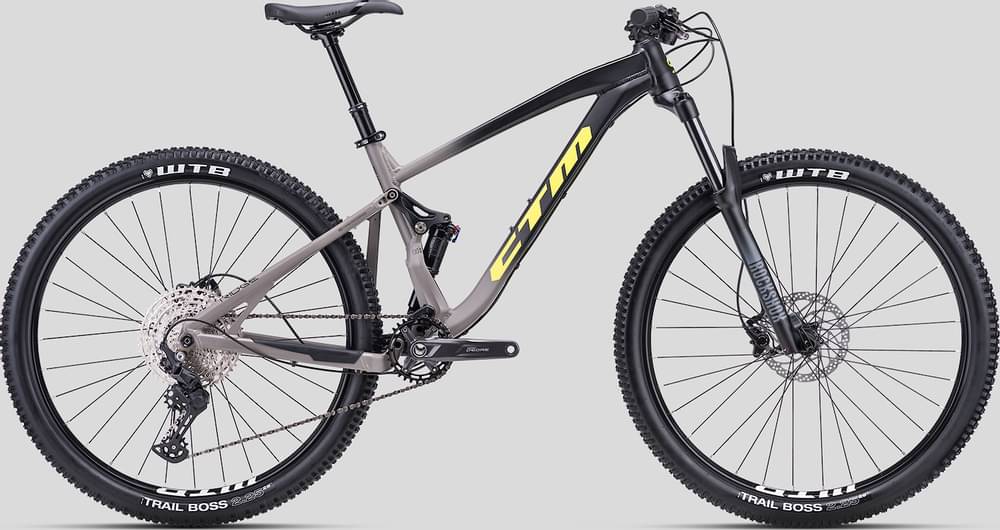

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon Silver RL, Solo Air spring, 51mm offset
Rear Shock
RockShox Monarch RL, 200mm x 51mm
Drivetrain
Rear Derailleur
Shimano Deore M5100, 11-speed
Front Derailleur
None
Shift Levers
Shimano Deore M5100, 11-speed
Cassette
Shimano Deore M5100, 11-speed, 11-51 tooth
Crank
Shimano Deore M5100, 170mm length
Bottom Bracket
Shimano
Chain
KMC X11, 11-speed
Chain Guide
Upper slider
Pedals
VPE-527 platform
Wheels
Front Hub
Shimano MT400, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Shimano MT400, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
WTB ST i29 TCS 2.0, 32 hole
Tires
WTB Trail Boss, Comp, 29" x 2.25"
Brakes
Brakes
Shimano MT400, 2-piston, Shimano RT30 rotors
Brake Levers
Shimano MT400
Cockpit
Stem
CTM ASM04, 45mm length, 35mm bar clamp
Handlebar
CTM HB352, 760mm width, 35mm clamp diameter
Headset
FSA Orbit 1.5
Seat
Saddle
WTB Volt
Seatpost
KS Rage-i dropper, Drop: 125mm (MD), 150mm (LG/XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.27 mm | 1.24 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 742 mm | 763 mm | 785 mm |
| Rake | 52 mm | 52 mm | 52 mm |
| Trail | 102 mm | 102 mm | 102 mm |
| Stack | 587 mm | 596 mm | 606 mm |
| Reach | 452 mm | 469 mm | 487 mm |
| Top Tube Length | 608 mm | 628 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1188 mm | 1209 mm | 1231 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
Ridge 29″ belongs to the Ctm Ridge model. 6 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 15.4 kg (33.95 lbs), CTM bike is much heavier than average. In short, the average Trail bike weight is 18.64% lower than this one.
Overview of components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch RL model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, CTM Ridge 29″ 2021, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ridge 29″ comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
CTM Ridge 29″ comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
