Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 155mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

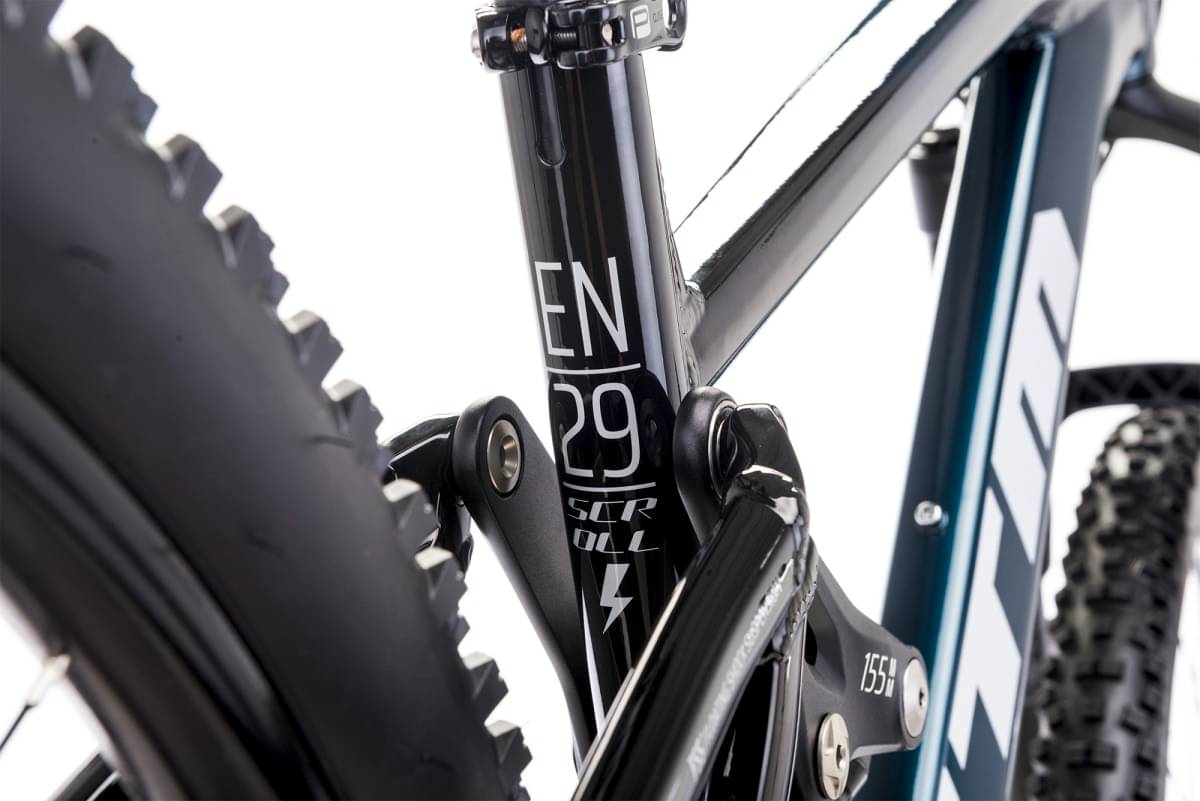

Frame
Frame
ALU 6061, rear travel 155 mm, MD, LG, XL
Suspension Fork
Rock Shox 35 SILVER TK, SA, 160mm, boost™ 15x110axle
Drivetrain

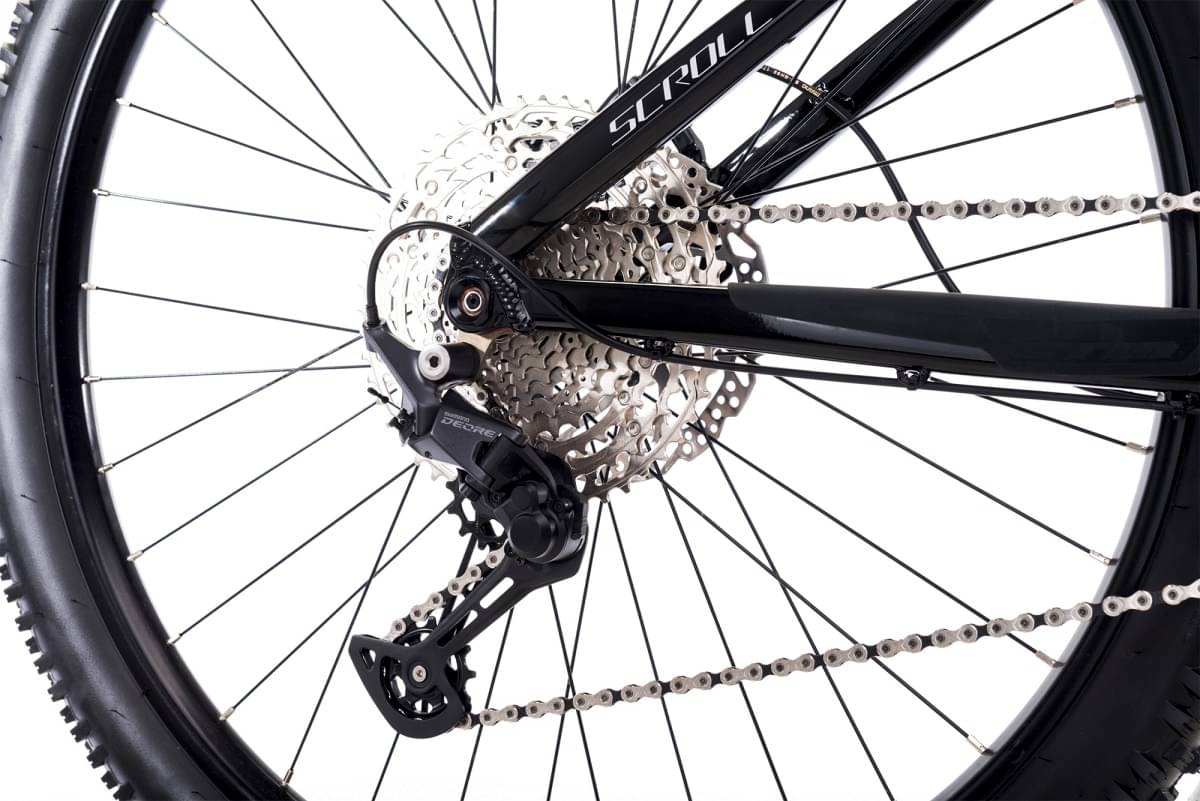

Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100/11sp.

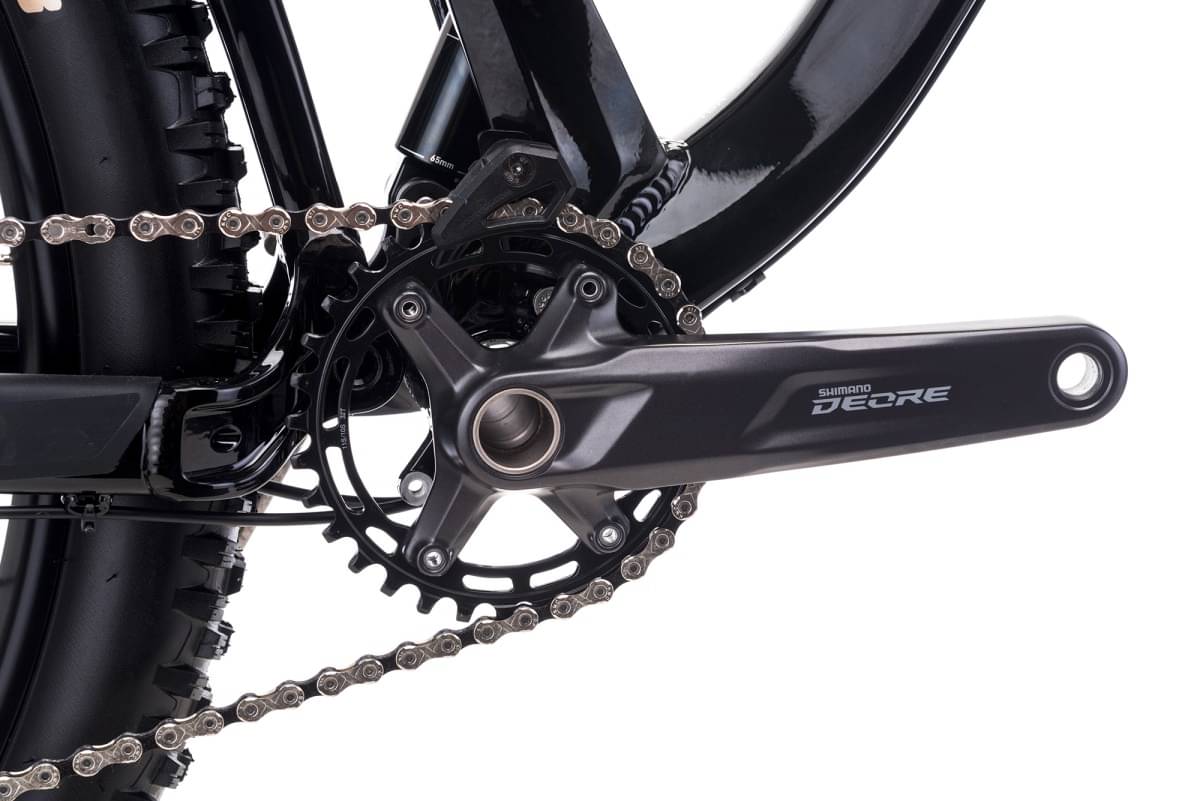

Crank
CR11A, 32T, 170mm
Chain
KMC X11 118L
Pedals
VPE-527
Wheels
Rear Hub
Shimano MT400 boost / 32H
Rims
WTB ST i29 TCS 2.0 29" 32H
Tires
WTB Vigilante Comp 29x2.3"
Brakes
Brakes
Shimano MT420 / SMRT54M

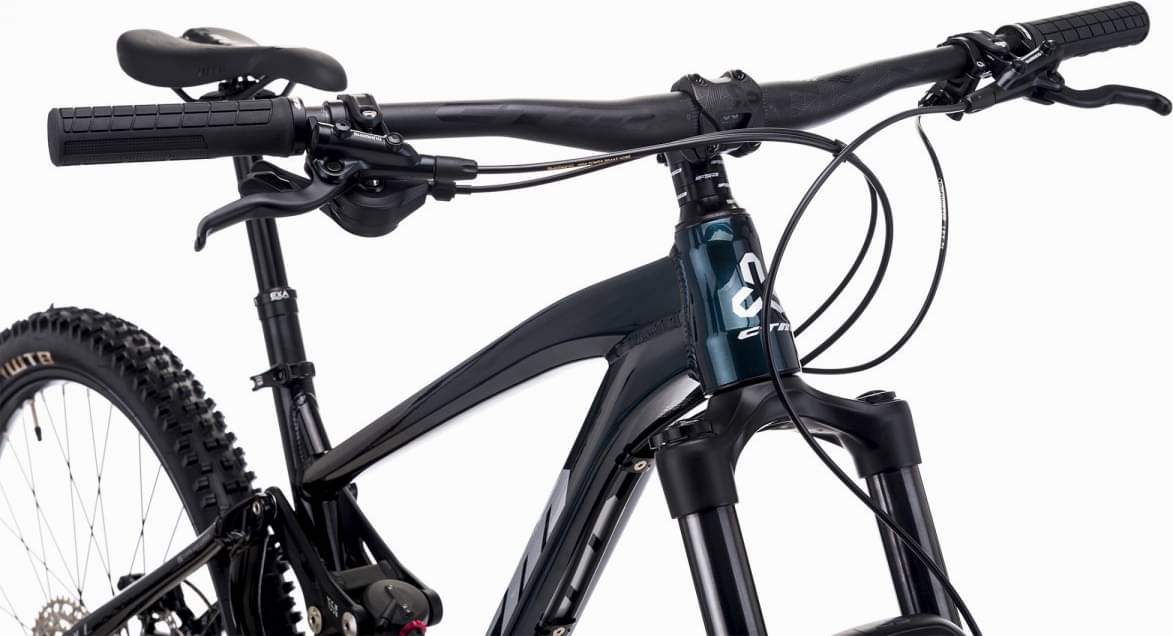

Cockpit
Stem
CTM ASM04 35 mm
Handlebar
CTM HB352, 35dia, 780mm
Headset
FSA Orbit 1.5
Seat

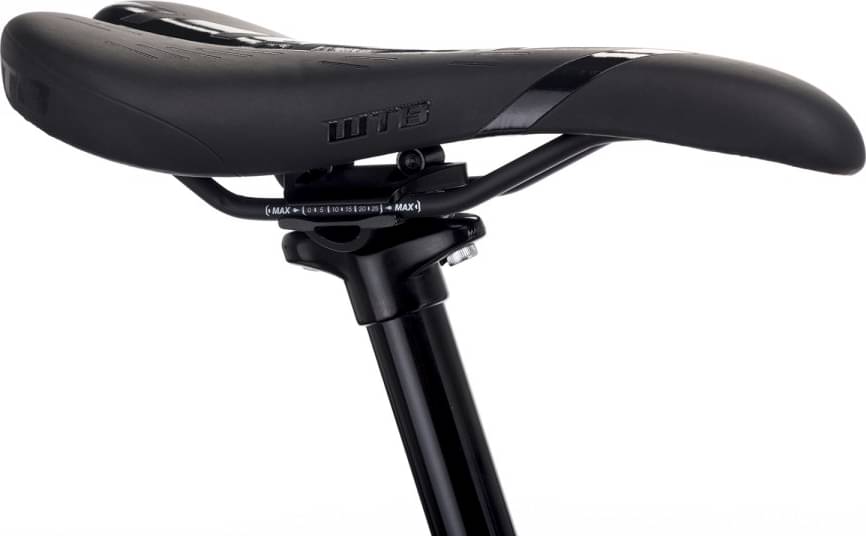

Saddle
WTB Volt
Seatpost
EXA Form KSP900 (M-125mm/L-150mm/XL-170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.27 mm | 1.24 mm |
| Front Center | 802 mm | 826 mm | 850 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Stack | 616 mm | 625 mm | 634 mm |
| Reach | 473 mm | 493 mm | 513 mm |
| Top Tube Length | 626 mm | 648 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1261 mm | 1285 mm | 1309 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
Model Overview

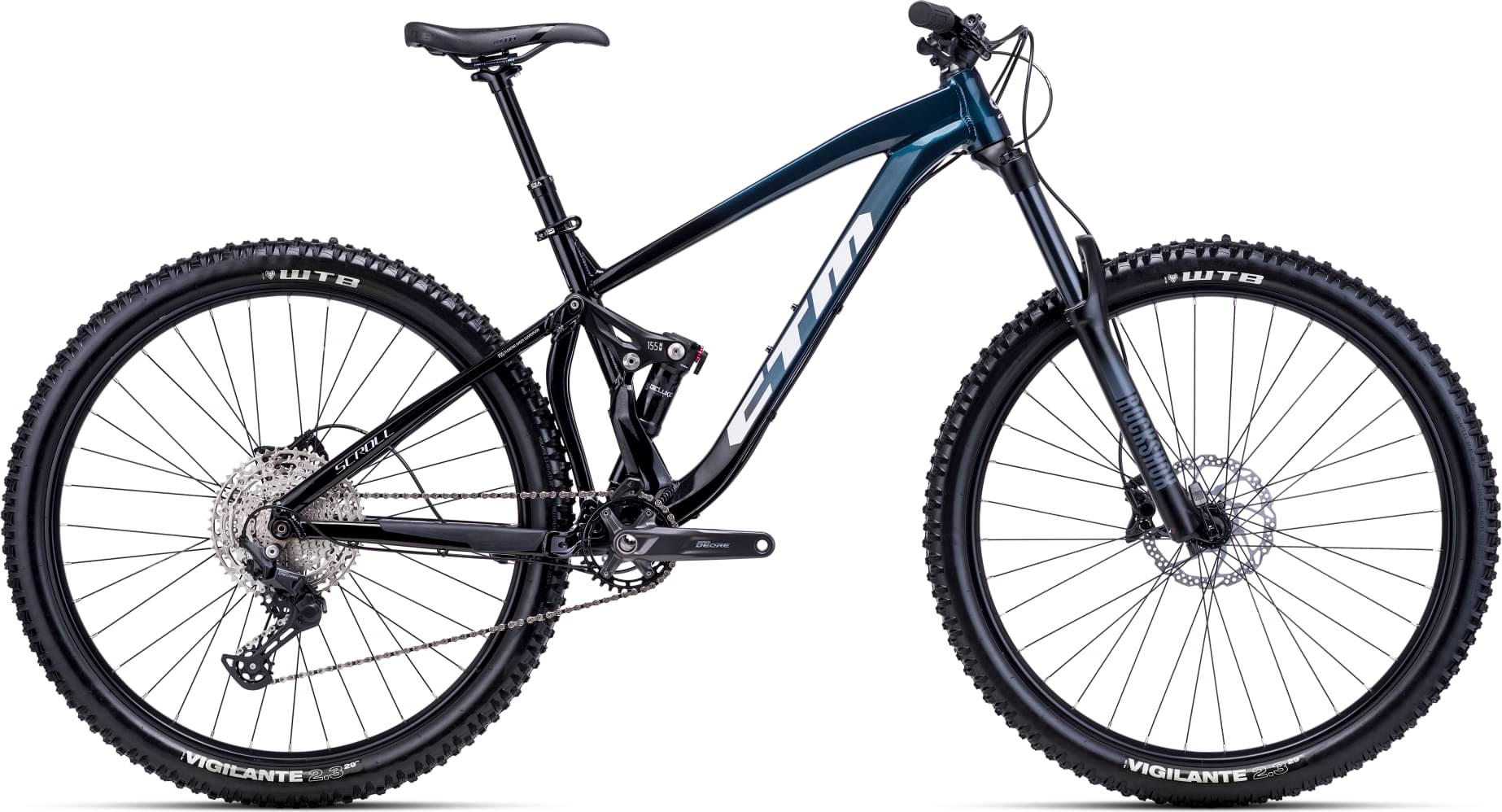

SCROLL belongs to the Ctm Scroll model. CTM released 17 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CTM SCROLL 2022 is the most affordable bike of this model and has a price of 2229$. On the other hand, CTM SCROLL PRO 2022, is the most expensive and costs 3715$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 2229$. In conclusion, this bike price is 61.46% smaller than the price of the average Enduro bike.
Overview of components

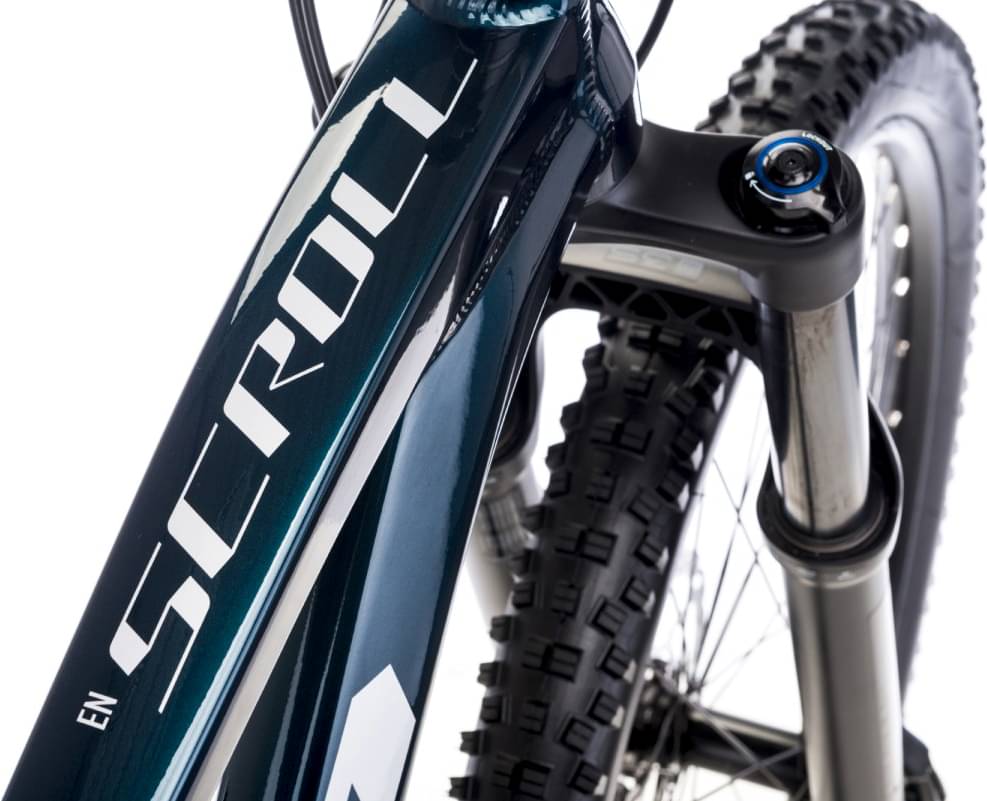

Fork
This bike has the RockShox 35 Silver fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.

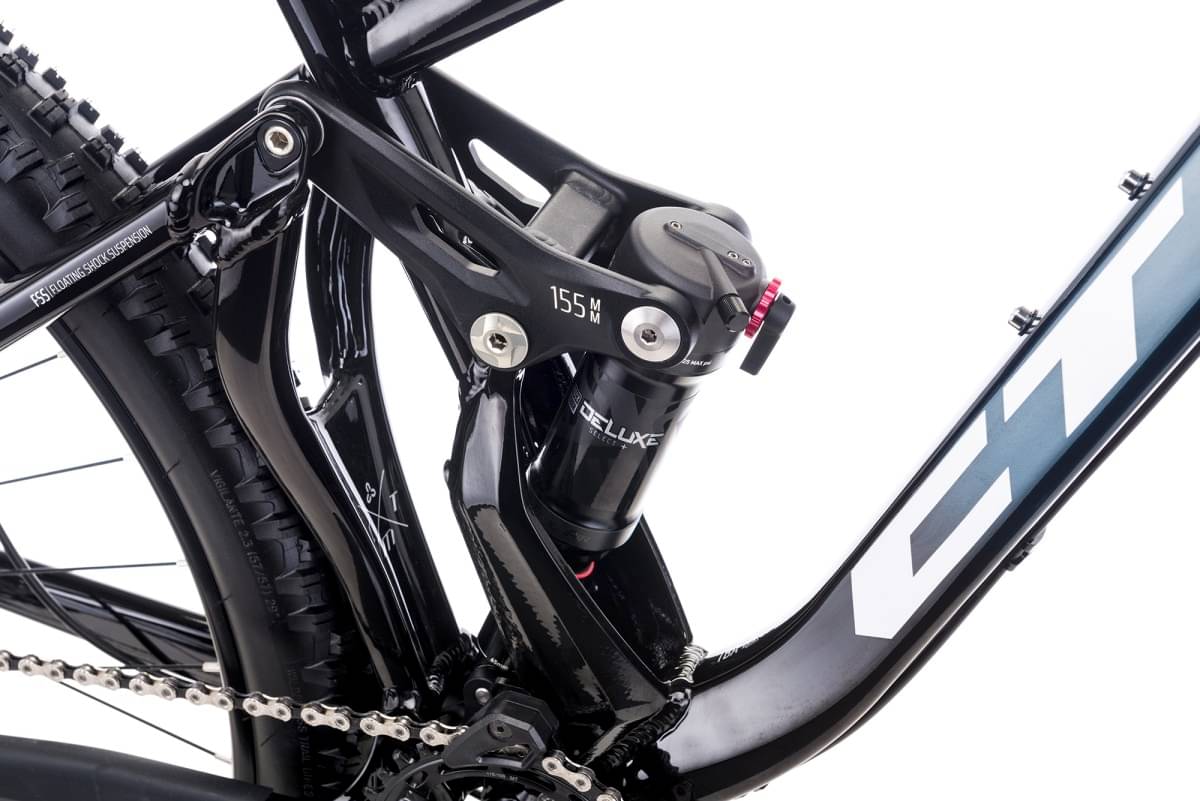

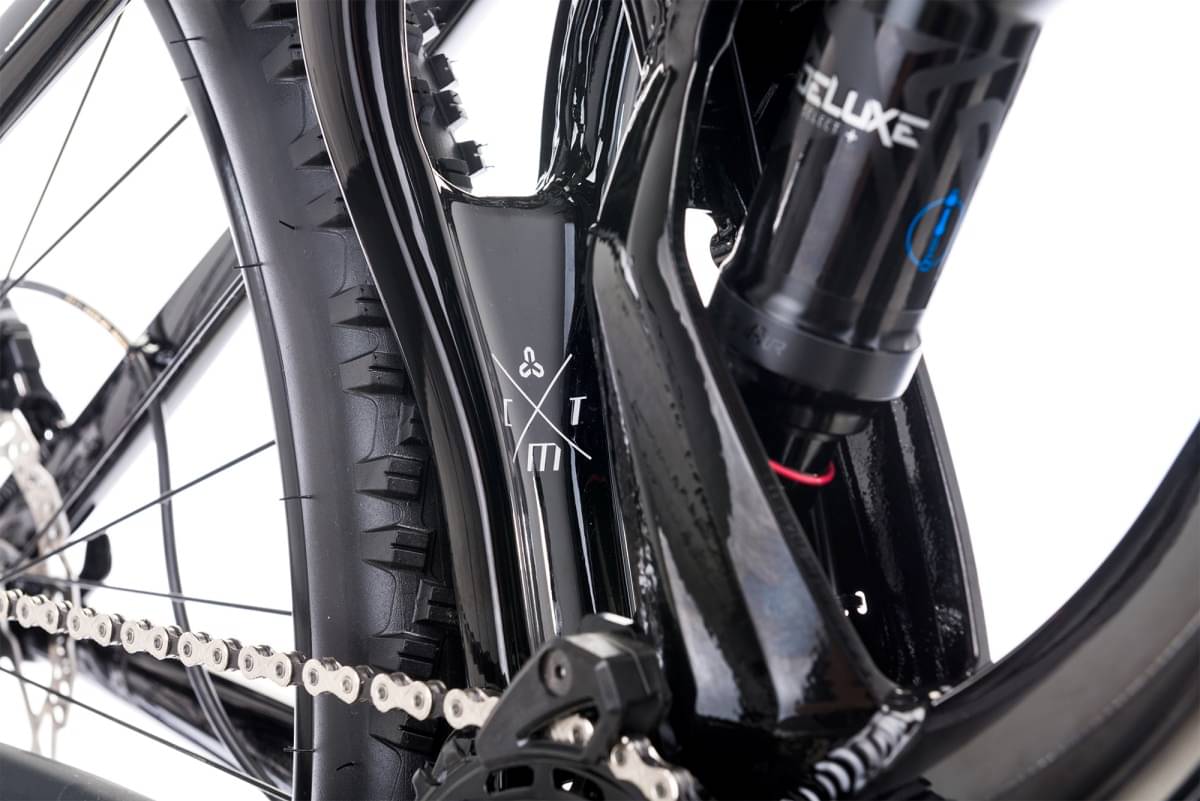

Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The SCROLL 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. CTM SCROLL is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
