Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 155mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, FSA -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

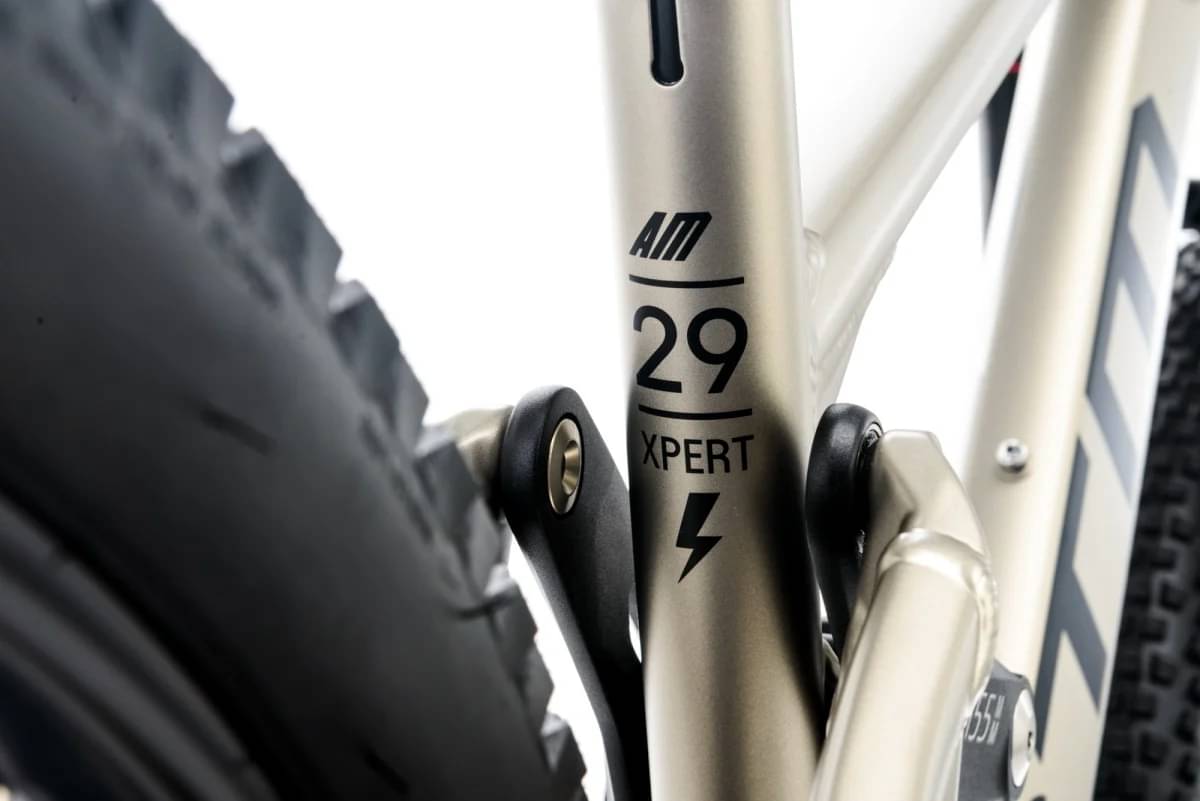

Frame
Frame
ALU 6061, rear travel 155 mm, MD, LG, XL
Suspension Fork
Rock Shox 35 GOLD RL, DebonAir, 150mm, boost™ 15x110axle
Drivetrain

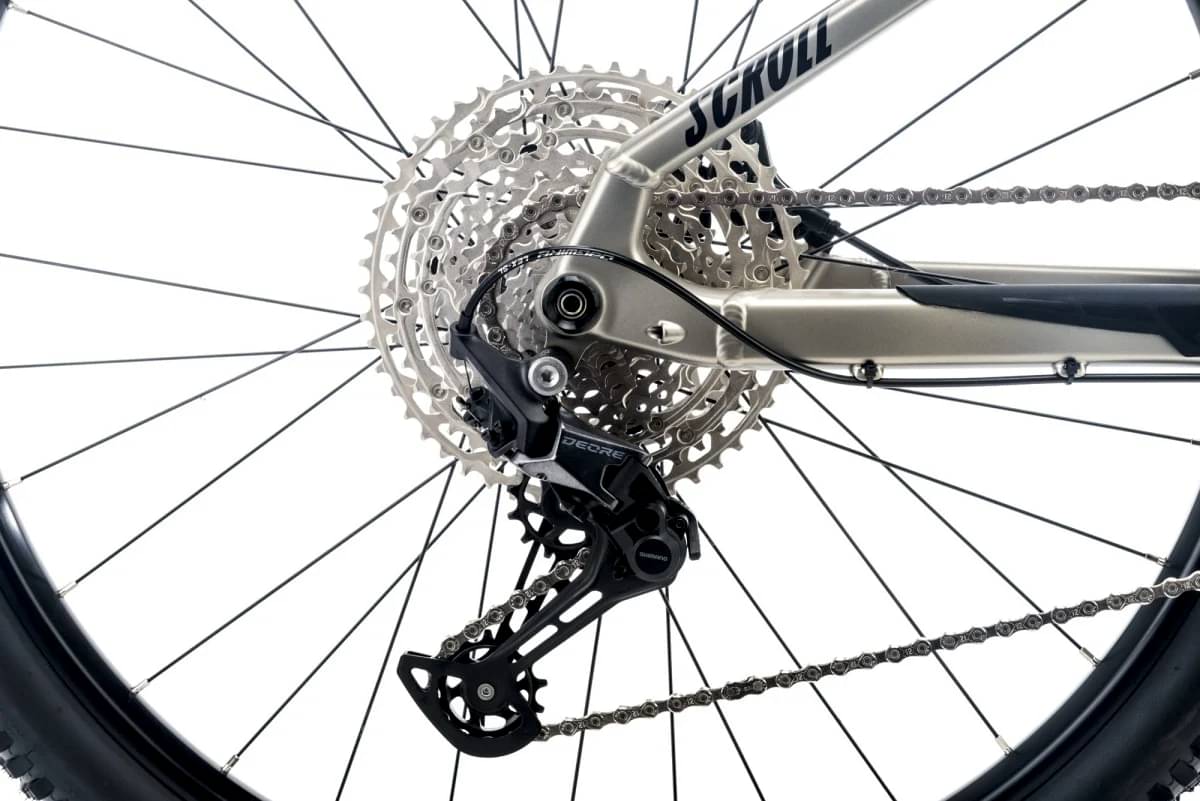

Rear Derailleur
Shimano Deore RD-M6100
Shift Levers
Shimano Deore SL-M6100-12sp.

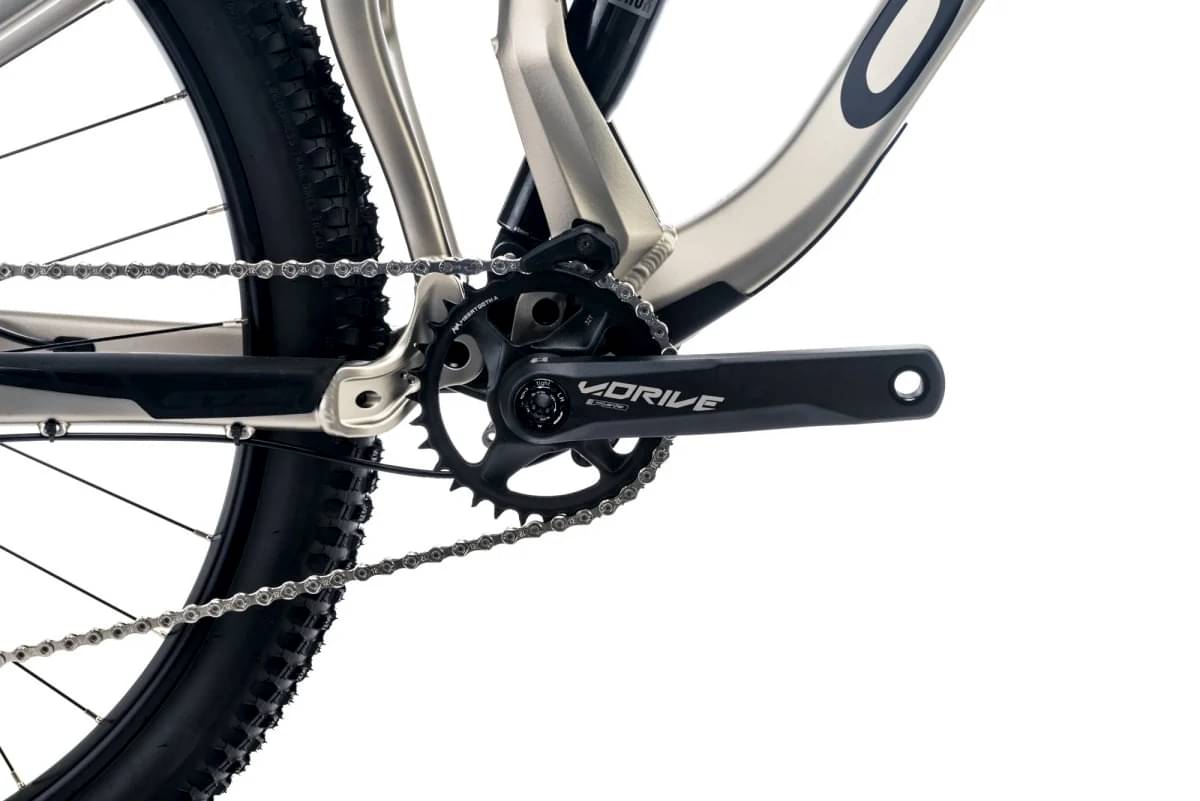

Crank
FSA V-Drive, 32T, 170mm
Chain
Shimano CN 6100 118L
Pedals
HT-PA12
Wheels
Rear Hub
Shimano MT400 / MT410 boost / 32H
Rims
WTB ST i29 TCS 2.0 29" 32H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
Shimano MT420 / SMRT64M

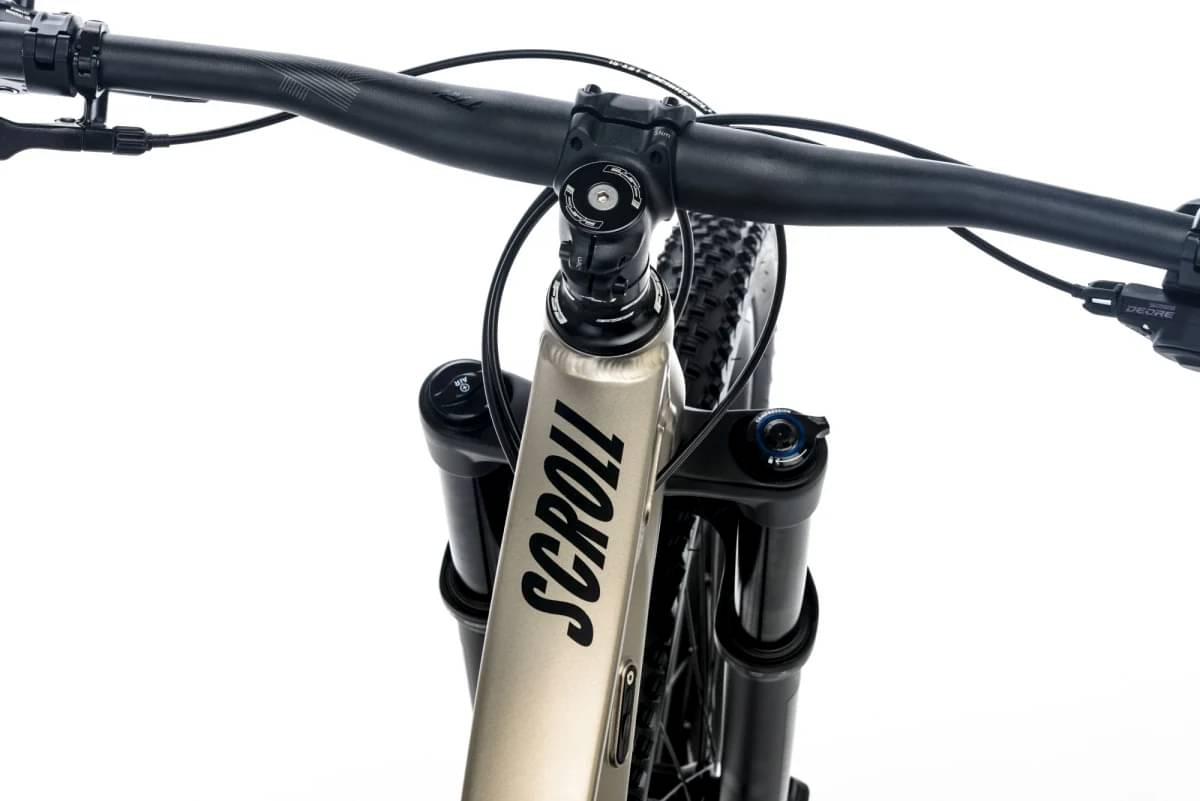

Cockpit
Stem
CTM ASM04 35 mm
Handlebar
CTM rise bar, 35dia, 780mm

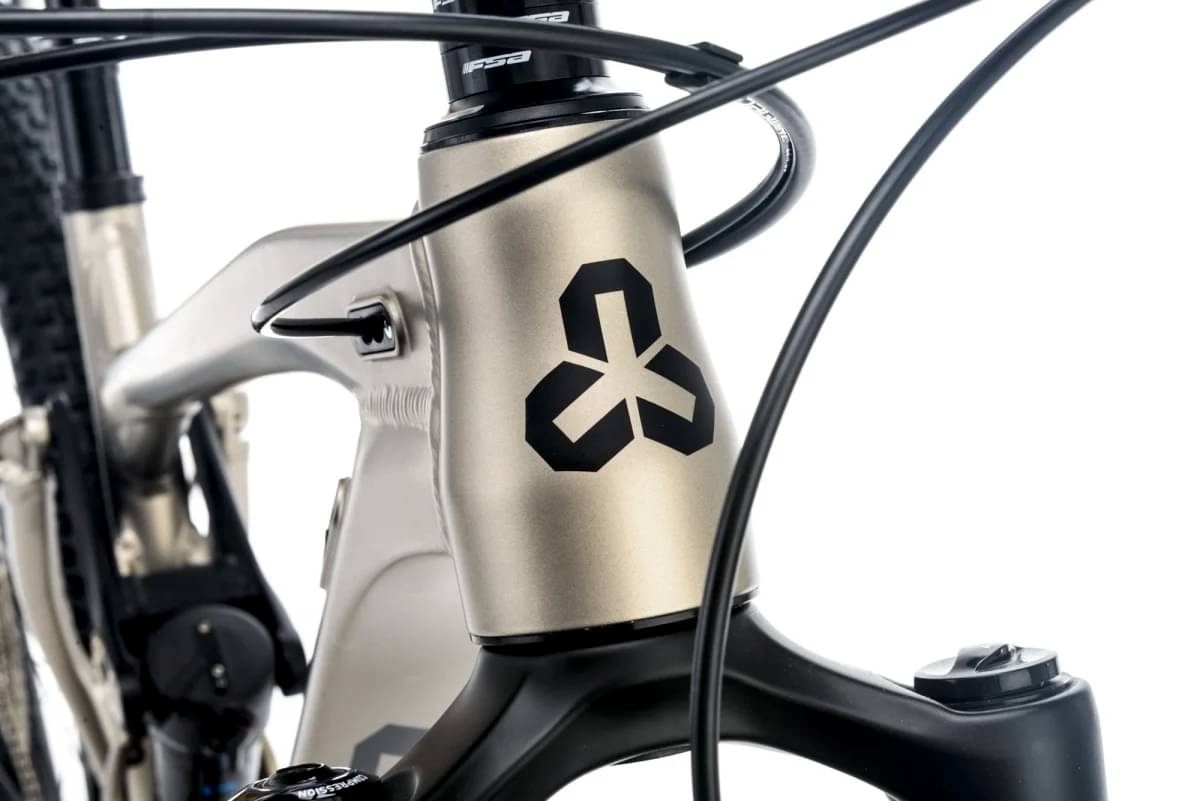

Headset
FSA Orbit 1.5
Seat
Saddle
WTB Volt
Seatpost
KS RAGEi (M-125mm/L-150mm/XL-170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.27 mm | 1.24 mm |
| Front Center | 802 mm | 826 mm | 850 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Stack | 616 mm | 625 mm | 634 mm |
| Reach | 473 mm | 493 mm | 513 mm |
| Top Tube Length | 626 mm | 648 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1261 mm | 1285 mm | 1309 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
About this model

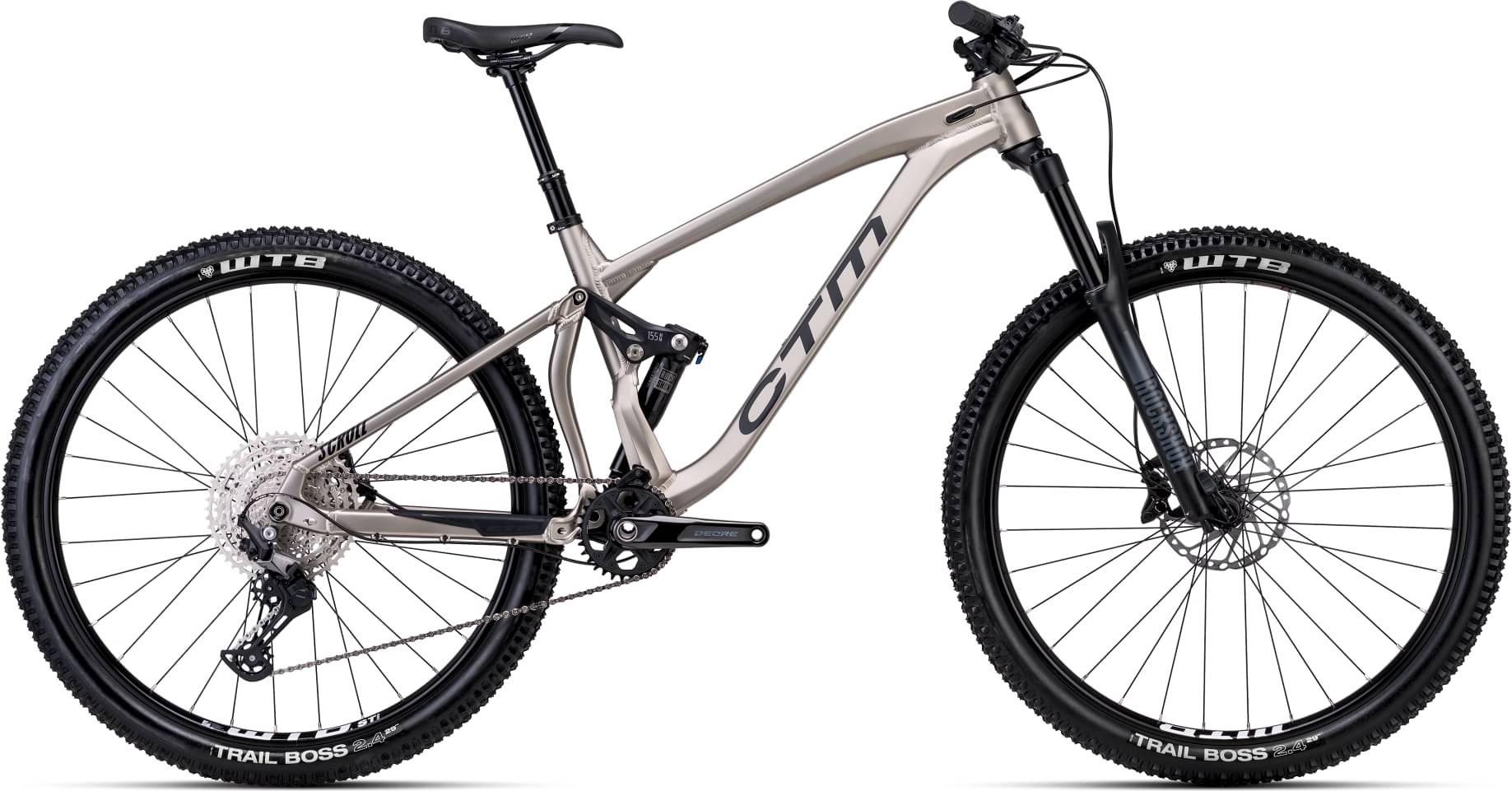

SCROLL AM Xpert belongs to the Ctm Scroll model. CTM launched 17 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
CTM SCROLL 2023 is the most affordable bike of this model and has a price of 2547$. On the other hand, CTM SCROLL AM Pro 2023, is the most expensive and costs 4246$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2760$. If we compare this with the average Enduro bike cost we notice that the price is 30.4% lower.
Overview of components

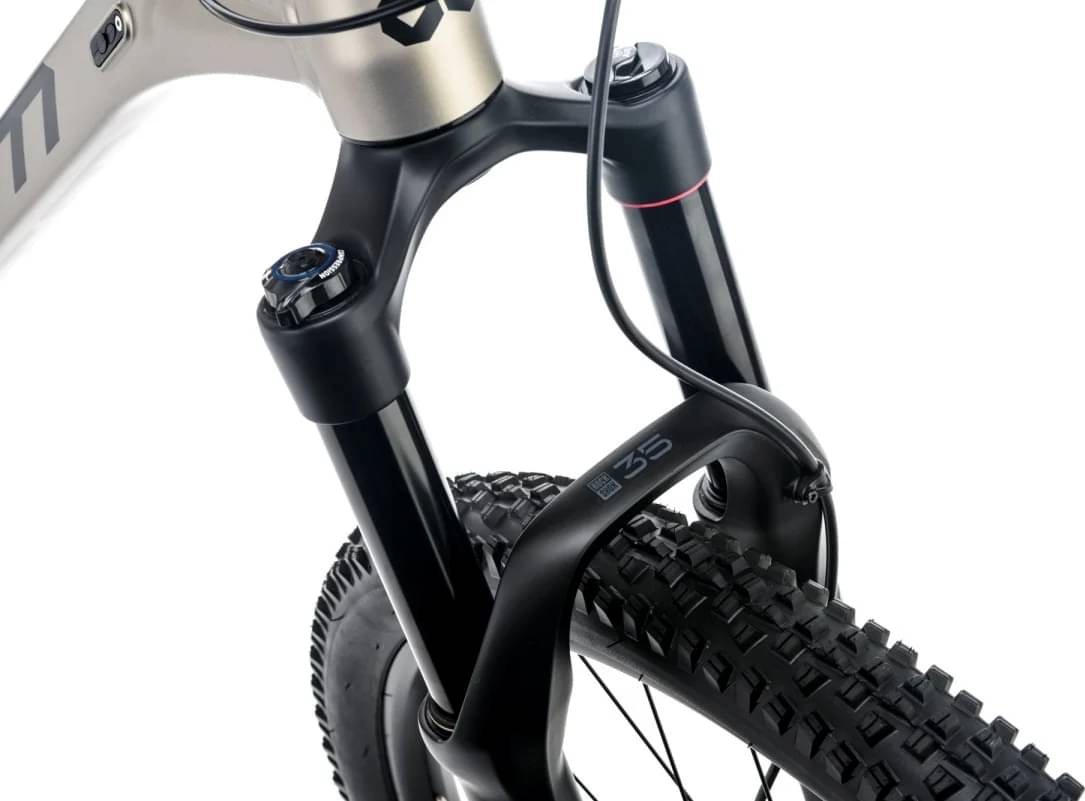

Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.

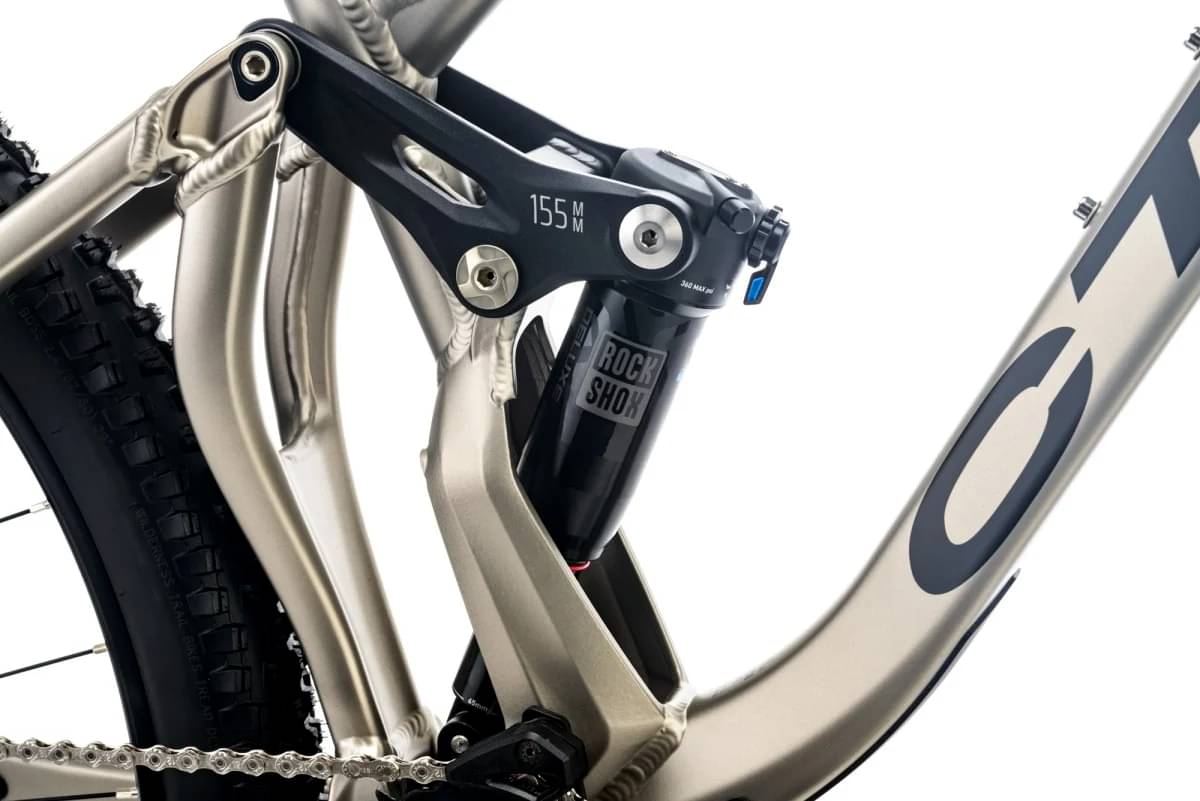

Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The SCROLL AM Xpert 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.

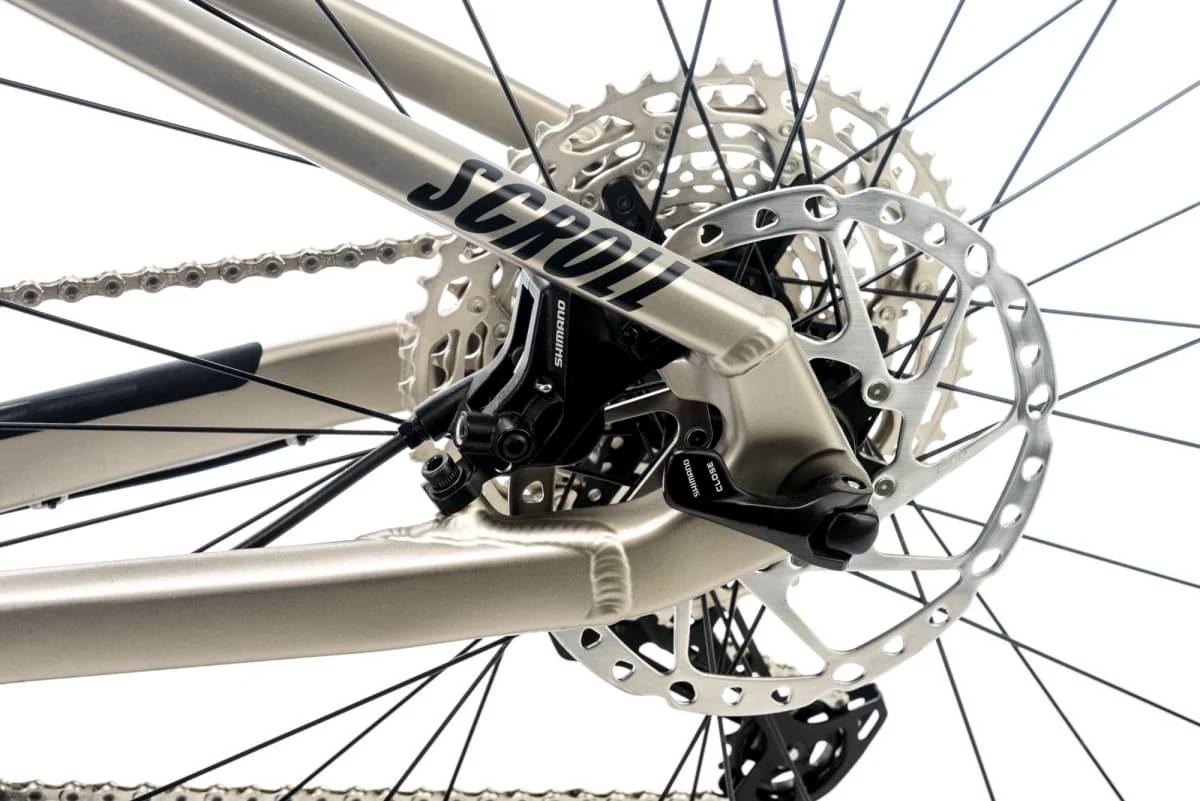

Brakes
For your safety, it is important to have quality breaks on your bike. CTM SCROLL AM Xpert has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the SCROLL AM Xpert. Therefore, climbing or descending will be a breeze.
